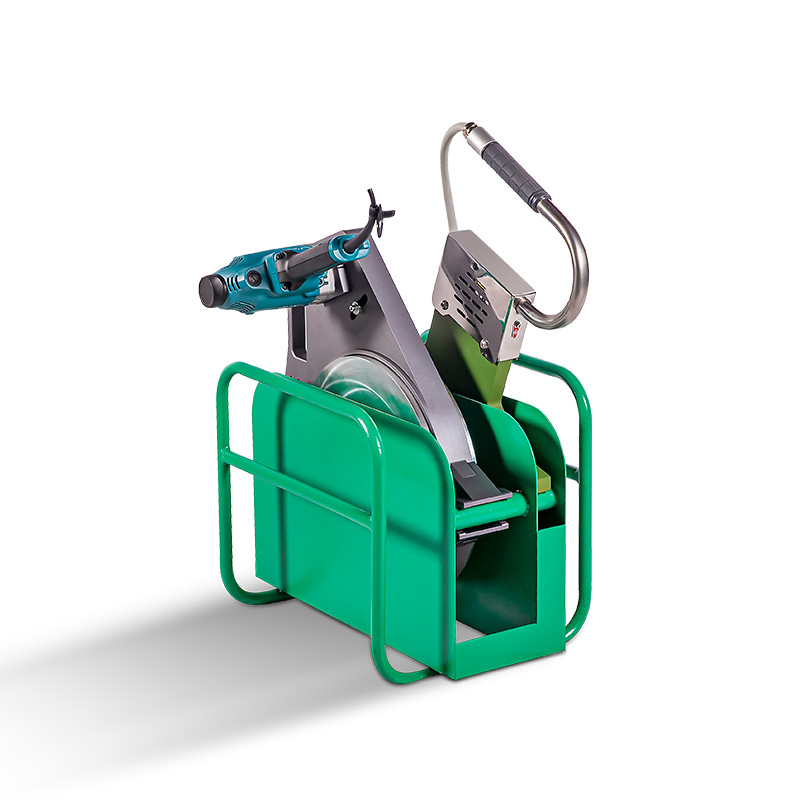

Pipe Fusion Machine V355 CNC
group nameAutomatic Butt Fusion Machine
-
Min Order1 piece
brand nameWeissenberg
modelV355 CNC
payment methodT/T, L/C, PayPal, Cash
-
update timeSat, 06 Dec 2025 04:45:30 GMT
Paramtents
Welding Range in mm 90-355mm
Welding Range in inch 3" - 14" IPS
Power Supply 220V±10%, 50/60HZ
Standard Applied ISO21307, DVS2207 etc
Certificate CE, ISO9001
Tempreture Range MAX. 320 ºC
Working Pressure Range 0 - 80 BAR
Packging & Delivery
Min Order1 piece
Briefing
V355 CNC | The RIYANG V355 CNC welds PE, PP, PPR, and PVDF pipes and fittings with durable components for low maintenance and reliable operation.
Detailed
Detail Information
Pipe Fusion Machine V355 CNC Introduction
The RIYANG CNC2.0 is a high-precision automatic butt fusion machine powered by Siemens PLC, built to ISO 12176-1 and EU Machinery Directive 2006/42/EC standards. It supports major welding standards (DVS, ISO, ASTM) with customizable settings and stores up to 10,000 weld logs. Real-time alerts ensure welding accuracy by monitoring voltage, temperature, and pressure. Parameters can be adjusted based on material and environment, and weld data can be exported via USB or printed for traceability. Backed by a 2-year industry-leading warranty.
Pipe Fusion Machine V355 CNC Features
Pipe Fusion Machine V355 CNC Technical Parameters
| Product model | V355 CNC |
| Welding Range O.D. | 90-355mm |
Welding Range Inch | 3" - 14" IPS |
Heater Power | 3.0 KW |
Trimmer Power | 1.5 KW |
Pump Power | 0.75 KW |
Working Pressure Range | 0 - 80 BAR |
| Power supply | 220V±10%, 50/60HZ |
| Gross Weight | 259 KGS |
Packing Material | Plywood Box |
Max. HeatingTemperature | 320°C |
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
File Downloads
For more product related parameter files, please contact us.
