Pipe Fusion Machine V630 CNC20
group nameAutomatic Butt Fusion Machine
-
Min Order1 bag
brand nameWeissenberg
modelV630 CNC20
payment methodT/T, L/C, PayPal, Cash
-
update timeSat, 15 Aug 2026 02:29:43 GMT
Paramtents
Welding Range in mm 315-630mm
Welding Range in inch 12" - 24" IPS
Power Supply 380V±10%, 50/60HZ
Standard Applied ISO21307, DVS2207 etc
Certificate CE, ISO9001
Temperature Range MAX. 280 ºC
Working Pressure Range 0 - 120 BAR
Manufacturer & Logo Riyang
Packging & Delivery
Min Order1 bag
Briefing
V630 CNC20 | Automatic butt fusion for PE/PP/PPR/PVDF pipes 315-630mm, Siemens PLC.
Detailed
Detail Information
Pipe Fusion Machine V630 CNC20 Introduction
Designed for large-diameter pipe welding, the RIYANG CNC2.0 combines Siemens PLC precision with robust construction for 315–630mm applications. Meeting ISO 12176-1 and EU Machinery Directive 2006/42/EC requirements, it supports DVS, ISO, and ASTM standards with flexible parameter settings. The onboard data system records up to 10,000 joint histories, while real-time voltage, temperature, and pressure alerts maintain weld integrity across demanding conditions. All parameters adapt to pipe material and field environment, and complete weld reports are available via USB export or direct printing for project traceability. Includes a 2-year industry-leading warranty.
Pipe Fusion Machine V630 CNC Features

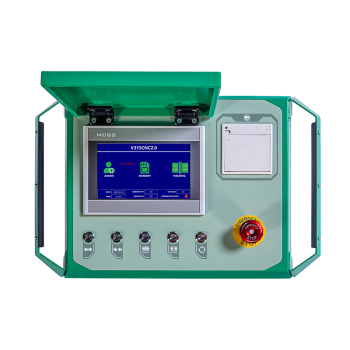

Versatile Control Box
One control box is compatible with machine models 450,500 and 630, enabling significant cost savings for users. It also allows for easy upgrades from manual to automatic configurations.
Integrated User Interface
Features a unified control panel with push-buttons and a touch screen for efficient operation and clear status monitoring.
Obtain Drag Pressure with One Click
Achieve precise drag pressure effortlessly with a single click, streamlining the welding process and improving operational efficiency.
Pipe Fusion Machine V630 CNC20 Technical Parameters
| Product model | V630 CNC20 |
| Welding Range O.D. | 315-630mm |
Welding Range Inch | 12" - 24" IPS |
Heater Power | 9.3 KW |
Trimmer Power | 1.5 KW |
Pump Power | 1.5 KW |
Working Pressure Range | 0 - 120 BAR |
| Power supply | 380V±10%, 50/60HZ |
| Gross Weight | 739 KG |
Packing Material | Plywood Box |
Max. HeatingTemperature | 280°C |
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
File Downloads
For more product related parameter files, please contact us.
