Rail Grinding Wheel MRC-L260090 High-Precision for Harsco PGM-48/96
group nameRailway Grinding Wheel
-
Min Order1 piece
brand nameRailway Maintenance Equipment & Solutions
modelMRC-L260090
payment methodT/T, L/C, D/P D/A
-
update timeMon, 06 Apr 2026 15:18:49 GMT
Paramtents
Category Rail Grinder
Process Hot Pressing
Materials luminum Matrix+ Zirconia+ Glass Fiber
Hardness-Material Identification Z/A F16Y5B
Granularity 16 Grit
Packaging Wooden Case
Certification ISO
Business Model Customization
Heavy Haul Railway Axle Load Capacity ≥ 30t
Packging & Delivery
Min Order1 piece
Briefing
Model: 260×90×154mm
Gross Weight: 9.82 kg
Packing Dimensions: 300×100×180 mm
Compatible With: HARSCO PGM48/96
Hot Press | ZA
Gross Weight: 9.82 kg
Packing Dimensions: 300×100×180 mm
Compatible With: HARSCO PGM48/96
Hot Press | ZA
Detailed

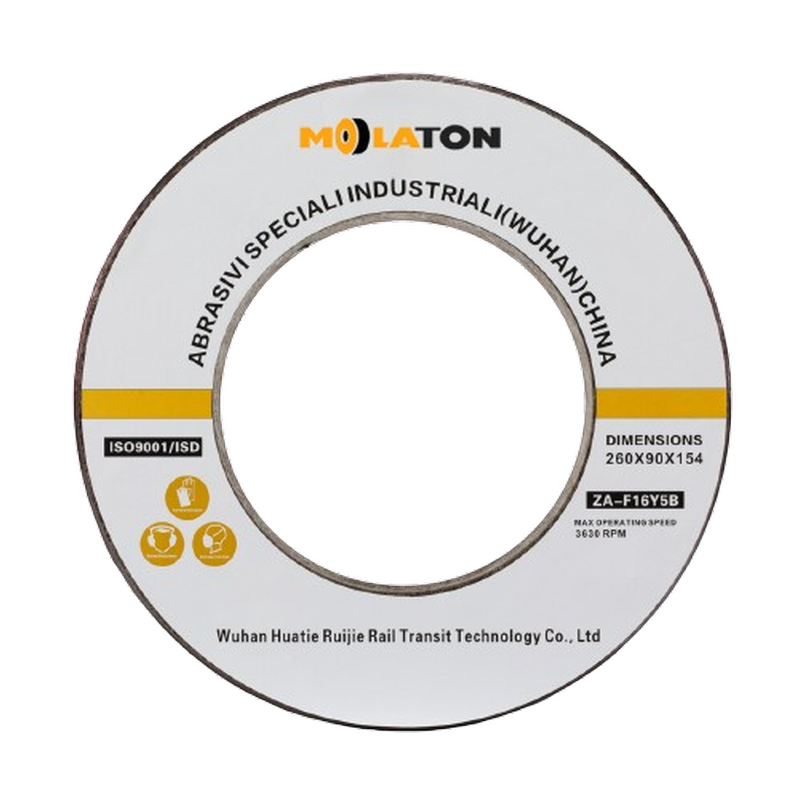

Molaton RailCare-L260090 Rail Grinding Wheel Product Description
Molaton RailCare-L260090: Optimized for Heavy-Duty Rail Grinding
The Molaton RailCare-L260090 is a high-performance grinding wheel, specifically engineered for heavy-duty rail maintenance. Designed as a direct replacement for OEM wheels on Harsco PGM48 and PGM96C grinding vehicles, it features a zirconia-resin abrasive matrix reinforced with glass fiber, ensuring extended service life and precise rail head profiling under demanding conditions.
Molaton RailCare-L260090 Rail Grinding Wheel Specifications
| ||
| Parameter | Value | |
| OD×Thickness×Bore | 260×90×154mm | |
| Gross Weight | 9 kg | |
| Max Speed | 50 m/s | |
Abrasive | Zirconia Alumina (ZA) | |
Bond | Resin, Glass Fiber Reinforced | |
Compatible Systems | Harsco PGM48/96C,
CRRC Baoji GMC-48,
Jinying GMC-96 | |
Certified by Zhengzhou Third Institute of Abrasives and CARS Metallurgical & Chemical Institute; fully compliant with Chinese standards GB/T 2492-2017 (rotational strength), GB 2494-2014 (safety rules), JB/T 7992-2017 (surface defects), JB/T 11431-2020 (resin-bonded wheels), and railway-specific specification Q/CR 1-2014. Every batch dynamically balanced for safe operation up to 50 m/s | ||
Key Features & Benefits
✅ Precise Compatibility: Specifically engineered for Harsco PGM-48/PGM-96C grinding trains – plug-and-play compatibility
✅ High-Efficiency Cutting: Zirconia-alumina blend offers >30% higher material removal rate vs. conventional brown fused alumina
✅ Extended Service Life: Glass fiber reinforcement prevents fracture and extends service life, reducing downtime
✅ Safety & Reliability: ISO 9001-compliant production; every batch dynamically balanced for safe operation at 50 m/s
✅ Superior Defect Removal: Proven performance against corrugation, spalling, shelling, and RCF defects
✅ Eco-Efficient Operation: Low dust emission and energy-efficient grinding for sustainable rail maintenance
Molaton rail grinding wheel Product Applications
Frequently Asked Questions
Is Molaton RailCare-L260090 compatible with Loram machines?
No, this model is designed for Harsco and CRRC systems. For Loram, please see RailCare-L260083.
What is the maximum operating speed?
50 m/s (3,000 RPM). Always follow your machine manufacturer’s safety guidelines.
