Atomic Absorption Spectrophotometer CAAM-2001,High Stability,High Sensitivity
group nameCast Aluminum Alloy Enclosures (Cast Housings / Cast Shells)
-
Min Order1 piece
modelCAAM-2001
payment methodT/T
-
update timeWed, 23 Sep 2026 15:17:48 GMT
Paramtents
Atomicization Method Flame / Graphite Furnace
Optical System Quartz optical components
Nebulizer Glass / Alloy material
Wavelength Range 190–900 nm
Spectral Bandwidth 0.1 / 0.2 / 0.4 / 1.0 nm
Detection Limit ppm–ppb
Stability ≤0.003 Abs / 30 min
Software Built-in background correction & data processing
Packging & Delivery
Min Order1 piece
Briefing
High stability and high sensitivity atomic absorption spectrophotometer for trace metal analysis, supporting flame and graphite furnace methods.
Detailed

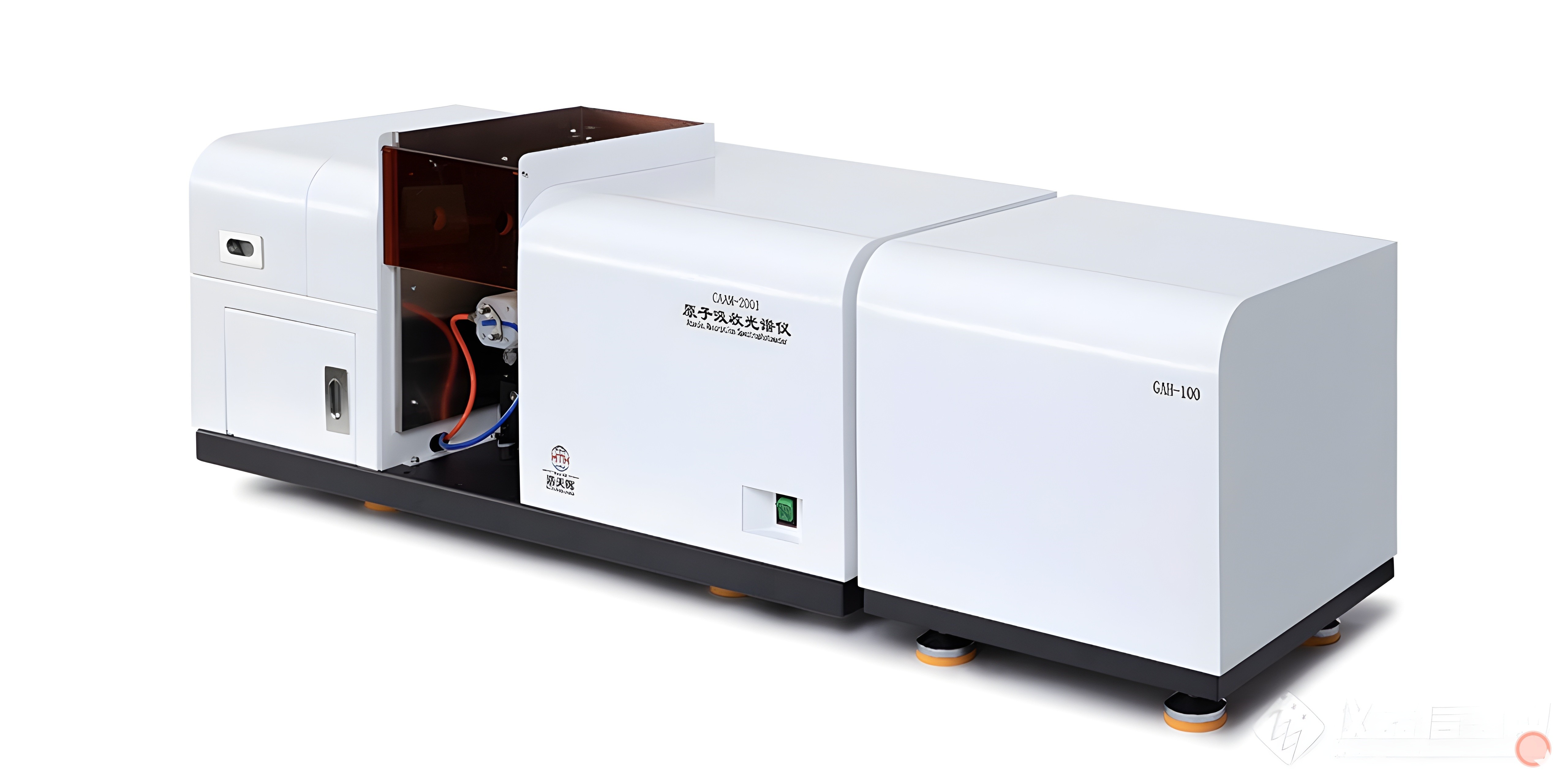

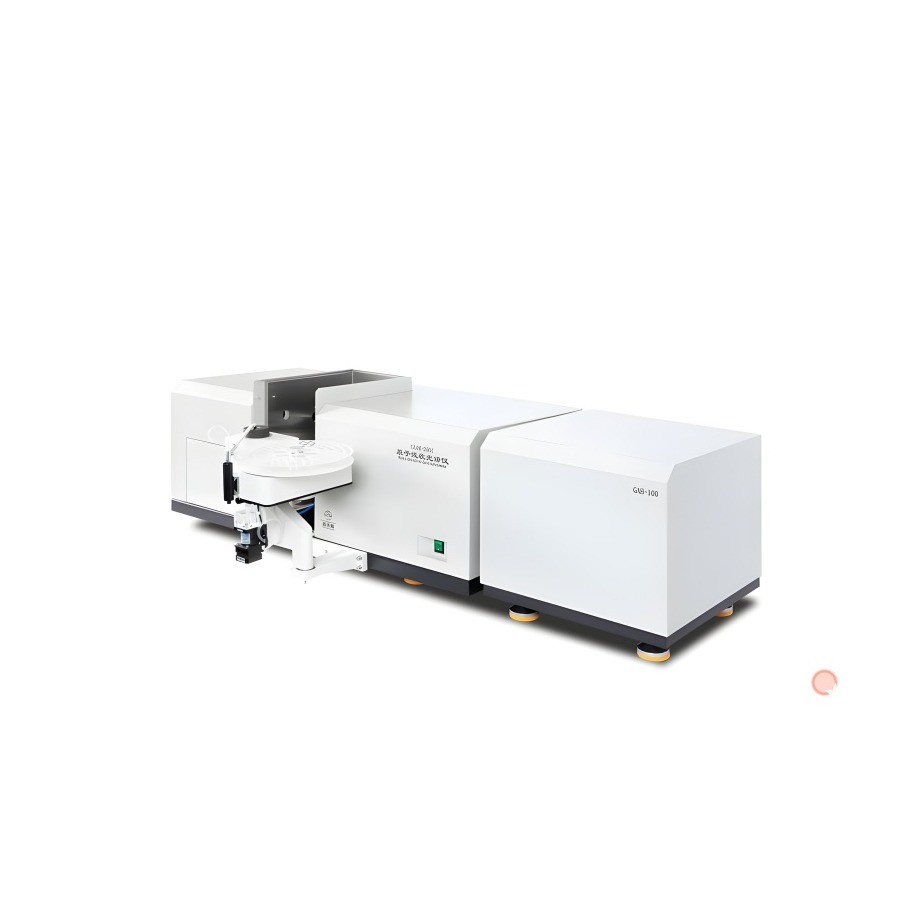

Product Overview – High Stability & High Sensitivity Atomic Absorption Spectrophotometer (CAAM-2001)
The CAAM-2001 Atomic Absorption Spectrophotometer is designed for high-precision trace metal analysis using flame and graphite furnace atomization. With excellent baseline stability (≤0.003 Abs/30 min) and high detection sensitivity (Cu ≥0.28 Abs at 1 μg/mL), it ensures accurate and repeatable results for ppm–ppb level element detection.
Core Features
High Stability
Optimized optical path design and quartz components ensure extremely low drift and high repeatability.
High Sensitivity
Graphite furnace and optimized optical bandwidth deliver ultra-low detection limits for heavy metals.
Extended Lamp Life (Up to 2×)
Lower lamp current (3–5 mA) dramatically reduces hollow cathode lamp consumption.
Graphite Furnace + Flame Integration
Automatic switching (H-type structure) enables fast method changing and boosts lab efficiency.
USB Connectivity
Compatible with modern computers and office systems.
Intuitive Software
High-accuracy data processing, automatic background correction, calibration curves, and result reporting.
Typical Applications
Heavy metal detection (Pb, Cd, Cu, Zn, Cr, Fe, Mg, etc.)
Water and soil elemental analysis
Food safety & dairy testing
Metallurgy & material research
Pharmaceutical and clinical laboratory analysis
Environmental monitoring stations
Third-party testing labs
University research labs
✔ 1. Industry-Leading Stability
Baseline stability ≤0.003 Abs / 30 min, ensuring noise reduction, better repeatability, and high-quality analytical performance.
✔ 2. Exceptional Sensitivity
Achieves 0.28 Abs with 1 μg/mL Cu, ideal for ultra-trace metal detection.
✔ 3. Lower Operating Cost
Low lamp current (3–5 mA) extends lamp lifespan by 50%, reducing annual consumable expenses.
Atomic Absorption Spectrophotometer
Product Specifications (Table)
| Category 类别 | Specification 规格说明 | |
| Optical System 光学系统 | Quartz components 石英组件 | |
| Frame Material 框架材料 | Stainless steel 不锈钢 | |
| Shell Material 外壳材料 | Anti-corrosion coated steel 抗腐蚀涂层钢 | |
| Nebulizer 雾化器 | Glass / Alloy 玻璃 / 合金 | |
Features 特点 | Auto background correction, auto sampling, report export 自动背景校正、自动采样、报告导出功能 | |
Interface 接口/界面 | USB | |
Applications 应用程序 | Environmental, Food, Metallurgy, Scientific Research 环境、食品、冶金、科学研究 | |
FAQ
Can CAAM-2001 detect heavy metals at ppb levels?
Yes. With graphite furnace mode and high sensitivity optics, detection limits reach ppb depending on the element.
Is the instrument suitable for environmental monitoring and water testing?
Absolutely. It is widely used for water quality, soil, wastewater, and environmental trace metal analysis.
