Magnetic Work Light | CRI 95+ | 3-in-1 Interchangeable Light Head

group nameCustom Portable Work Light
Min Order1 piece
brand nameOWLAMP Work Light | OEM & ODM Manufacturer
modelXS-W0033
payment methodT/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
update timeTue, 14 Jul 2026 22:19:07 GMT

contact supplier

Paramtents

Light Source LED + COB
Brightness 1500 | 1000 | 500 | 100 Lumens
CRI >95
Battery 2600mAh Li-ion
Runtime 0.5 | 2 | 4 | 10 H
Charging Time <2H
Waterproof Rating IP54
Impact Resistant Included
Certification CE, RoHS

Packging & Delivery

Min Order1 piece

Briefing

3-in-1 magnetic work light with CRI 95+ COB, 1500 lm LED, flexible head, USB-C charging, and aluminum body.

Detailed

MAGNETIC WORK LIGHT FOR PROFESSIONALS

This magnetic work light is designed for technicians who need flexible, accurate, and reliable lighting in changing work positions. Instead of working like a single-beam handheld lamp, XS-W0033 uses a 3-in-1 modular structure with a detachable flashlight head, a 180° rotatable light stick, and a detachable flexible tube head. This gives users different ways to reach narrow spaces, inspect close-range details, and keep light directed where the eyes need it most. Its CRI 95+ COB output supports clearer surface judgment, while the 1500 lm LED mode provides strong brightness for dark repair areas.

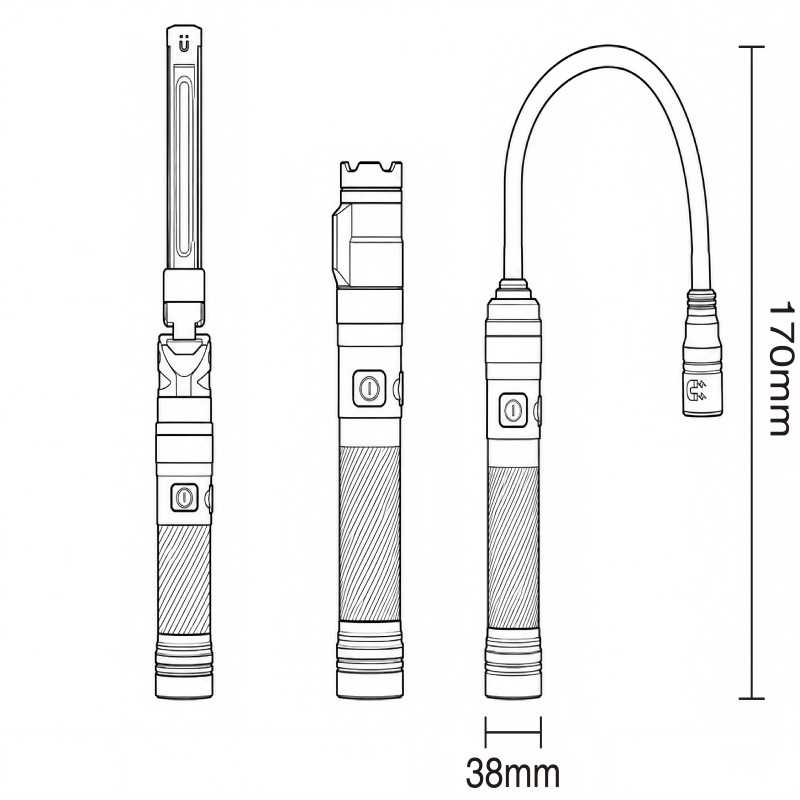

Dimension of flexible magnetic work light XS-W0033

LED MAGNETIC WORK LIGHT PARAMETER

Flashlight COB Lighting Mode	CRI	Luminous Flux (lm)	Runtime(H)
Super	>95	800	0.5
High	>95	500	3
Medium	>95	300	5
Low	>95	100	10

Foldable LED Lighting Mode	CRI	Luminous Flux (lm)	Runtime(H)
Super	/	1500	0.5
High	/	1000	2
Medium	/	500	4
Low	/	100	10

Neck LED Lighting Mode	CRI	Luminous Flux (lm)	Runtime(H)
Super	/	300	0.5
High	/	150	5
Medium	/	100	10
Low	/	50	15

REAL WORK SPACES THAT NEED MAGNETIC WORK LIGHTS

Automotive Engine Bay and Undercarriage Inspection

Engine bays, brake areas, suspension parts, and underbody structures often block overhead light and create strong shadows. Mechanics may need both hands for tools, wiring, clips, or fasteners. A LED magnetic work light can attach to suitable metal surfaces and keep the beam closer to the actual inspection point, reducing the need to hold a flashlight while working.

Electrical Cabinet and Equipment Maintenance

Cabinets, machines, control panels, and internal wiring areas are usually narrow and deep. A straight lamp cannot always send light into the correct angle, and a loose flashlight may roll away from the workbench. The detachable flexible tube head helps guide light into restricted areas, making it easier to check terminals, labels, connectors, and small parts.

Workshop Bench and Mobile Repair Tasks

Bench repair, mobile service, and temporary workstations need a light that can move quickly between different tasks. Fixed lamps are not always available, and ordinary portable lights may not offer enough mounting options. A modular magnetic inspection light gives users more ways to stand, attach, hang, or angle the light during daily repair work.

EVERY FEATURE OF RMAGNETIC WORK LIGHT TURNS INTO PRACTICAL VALUE

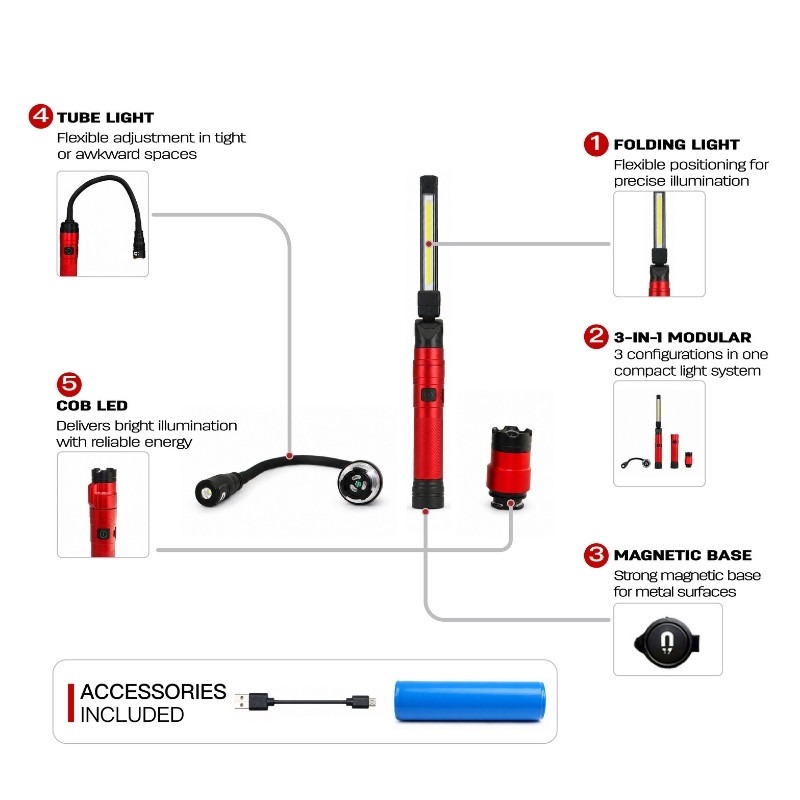

COB magnetic work light exploded view diagram

It keeps the light closer to the actual inspection point:

● Magnetic base: attaches to suitable metal surfaces for hands-free

● 180° rotatable light stick: adjusts the beam toward changing work angles

It reaches places that straight lamps cannot handle well:

● Detachable flexible tube head: guides light into narrow or curved spaces

● Compact modular body: switches between flashlight, stick, and flexible setups

It helps users judge details instead of only lighting the area:

● CRI 95+ COB: supports surface, color, and repair mark recognition

● 1500 lm LED output: provides strong brightness for dark repair zones

It is built for regular professional tool use:

● Aluminium alloy housing: improves durability and heat handling

● IP54 and 1.5m drop resistance: supports common garage and maintenance environments

BUYING GUIDANCE OF MAGNETIC WORK LIGHT FOR CAR

Owlamp supports buyers who need differentiated magnetic work lights for repair, industrial, automotive, and e-commerce channels. XS-W0033 is suitable for private-label programs because its 3-in-1 modular structure, aluminium body, CRI 95+ COB output, 1500 lm LED mode, and USB-C charging are easy to demonstrate in product pages and retail content. OEM/ODM support can include logo, body color, packaging, accessories, manuals, and visual selling-point planning. With CE/RoHS information, sample evaluation, packing support, and production planning, buyers can reduce sourcing risk and build a stronger inspection lighting SKU.

QUESTIONS ABOUT MAGNETIC WORK LIGHT

Q1: What makes this magnetic work light different from a regular repair light?

This magnetic work light is different because it uses a 3-in-1 modular head design. Users can switch between a flashlight head, a 180° rotatable light stick, and a flexible tube head, making it more adaptable than a standard single-form repair light.

Q2: Is this LED magnetic work light bright enough for automotive repair?

Yes, this led magnetic work light is bright enough for dark repair areas. The LED mode reaches up to 1500 lm, while the COB mode provides up to 800 lm for close-range inspection and detail checking.

Q3: Can this magnetic work light for car inspection attach to vehicle surfaces?

Yes, this magnetic work light for car inspection can attach to suitable metal vehicle surfaces. The magnetic base helps users position the light near engine bays, underbody areas, or repair points, but the actual holding result depends on the metal surface condition and attachment angle.

Q4: Why is a flexible magnetic work light useful for electrical cabinet maintenance?

A flexible magnetic work light is useful because it can guide light into narrow cabinet spaces. The detachable flexible tube head helps users inspect wiring routes, terminals, labels, connectors, and recessed service points without relying only on overhead lighting.

Q5: Can Owlamp Customise this COB magnetic work light for private-label buyers?

Yes, Owlamp can customise this COB magnetic work light for private-label and OEM buyers. Logo, color, packaging, accessories, manuals, and product selling-point content can be discussed based on the target market, order plan, and brand positioning.
