FusingX FX1200 Hydraulic Butt Fusion Welding Machine 630–1200mm for HDPE Pipe Welding
group nameFX-Butt Fusion Welding Machine
-
Min Order1 piece
brand nameFusingX
modelFX1200
payment methodT/T, L/C, MoneyGram, Credit Card, PayPal, Westem Union
-
update timeWed, 20 May 2026 08:30:58 GMT
Paramtents
OEM&ODM Support
Welding Range 630–1200mm
Frame Steel welded, reinforced structure
Hydraulic Unit Integrated hydraulic & electrical system
Heating Plate Cast aluminum, PEFT coating, ±7ºC control
Facer Gear transmission, HSS blades, copper motor
Power Supply Aviation plug, heavy-duty power cord
Portability Handles & wheels, compact enclosure
Packging & Delivery
Min Order1 piece
Briefing
The FusingX FX1200 is built for 630–1200mm HDPE pipe butt fusion. Its reinforced frame, stable hydraulic control, wide aluminum inserts, anti-slip pads, heavy-duty facer, and FX-level heating plate help improve pipe holding, facing stability, and welding reliability in large-diameter pipe projects.
Detailed
FX1200 Butt Fusion Machine — Fusion with Excellence
（Precision · Intelligence · Excellence）

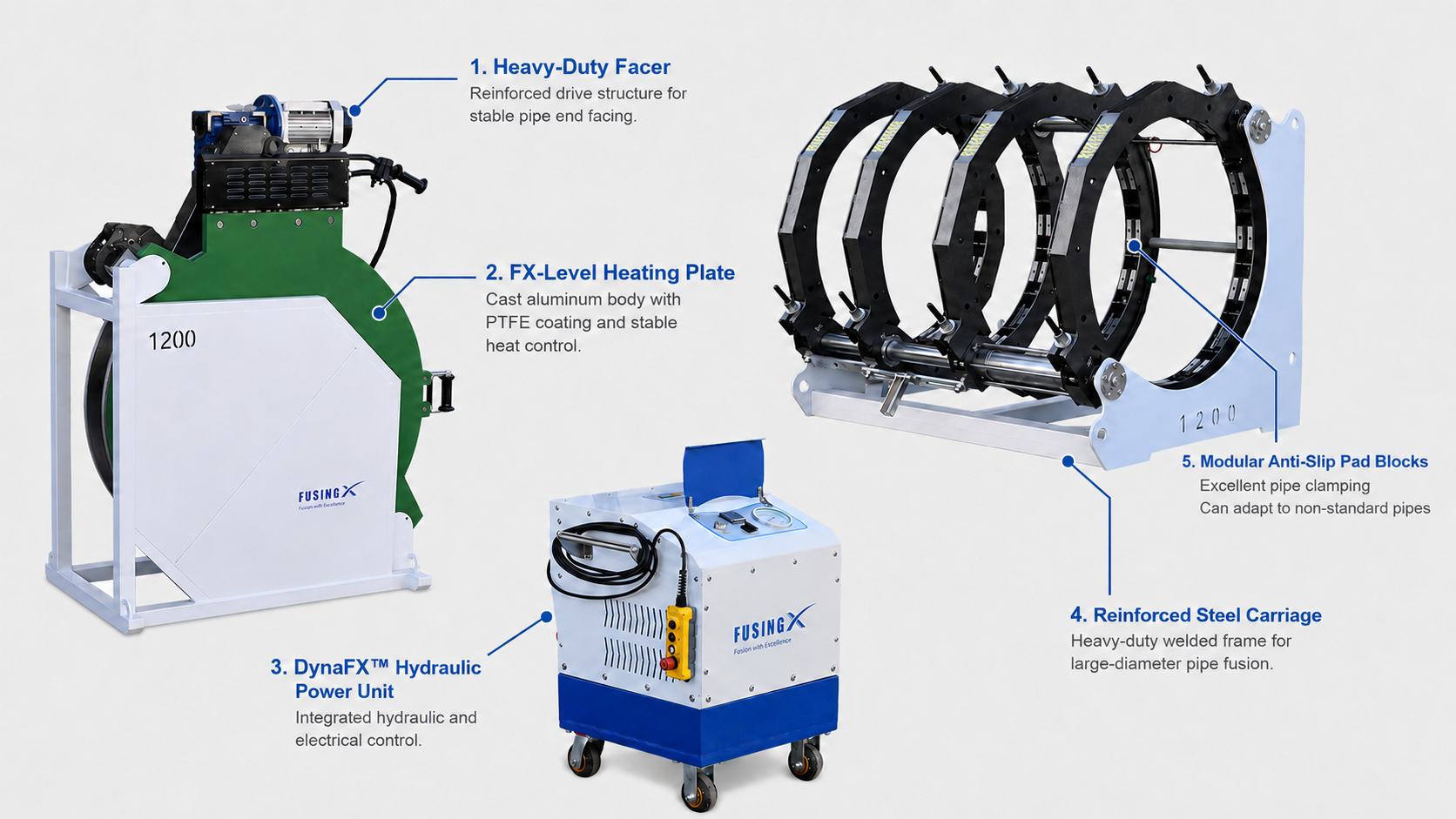

Key Highlights
· Robust Frame: Reinforced steel welded carriage with thickened side plates for stable large-diameter pipe fusion
· DynaFX™ HPU: Integrated hydraulic and electrical control with enclosed design for efficient and convenient operation
· Precision Heating Plate: Cast aluminum heating plate with PTFE coating and stable temperature control
· Heavy-Duty Facer: Reinforced chain drive with self-tensioning design, copper motor, and HSS double-edge blades
· Die-Cast Clamp Inserts: Quarter-circle die-cast aluminum inserts with widened contact surface for stable pipe holding
· Adjustable Anti-Slip Pads: Increase contact area and can be adjusted to fit pipes slightly smaller than standard size

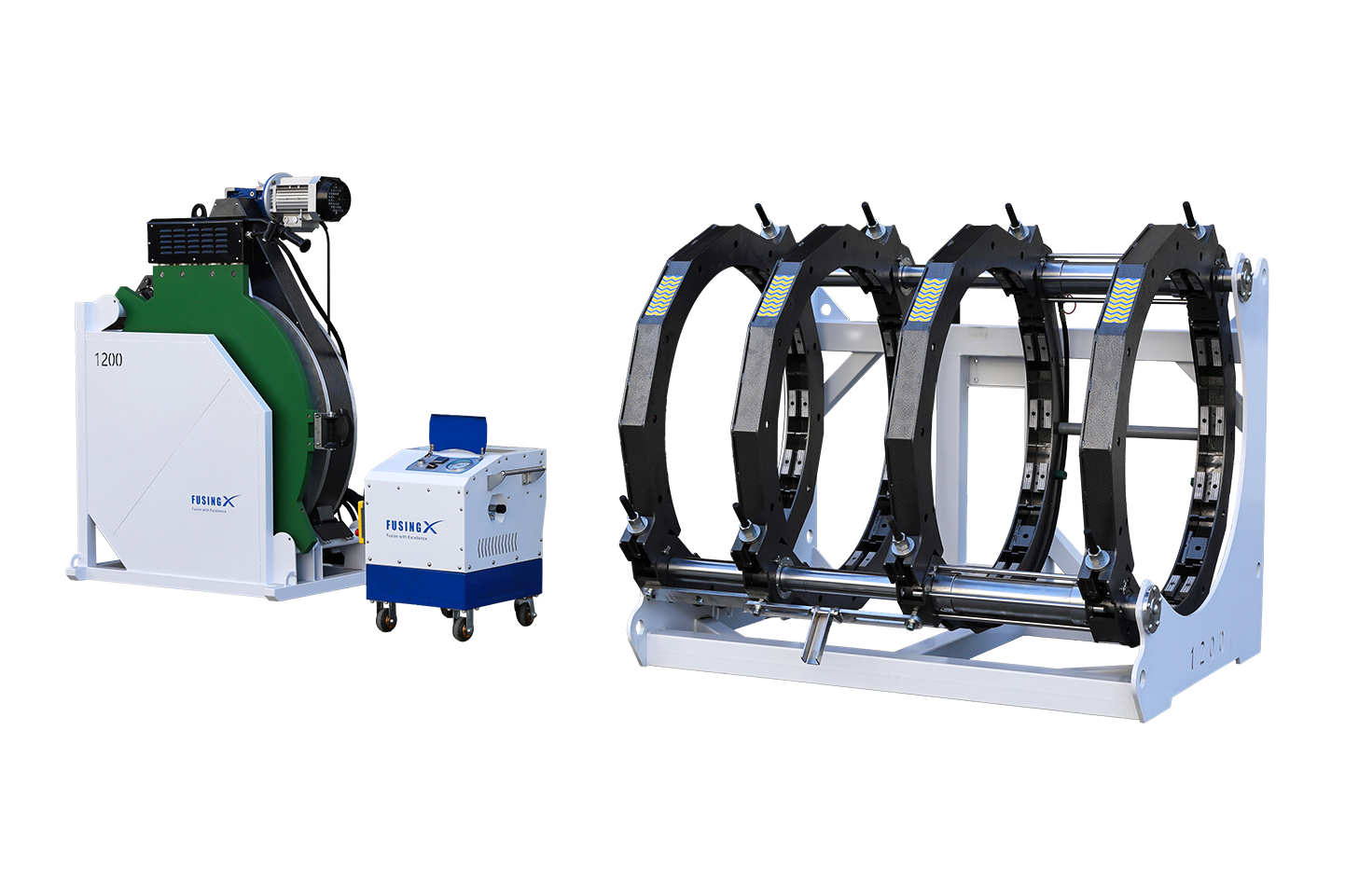

Product Overview
The FX1200 is a semi-automatic butt fusion machine designed for HDPE pipe welding from 630mm to 1200mm. Built with a reinforced steel carriage, DynaFX™ hydraulic power unit, FX-level heating plate, and heavy-duty facer, it is designed to deliver stable clamping, reliable facing, and consistent heating in large-diameter pipe fusion projects. Standard die-cast aluminum inserts and adjustable anti-slip pads further improve pipe holding and on-site adaptability.
| Model No. | FX1200 | Control | Semi-Automatic |
| Frequency Range | Low Frequency | Electric Current | AC |
| Type | HDPE Butt Fusion Welding Machine | Hydraulic Station | Enclosed |
| Warranty | 1 Year | Package Quantity | 3PCS |
OEM&ODM | Support | Shipping | by Sea or by Air |
Certificate | ISO 9001, CE | MOQ | No Limit |
After Service | Online | Material | Aluminum, Steel |
Transport Package | Plywood Case | Specification | Hydraulic Drive |
Trademark | FusingX | Origin | China |
HS Code | 8515809090 | Production Capacity | 20000 Pieces/Year |
PARAMETER
| Model | FX1000 |
| Suitable materials | HDPE,PE,PP, PB,PVDF |
| Range | 630-710-800-900-1000-1100-1200(M) |
Rated Voltage | 380V/50Hz, 3PH |
Rated Power | 30.5KW |
Heating plate | 22.5KW |
Trimmer | 4 KW |
Hydraulic Unit | 4 kW |
Max.Temperature of heating plate | 270ºC |
Pressure gauge | 0-12 Mpa |
Temperature Deviation | ±7℃ |
Piston Area | 45.94 CM² |
Certificate | ISO/CE/VOC/Calibration |
| Warranty | 18 Months |
PRODUCT DETAILS MAP

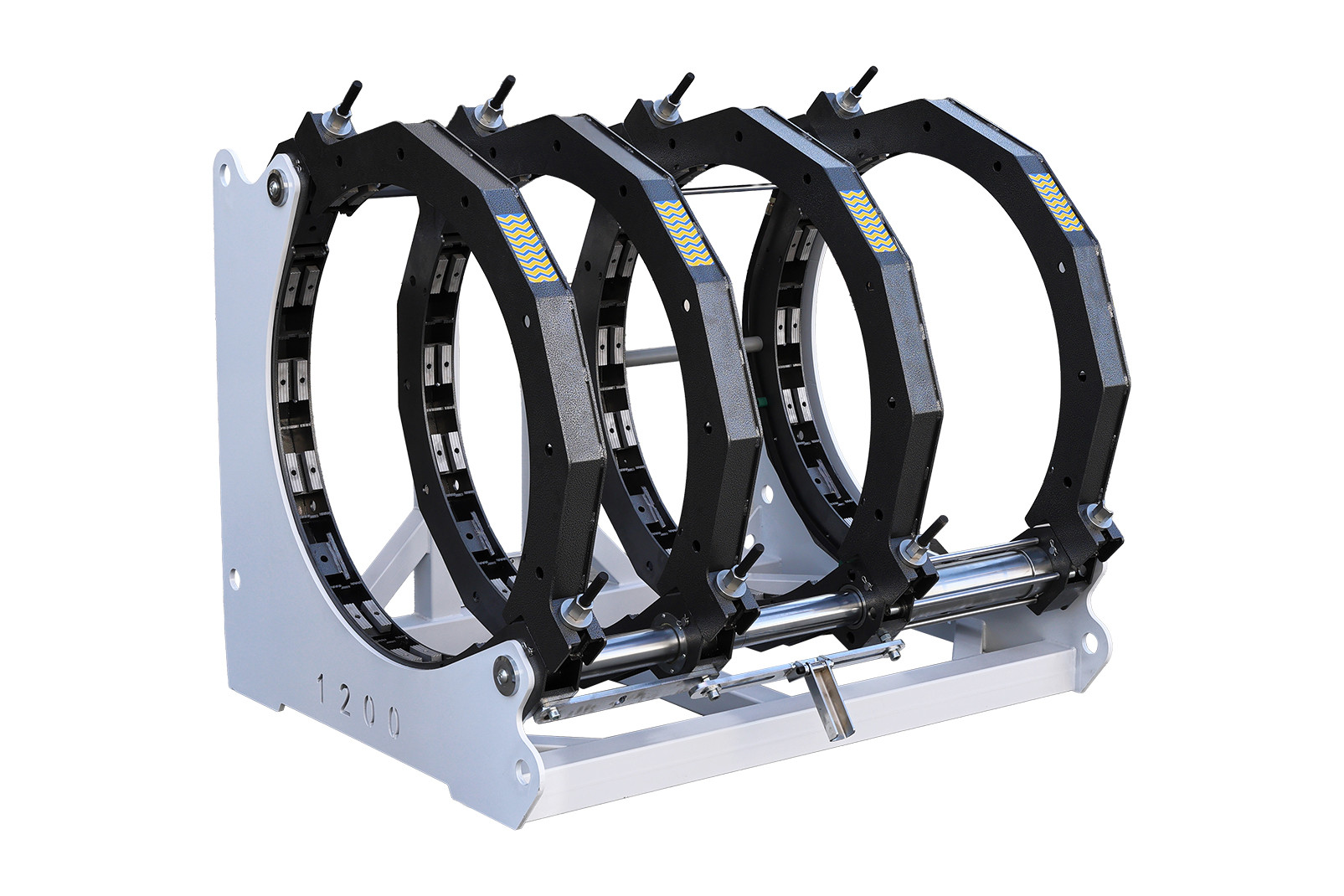

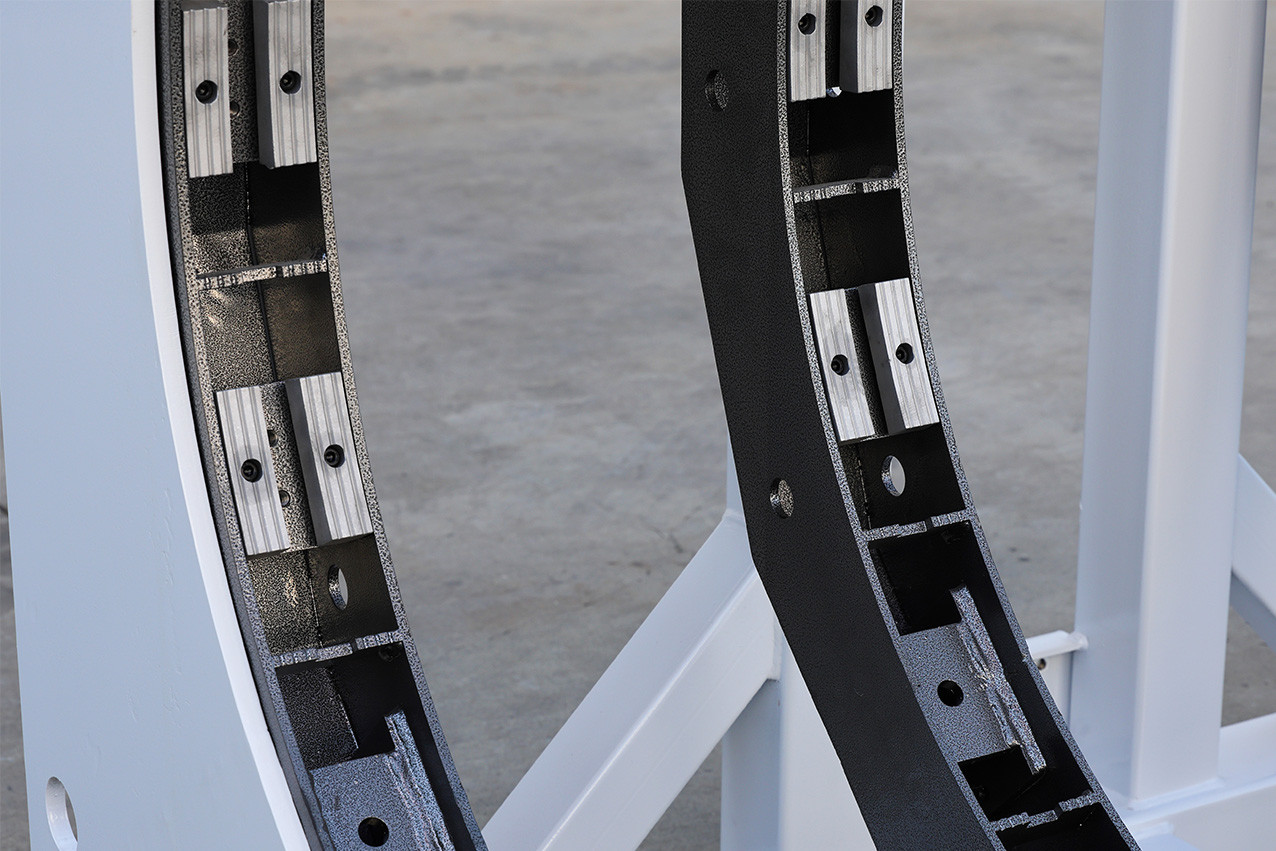

Frame(Carriage)
· Complete steel welded design, with complexreinforced structure, heavy-duty
· Thickened and enlarged side plates providehigher structural strength
· Standard equipped with lifting slugs anddetaching sleeve
· Qualified hydraulic cylinder with quickcouplings, for easy installation

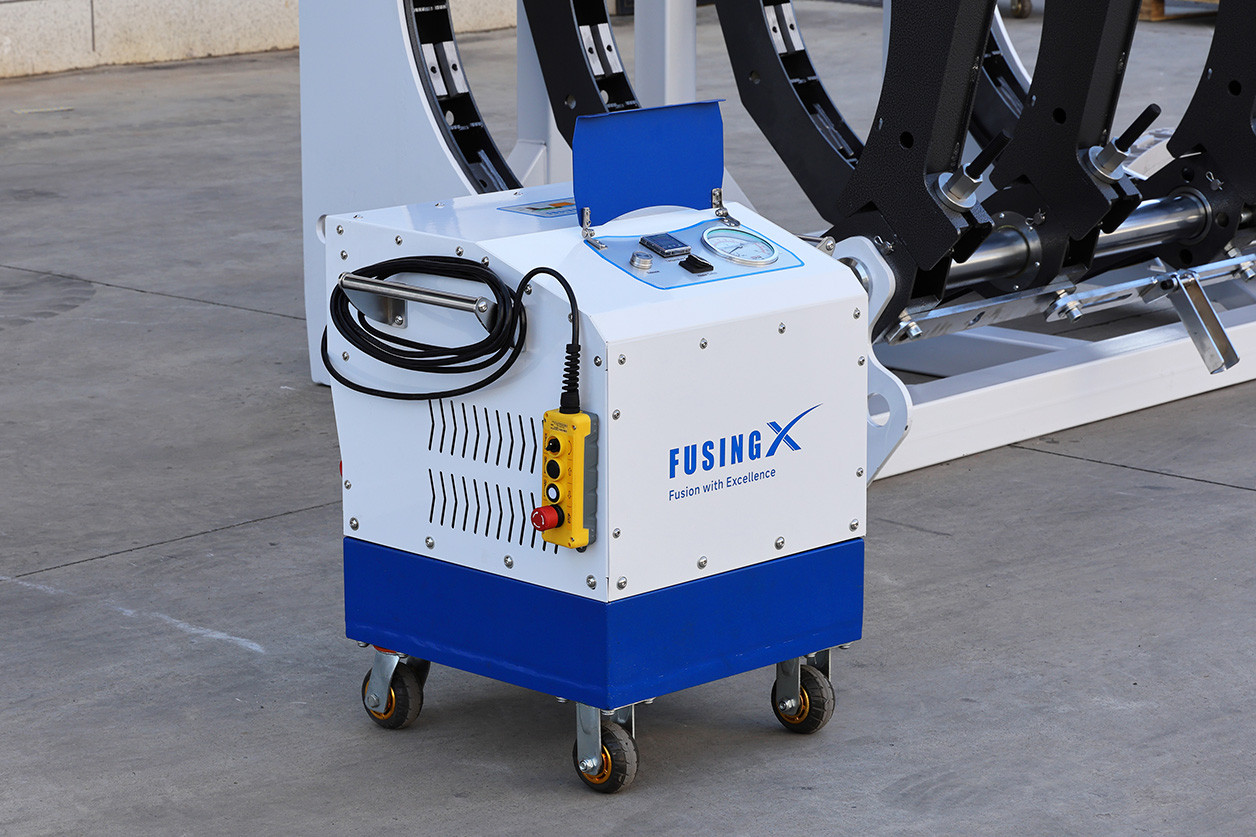

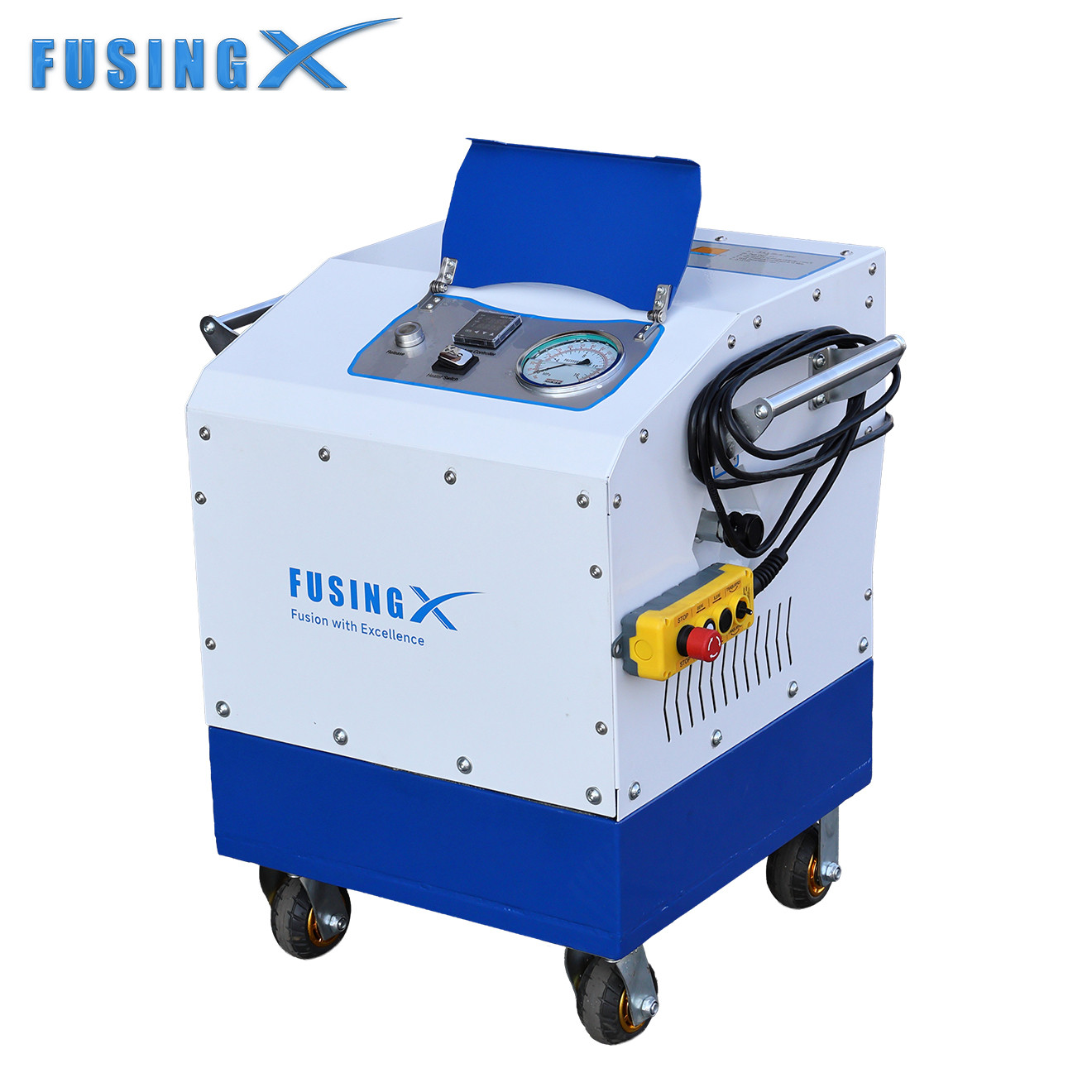

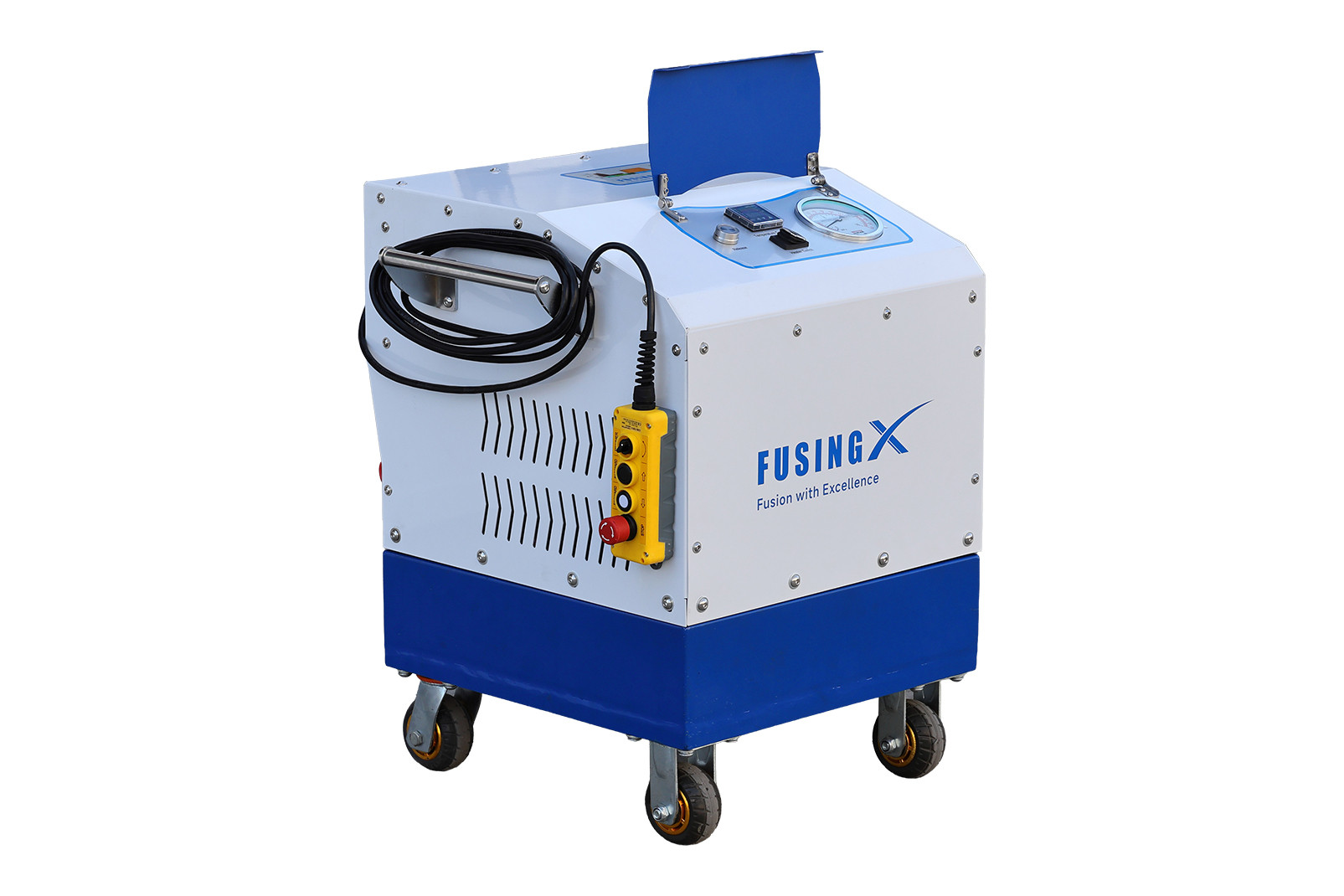

DynaFX™ HPU
· Integrated hydraulic and electrical control,for easy operation access, smart pressurecontrol for pipe facing
· Compact and Enclosure design, shieldingsplash and dirt, with standard remotecontrol panel for flexible operation
· Featuring forward movement at 1X speedand reverse at 1.3X speed. Improvesefficiency and reduces switching time

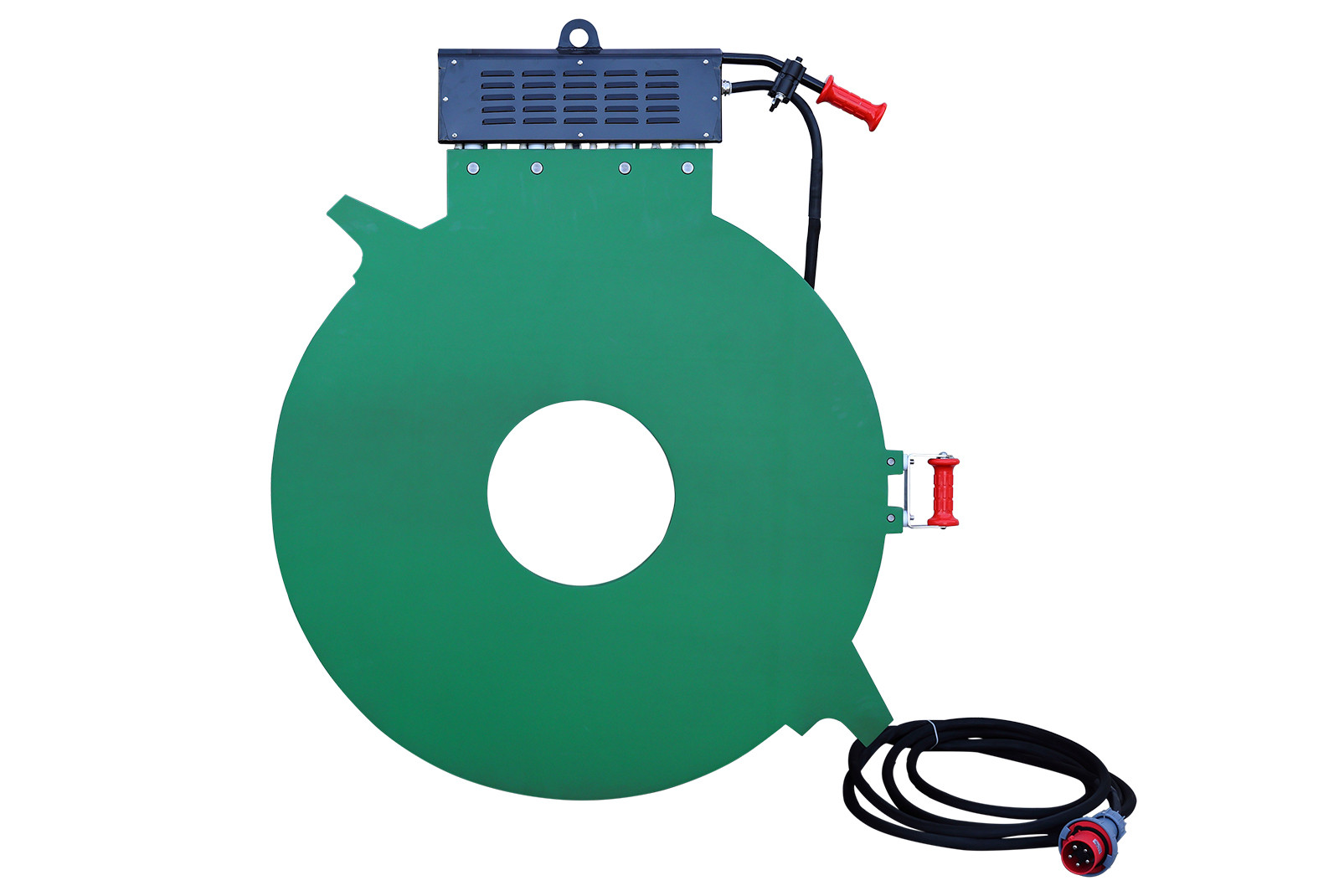

Heating plate
· Thickened cast aluminum body with built-inheating elements
· Anti-stick PEFT coating from Daikin
· Excellent teperature diavation control,less than 7°C
· Qualified aviation plug and heavy-duty powercord ensure operation safety

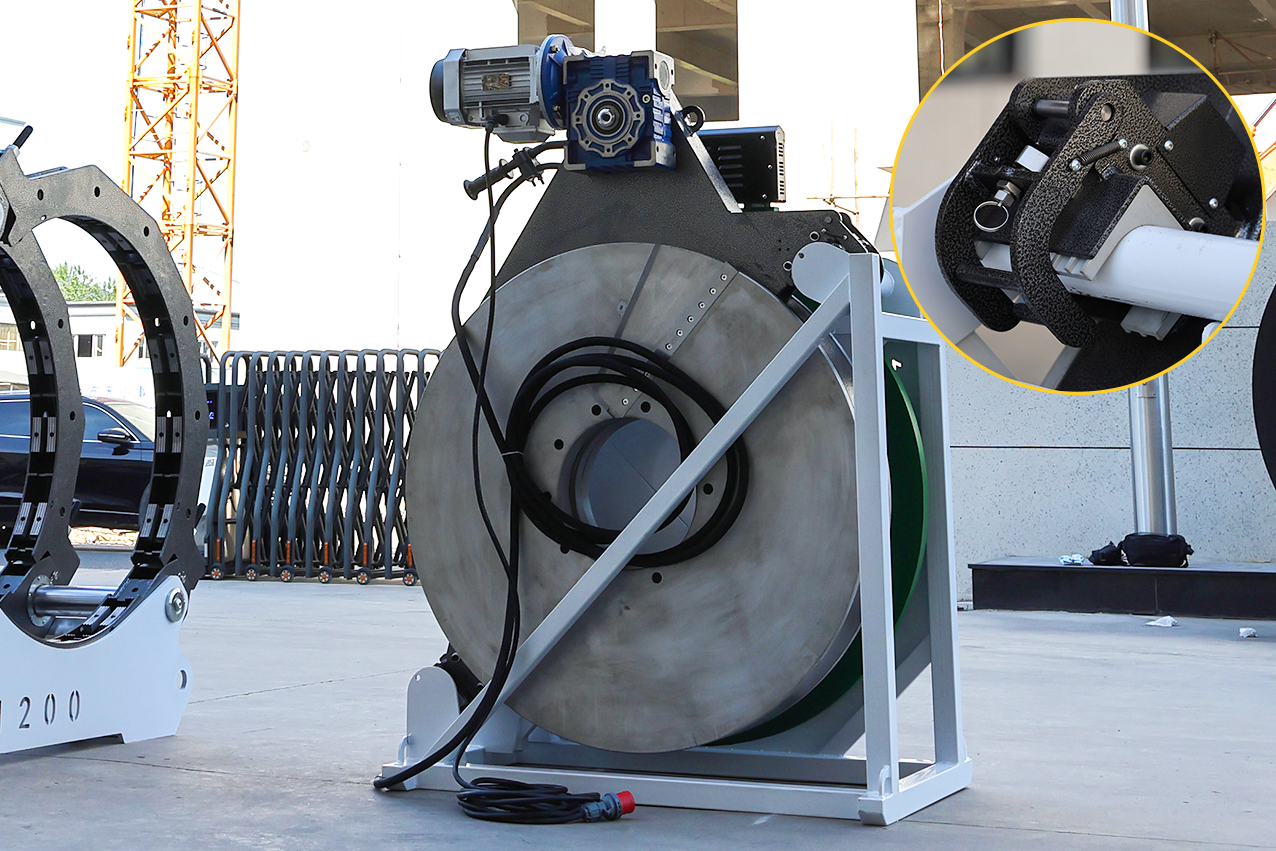

Facer (Milling Cutter)
· Reinforced chain drive with a self-tensioning design keeps the facer stable and helpsprevent loosening after long-term operation
· Powerful copper-wiring motor
· Reinforced aluminum die-cast facer plate
· Durable, double edges HSS blades
· Innovative locking part, easy to use

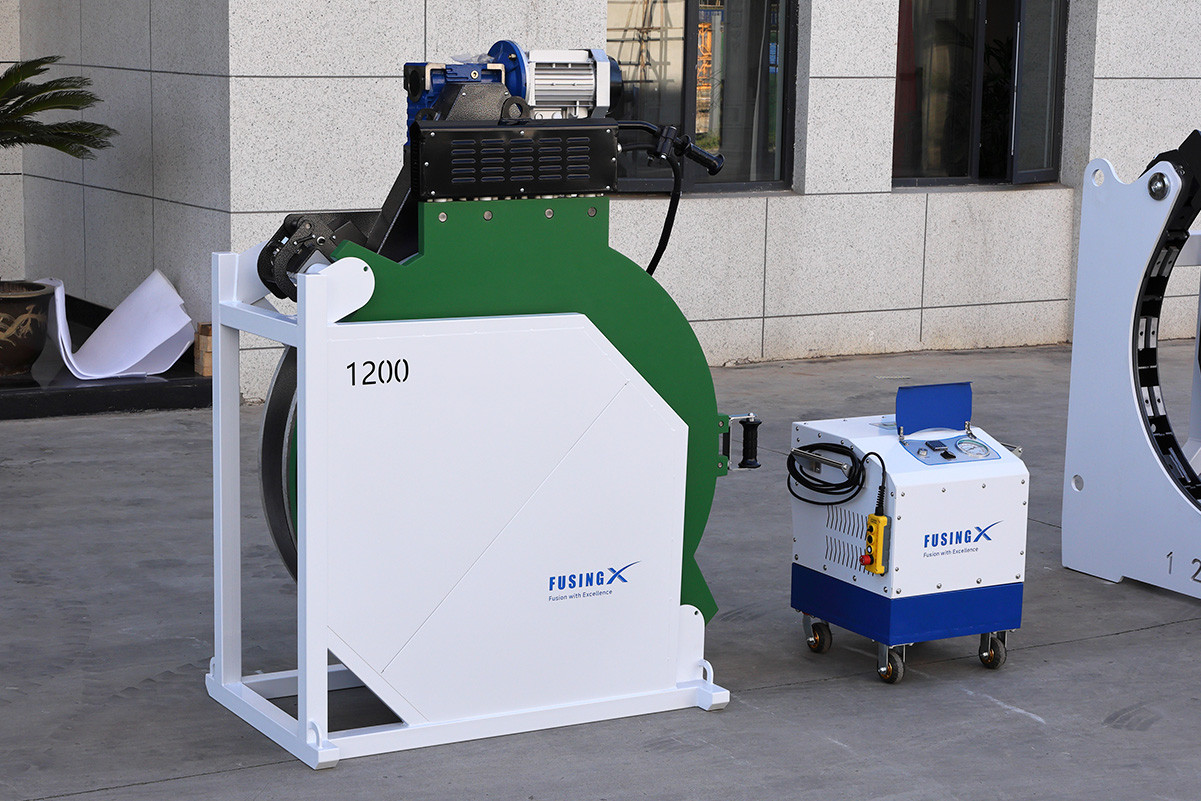

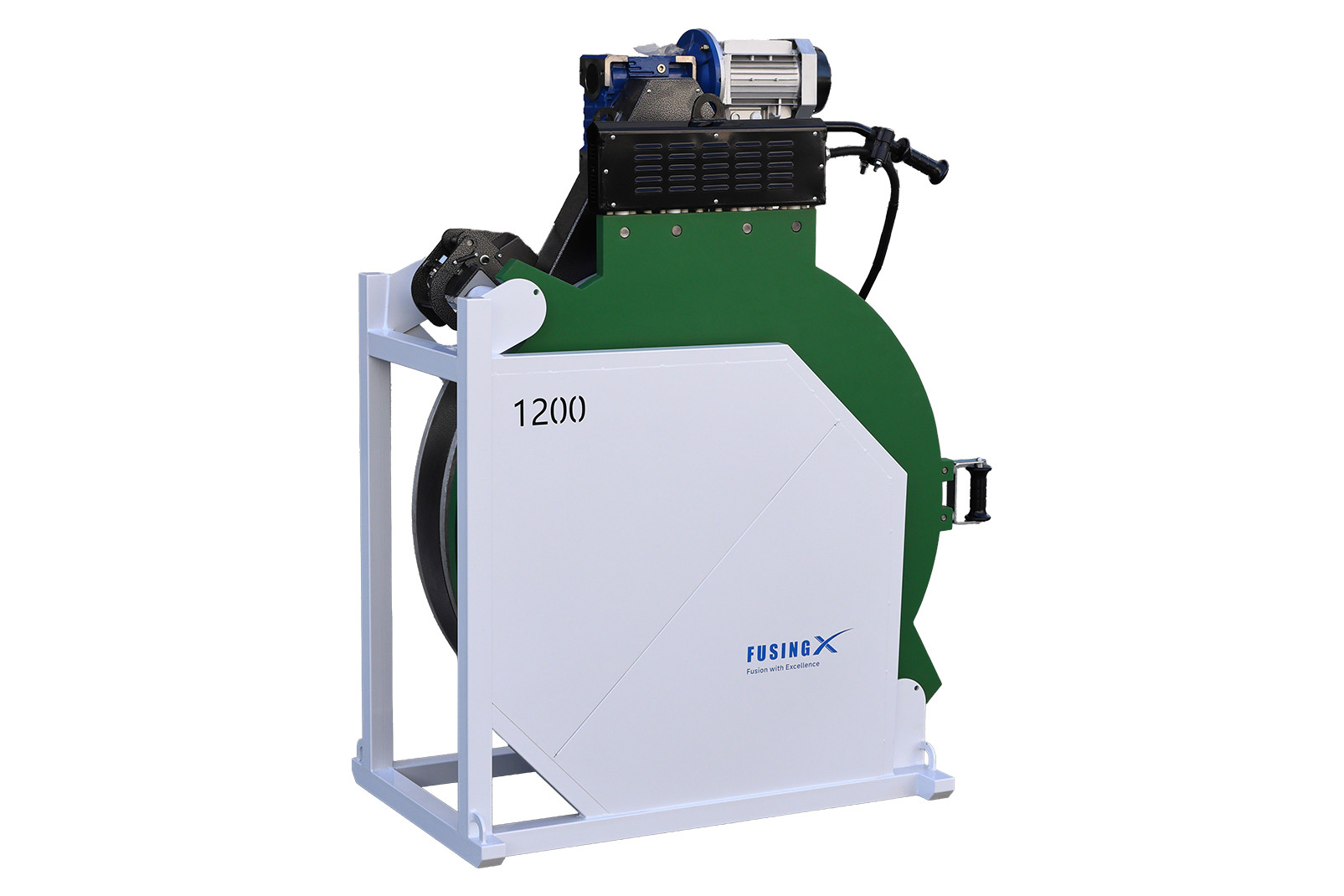

Tool holder
· Complete heating plate covers for better protection and heating conservation
· Wide base with lifting lugs
· For stable stock of facer and heating plate

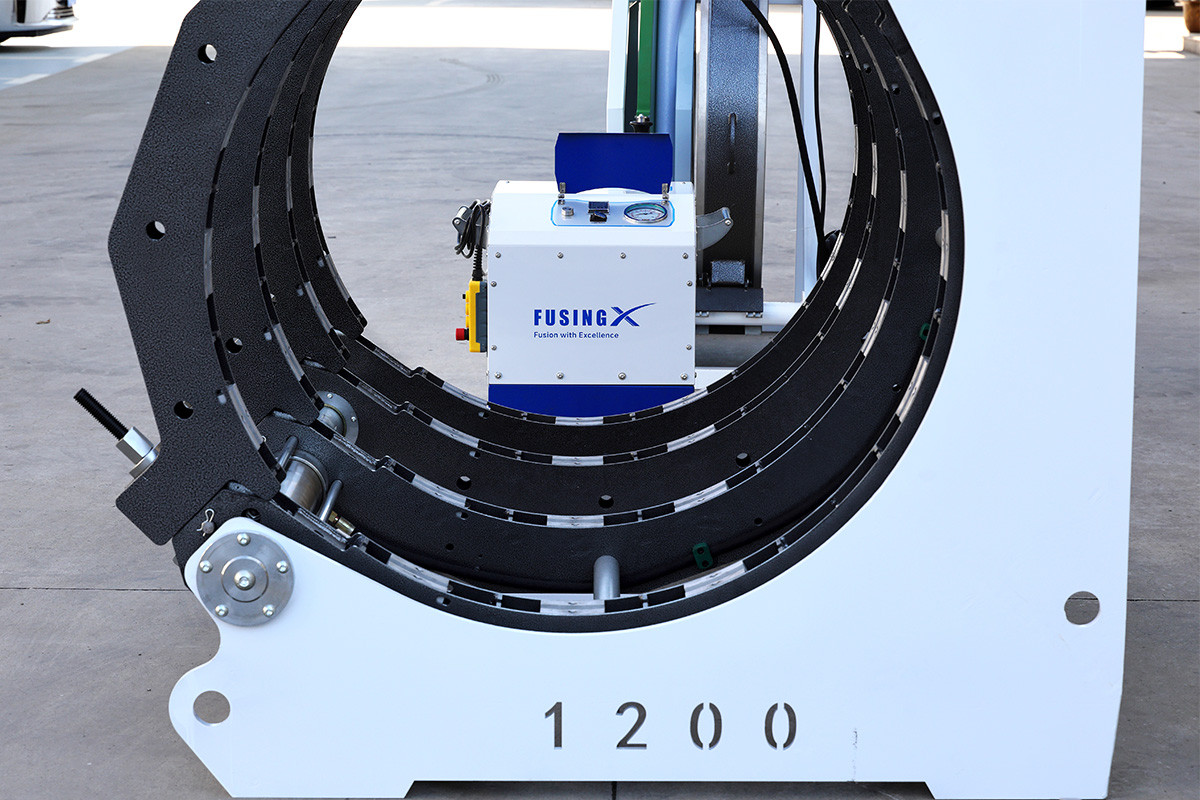

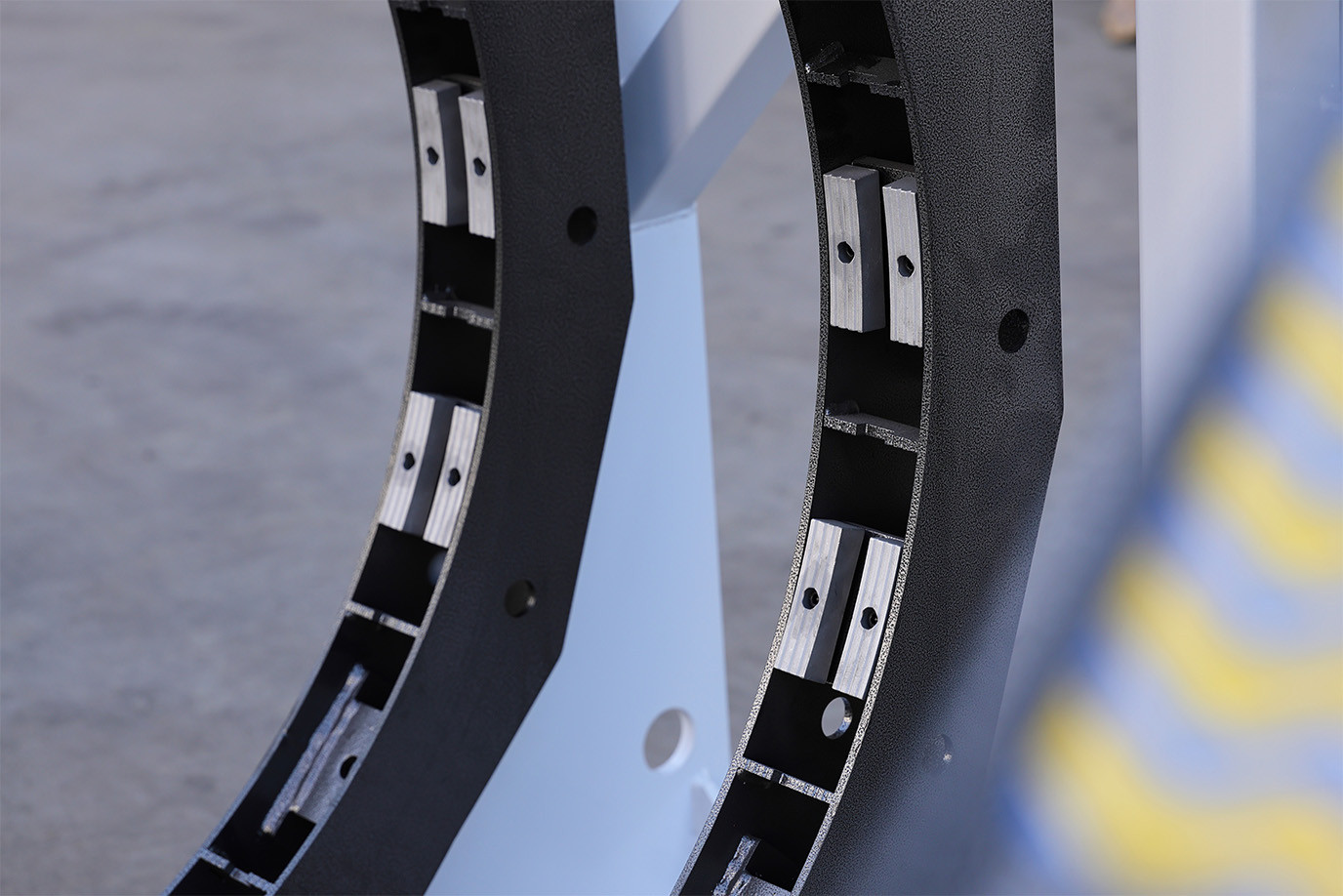

Clamp inserts
· The FX1200 comes standard with die-castaluminum inserts for 630, 710, 800, 900,1000, and 1100 mm pipe sizes
· Quarter-circle die-cast aluminum insertswith a widened surface
· Designed for quick installation and removal
Anti-slip pads
· Greatly increases the contact area with thepipe surface, improving anti-slip performanceand providing a more stable grip
· Can be installed independently for moreflexible use
· The pads can be finely adjusted to fit pipesthat are slightly smaller than the standard size
