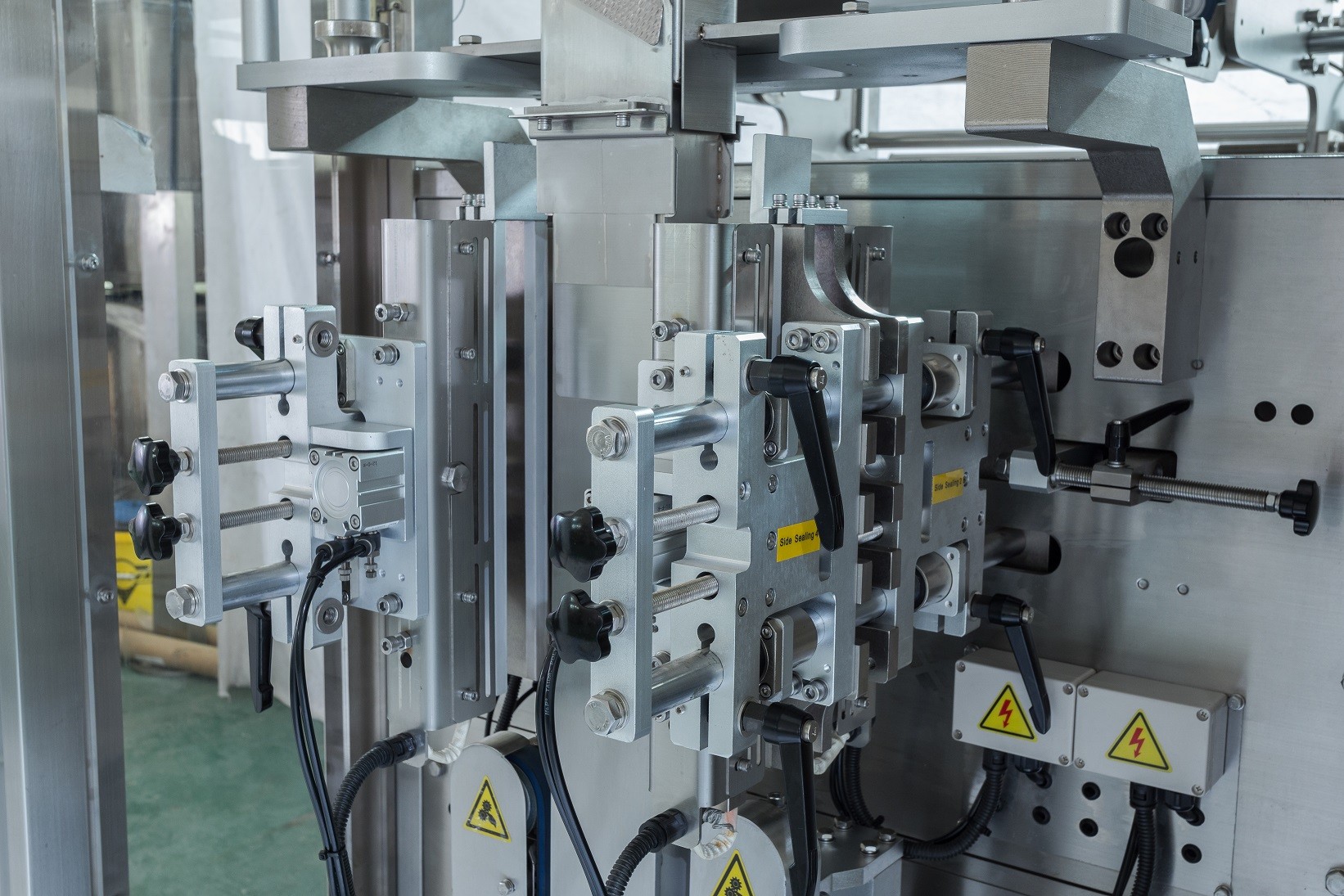

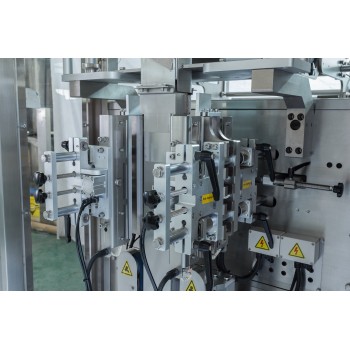

Automatic Factory CE Dog Food Pet Treat Quad Bag Vertical Packing Machine
group nameQuad seal bag packing machine
-
Min Order1 set
brand nameTOP Y Machinery
modelVFFS
payment methodL/C, Western Union
-
update timeSat, 03 Jan 2026 09:52:16 GMT
Paramtents
Name Form Fill Seal Packing Machine
function FILLING, Sealing, Packing
core components Motor, PLC, Gear, Bearing, Temperature Control Mod
After-sales Service Provided Engineers available to service machinery overseas
Machine Material SS#304 or Carbon/Mild Steel
Film Changeover Simple and fast bag sizes with one set of former
Software Operation Program storage and retrieval function
Bags or Products Changeover parameters setting on the touch screen
Controller System PLC and touch screen with simple manu-based
Machine Material SS#304 or Carbon/Mild Steel
brand name TOP Y MACHINERY
Packging & Delivery
Size80cm x80cm x150cm
Weight350kg / set
Min Order1 set
Briefing
Detailed
Automatic Factory CE Dog Food Pet Treat Quad Bag Vertical Packing Machine
Packaging Machine Manufacturer Support OEM&ODM Service
| The Specification Of Quad Seal Bag VFFS Packing Machine | |||
| Model No. | TOPY-QSM420 | TOPY-QSM520 | TOPY-QSM620 |
| Bag Type | Stand up Quad-Seal Bag | Stand up Quad-Seal Bag | Stand up Quad-Seal Bag |
| Film Width | Max 420mm | Max 520mm | Max 620mm |
Bag Length | 80-300mm | 80-350mm | 80-400mm |
Bag Width | 150-150mm | 50-200mm | 70-250mm |
Side Width | 40-80mm | 40-120mm | 50-150mm |
Packing Speed | Max 40 bags/min | Max 30 bags/min | Max 30 bags/min |
Power Supply | 220V/110V,3KW | 220V/110V,3.5KW | 220V/110V,4KW |
Air Consumption | 0.8Mpa 0.6m3/h | 0.8Mpa 0.6m3/h | 0.8Mpa 0.6m3/h |
Machine Weight | 450KGS | 550KGS | 650KGS |
The Optional Device On The VFFS Packing Machine
