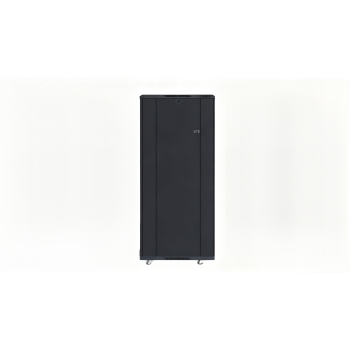

Standard Network Cabinet (42U) NE26842 - Customized Sheet Metal Processing Mechanical Design Service
group nameNetwork and IT Cabinets
-
Min Order1 piece
brand nameFRJ Industries
modelNE26842
-
update timeThu, 26 Feb 2026 13:54:18 GMT
Paramtents
Size 600mm*800mm*2055mm(42U)
Colour Black/White
Max Load Capacity 800kg
Front Door Tempered glass
Back perforation-free sheet metal
Protection Level IP20
Packging & Delivery
Min Order1 piece
Briefing
NE-2 Series, 42u standard network&IT cabinet, tempered glass front door, Ideal for server rooms/telecom closets.
Detailed
Product Introduction
NE26842
High Rigidity Heavy Cutting Double Column Machining Center
Standard Network Server Cabinet
42U
SIZE600mm
WIDTH800mm
DEPTH800KG
CAPACITY
Product Detailed Parameters
Machine Model : NE26842
Table | Value | Unit |
Capacity | 42 | U |
Size | 600 x 800 | mm |
D1 | 561 | mm |
Height | 2055 | mm |
Max. load capacity | 800 | kg |
Package size | 670 x 900 x 2085 | mm |
Packaging volume | 1.2573 | m³ |
Component Specification
Table | Material | Surface Finish |
Upper ledge | 1.2mm SPCC cold-rolled sheet | Spraying plastics |
Square-shaped hole bar | 2.0mm anti-fingerprint aluminized zinc plate | Original |
Link block | 1.5mm SPCC cold-rolled sheet | Spraying plastics |
Wire channel | 0.8mm SPCC cold-rolled sheet/Plastic | Spraying plastics |
Beam | 1.5mm anti-fingerprint aluminized zinc plate | Original |
Under ledge | 1.2mm SPCC cold-rolled sheet | Spraying plastics |
Front door | 5mm white tempered glass | Spraying plastics |
Frame | 1.2mm SPCC cold-rolled sheet | Spraying plastics |
Side door | 1.2mm SPCC cold-rolled sheet | Spraying plastics |
Back door | 1.2mm SPCC cold-rolled sheet | Spraying plastics |
Product Details Map
Thickened full steel cabinet body :
Protection level IP20, capable of withstanding a weight of 800kg, resistant to impacts, and with a longer service life
Galvanized column frame：
Use SPCC refined cold-rolled steel, which is durable and resistant to heat without deformation. The column is galvanized and the size is precise, allowing for free adjustment of the installation holes.
Exhaust System :
The cabinet is equipped with internal temperature-controlled fans. It is modularly integrated and can be connected in parallel with multiple fans. Maintenance is simple.
Front Door :
Selected thickened tempered glass
Safe and sturdy tempered glass door, resistant to scratches, high temperature, waterproof, moisture-proof, does not deform, and does not hurt hands in case of breakage.
What we can do for you?
- If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing.
