Spider Curtain Wall Point Fixed Glass Facade System China Manufacturer
group nameSpider Curtain Wall
-
Min Order100 square meter
-
update timeSun, 12 Apr 2026 05:48:56 GMT
Paramtents
Frame Type Spider Curtain Wall
Material Stainless Steel Fittings + Tempered Glass
Glass Options Double Glazing / Laminated / Low-E
Structure Stainless Steel Polished / Brushed Finish
Application Commercial Buildings / Office Towers / Malls
Performance Standard ASTM / AAMA
Packging & Delivery
Min Order100 square meter
Briefing
A frameless point-supported curtain wall system using stainless steel fittings, offering high transparency and modern architectural expression.
Detailed

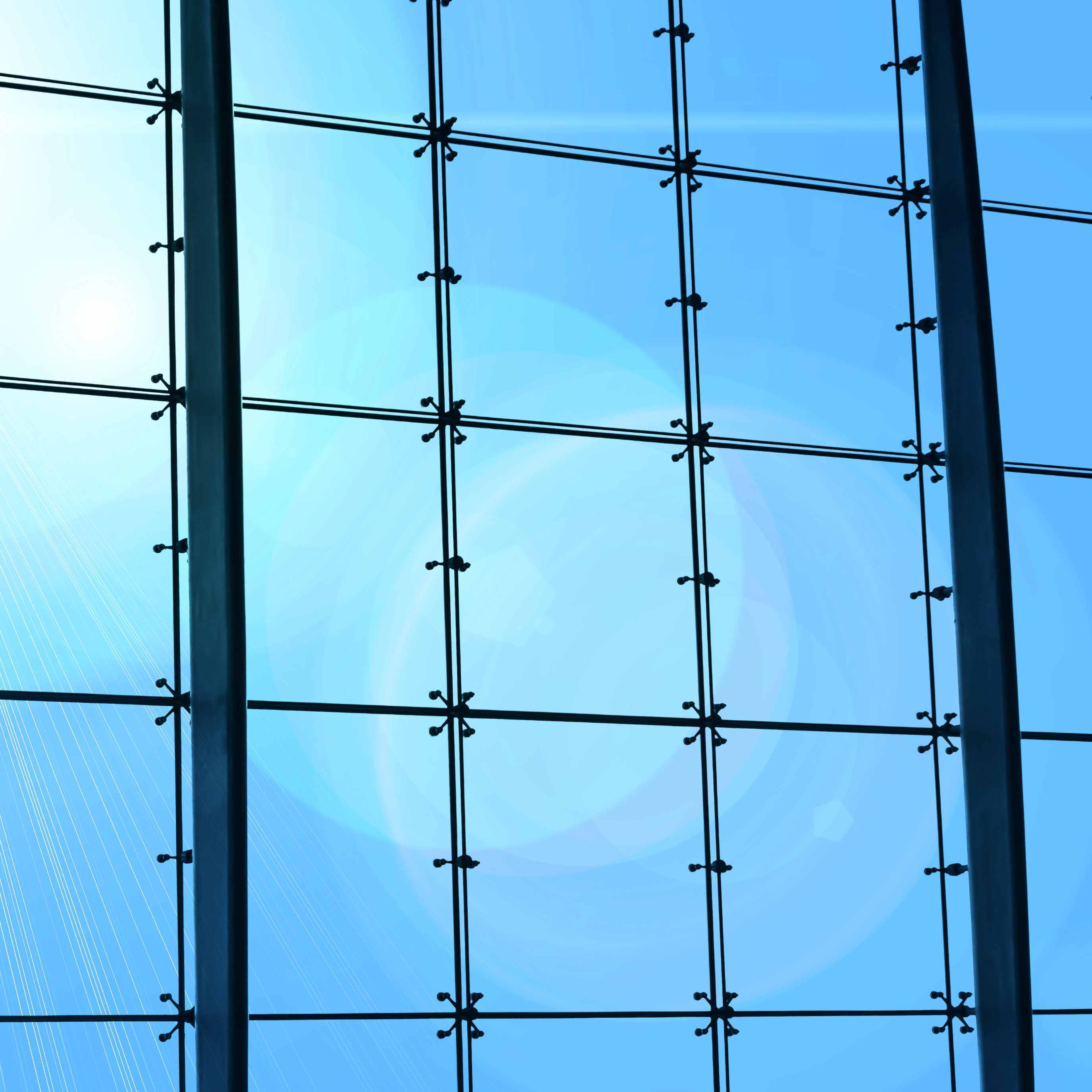

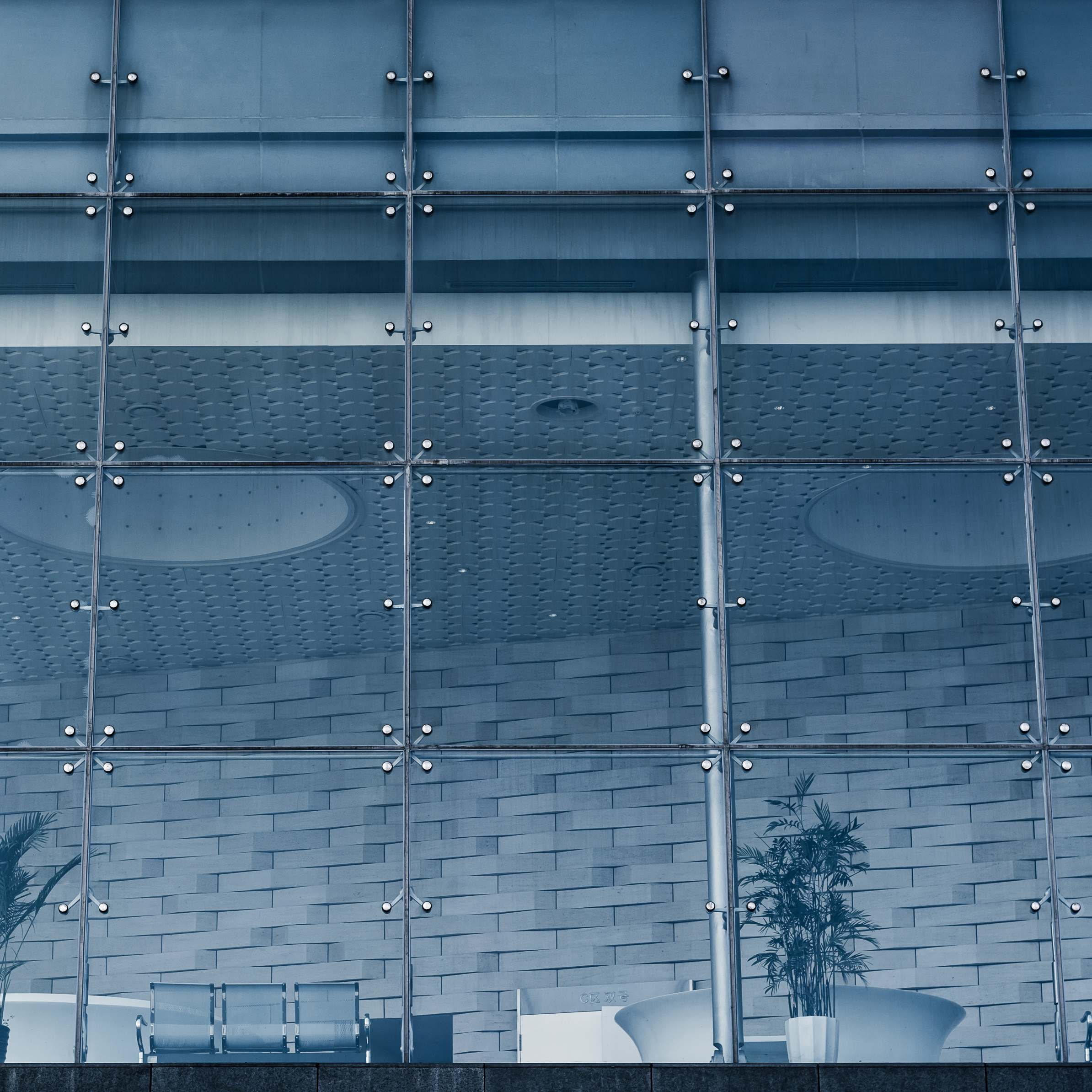

Spider Curtain Wall – Product Overview

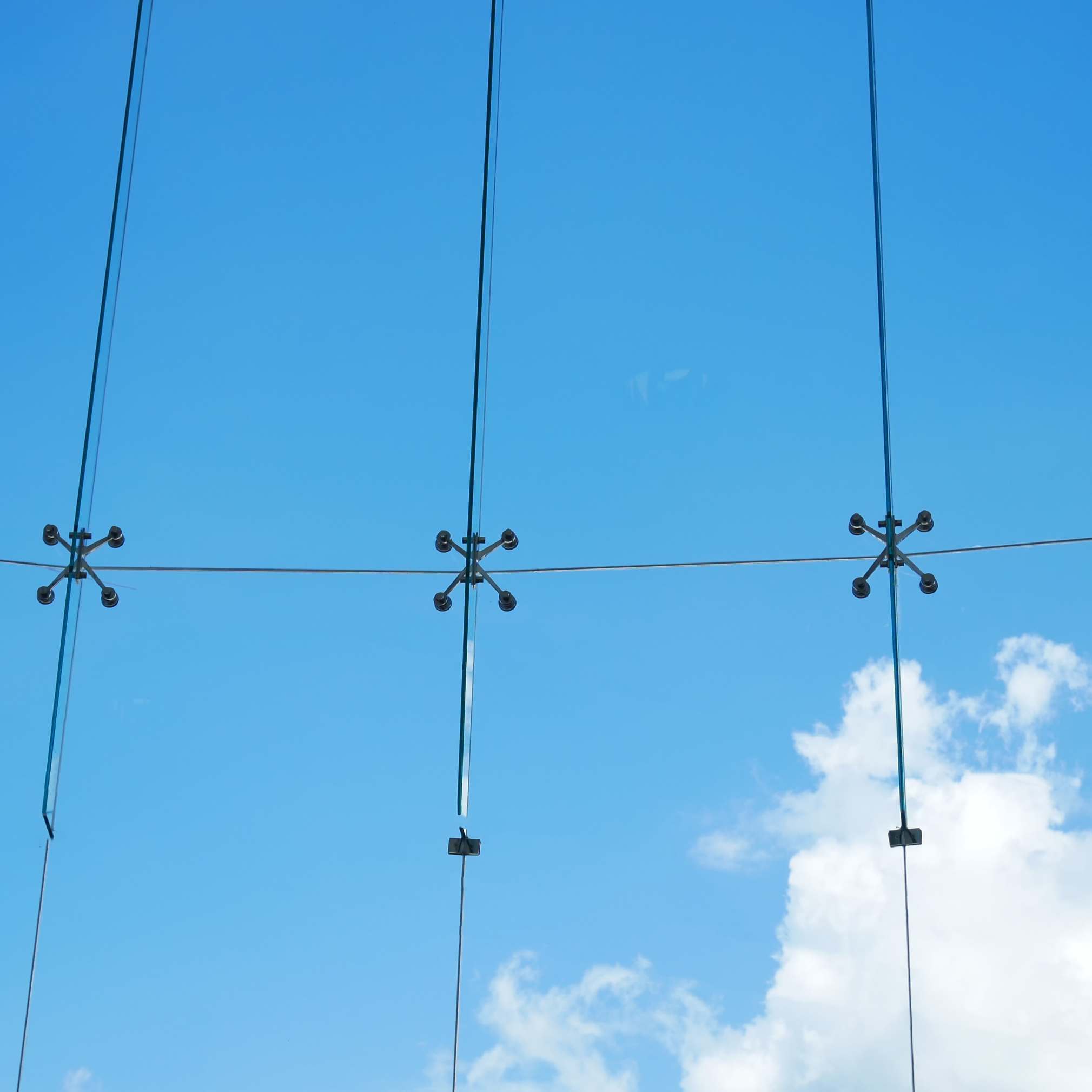

The spider curtain wall system fixes glass panels using stainless steel spider fittings, creating a fully transparent facade without traditional frames.
Why Choose Glass Curtain Wall Facade
✔ Full Transparency Design
Maximize visual openness with a frameless all-glass system, creating a clean and modern architectural look.
✔ Cost-Effective Commercial Solution
Lower manufacturing and installation costs compared to unitized curtain wall systems, ideal for budget-controlled projects.
✔ Enhanced Natural Daylighting
Allows abundant natural light into interior spaces, improving comfort and reducing energy consumption.
✔ Easy Installation & Maintenance
· On-site assembly allows flexible adjustments
· Convenient for long-term repair and replacement
· Suitable for international construction projects
✔ Proven Performance & Compliance
· Meets ASTM and AAMA standards
· Excellent water tightness and air sealing
· Long-term corrosion resistance for coastal environments
Technical Performance
| Item | Performance | |
| Wind Load Resistance | 3000–7000 Pa | |
| Water Tightness | ≥ 300–600 Pa | |
| Air Infiltration | ≤ 0.06–0.3 cfm/ft² | |
Thermal Performance | 1.2–2.5 W/m²·K | |
| Acoustic Insulation | 35–50 dB | |
Seismic Performance | ±20–25 mm Inter-story drift | |
Corrosion Resistance | 2000h Salt Spray Test | |
Applications – Commercial Curtain Wall Projects
· Office Buildings
· Shopping Malls
· Hotels
· Commercial Complexes
· Public Infrastructure
This glass curtain wall facade is widely used in modern urban architecture requiring both performance and aesthetics.
FAQ – Curtain Wall System
Q1: What is the difference between visible frame and unitized curtain wall?
Visible frame systems are installed on-site and are more cost-effective, while unitized systems are pre-assembled in factories.
Q2: Is this system suitable for high-rise buildings?
Yes, it is designed to meet high wind load and seismic performance standards.
Q3: Can the glass and color be customized?
Yes, we offer full customization for glass types, coatings, and aluminum finishes.
Q4: What standards does the system comply with?
It complies with ASTM, AAMA, and international facade standards.
Q5: Do you provide project support?
Yes, we provide:
· Shop drawings
· Engineering solutions
· Installation guidance
· OEM/ODM services
