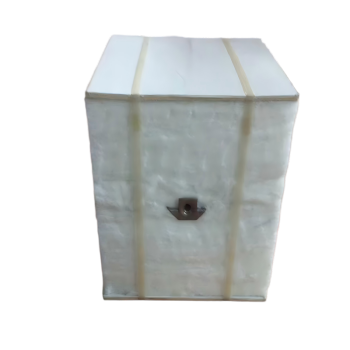

Ceramic Fiber Modules | 1430°C & 1600°C
Product Overview
FOVO Thermal ceramic fiber modules feature a pre-compressed design (compression ratio 30–45%), creating a seamless monolithic lining after installation that effectively eliminates gaps from fiber shrinkage and prevents heat short-circuiting. Modules are secured to the furnace shell with stainless steel anchors with excellent resistance to gas flow erosion. 1430°C (zirconia-containing) modules are manufactured at 220 kg/m³ density; 1600°C (polycrystalline mullite) modules at 180 kg/m³ density — balancing insulation performance with rapid response requirements.
Why Choose FOVO Ceramic Fiber Modules?
- Install in hours, not days — Pre-engineered modules speed up installation by 3–5x vs. brick lining
- Zero gaps, zero shortcuts — Pre-compressed design expands to create a seamless monolithic lining
- Built-in anchoring — Complete stainless steel anchoring system included, no extra parts to source
- Tailored to your furnace — Custom sizes available for non-standard furnace designs
- Quick response, quick delivery — 15–21 day lead time for custom orders
- Technical support — Free installation guidance and troubleshooting from our engineering team
Key Features
- Fast installation – up to 10x faster than brick lining
- Low thermal conductivity – reduces furnace energy consumption
- Foldable design – compresses during installation, expands to fill gaps
- Complete anchoring system – stainless steel anchors included (304 for 1430°C / 310 for 1600°C)
- Custom sizes available
- Made to order
Technical Specifications
| Item | 1430°C Module (Zirconia-Containing) | 1600°C Module (Polycrystalline Mullite) |
|---|---|---|
| Classification Temperature (°C) | 1430 | 1600 |
| Bulk Density (kg/m³) | 220±10 | 180±10 |
| Al₂O₃ (%) | 38 | 72 |
| ZrO₂ (%) | 15–17 | — |
| Al₂O₃+SiO₂+ZrO₂ (%) | >99 | >99 |
| Anchor Material | 304 Stainless Steel | 310 Stainless Steel |
| Standard Module Size (mm) | 300×300×300 (custom sizes available) | |
| Linear Shrinkage (%) | <2 (1200°C×24h) | 1.5 (1450°C×24h) |
Installation Overview
- Weld anchors to the furnace shell according to layout
- Press each module over its anchor (fold direction toward heat flow)
- Stagger joints between rows to avoid aligning gaps
- Optional: Apply rigidizer coating for high‑velocity gas areas
Standard Sizes
| Length (mm) | Width (mm) | Thickness (mm) |
|---|---|---|
| 300 | 300 | 50 – 300 |
| 600 | 300 | 50 – 300 |
Custom sizes available upon request.
Typical Applications
Continuous Furnace Roof and Sidewalls
Suitable for roof and sidewall linings in walking beam furnaces and pusher-type continuous heating furnaces. Modular construction increases installation speed by 3–5 times compared to traditional brick linings, making it ideal for continuous heating applications with high gas flow velocity.
Bogie Hearth Furnaces and Bell-Type Furnaces
Suitable for full-fiber lining retrofits in large bogie hearth furnaces and bell-type annealing furnaces. 1600°C modules feature a low-density design (180 kg/m³) with low heat storage and fast heat-up response — particularly suitable for heat treatment processes requiring rapid thermal cycling. Full-fiber linings can achieve 20–30% energy savings.
Petrochemical Reformer and Cracking Furnaces
Suitable for linings in reformer furnaces, cracking furnaces, and conversion furnaces in the petrochemical industry. Ceramic fiber modules offer excellent thermal shock resistance to accommodate frequent start-ups and temperature fluctuations, along with good chemical stability against H₂, CO, and hydrocarbon atmospheres.
Cement Rotary Kiln Hoods and Coolers
Suitable for insulation linings in cement rotary kiln hoods, grate coolers, and preheater systems. The low density of ceramic fiber modules significantly reduces structural load on kiln hood steelwork, while offering excellent alkali vapor resistance for alkaline environments in cement production lines.
Selection Guide: Board vs. Modules — When to Choose Modules?
| Operating Condition | Recommended Product | Reason |
|---|---|---|
| Furnace roof / arch structure | Modules | Reliable anchoring, no support required, safe installation |
| Large flat surface linings | Modules | Fast installation, excellent gap control |
| Small furnace chambers / complex areas | Boards | Flexible cutting, adapts to small dimensions |
| Small areas requiring frequent repairs | Boards | Convenient local replacement |
| Rapid heating applications (1600°C) | Modules (180 density) | Low heat storage, fast response |
Selection Notes:
- For 1600°C applications requiring rapid heat-up/cool-down cycles, the 180 kg/m³ low-density module is recommended.
- For 1430°C applications with standard thermal cycling, 220 kg/m³ density provides optimal balance of insulation and mechanical strength.
- Select the most appropriate product based on actual operating temperature and thermal cycling requirements — neither over-specify and waste budget, nor under-specify and shorten service life.
Production Process (Simplified)
High-purity ceramic fiber bulk material.
Pneumatic press compresses fibers into block shape.
Stainless steel anchors are inserted and secured.
Shrink-wrapped, labeled, and boxed.
Accessories
Placed between shell and modules for insulation and stress buffering.
Fills gaps between modules to compensate thermal expansion and prevent heat shortcuts.
Large-Scale Custom Modules
In addition to standard 300×300×300 modules, we offer large prefabricated blocks and complete furnace roof modules – designed to reduce on-site installation time and improve furnace integrity. Custom sizes available upon request.
Can be made in any large size – tailored to customer drawings and furnace dimensions.
Pre-assembled roof sections including ceramic fiber modules, back-up insulation, and anchoring system – ready for installation.
Need Help with Selection?
Not sure which density or configuration suits your furnace? Share your operating temperature, furnace type, and thermal cycling requirements with us — our engineers will provide a free selection recommendation within 24 hours.
