Sunshine 512 Console | 512CH | 2 Isolated Outputs | 1600 Chase Steps
group nameMid-Range Console
-
Min Order1 piece
brand nameDARKTONE Stage Lighting Equipment Manufacturer
modelGA-SUNNY
-
update timeFri, 26 Jun 2026 13:47:02 GMT
Paramtents
Channels 512 DMX channels
Output 2 isolated outputs
Chase 1600 chase steps
Control 16Bit X/Y control
Display Backlit LCD display
Voltage 90-240V wide voltage
Function 48 scenes & 32 lights control
Packging & Delivery
Size56cm x40cm x17cm
Weight8kg / piece
Min Order1 piece
Briefing
Sunshine 512 DMX Console, 512CH, 2 isolated outputs. With LCD, 1600 chase steps, 48 scenes and 16Bit control. Wide voltage & music trigger.
Detailed
Sunshine 512 Console-Product Overview
◎Voltage: AC220V, 50-60Hz;
◎DMX512 standard. 512 DMX control channels;

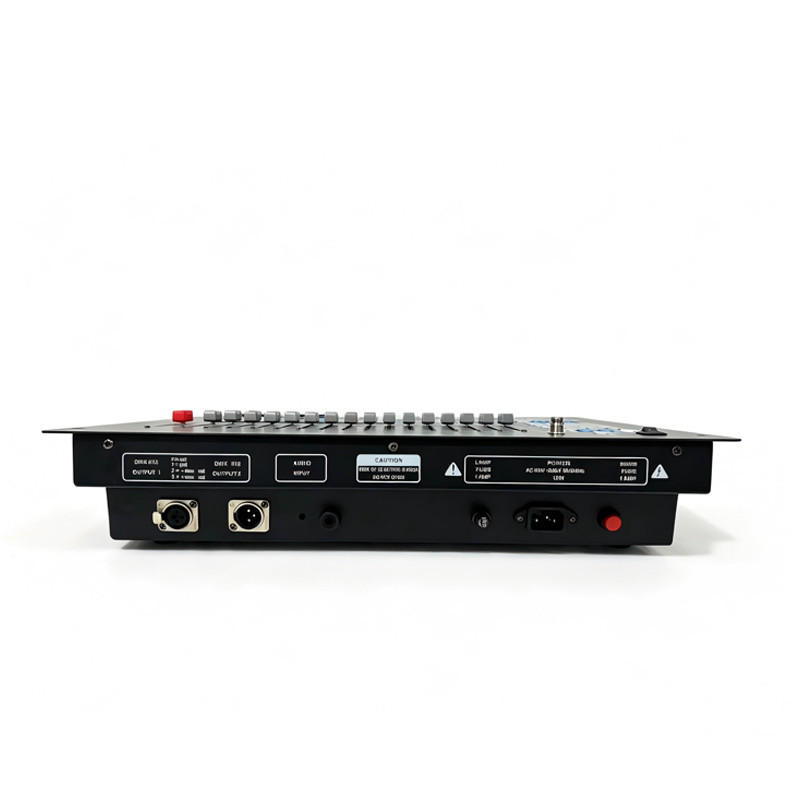

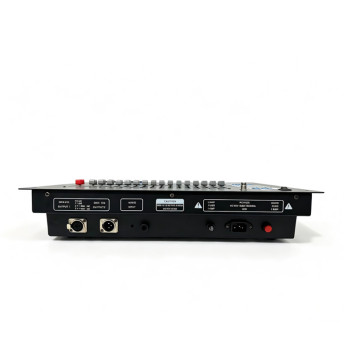

◎2 independent output drive ports with isolation, capable of withstanding 1500VDC electrical impact. Independent plug-in board structure, easy to replace;
◎Can control 32 16-channel computer lights;
◎Large-screen LCD display with backlight for displaying various operating parameters;
◎16 channel faders, 1 speed control fader;
◎Storage capacity of 1600 chase steps. 48 chase programs, each program has a maximum of 100 steps. Each step speed and gradient parameters are set independently. Optional music sync or manual speed control;
◎With the cooperation of the chase speed fader, the time range of the program step can be from 0.03s-180s;
◎48 computer light scenes that can be directly called;
◎Can run 4 chase programs and 48 scenes at the same time, and can manually operate 32 computer lights (lantern) at the same time. The manual operation (lantern) has a channel release function;
◎The X/Y of different types of scanners are uniformly controlled by the data wheel and can also be controlled by the fader;
◎16Bit X/Y control accuracy of computer lights;
◎15 environment keys to quickly call different scenes, chases, and manual operation combinations;
◎The music trigger signal source can be taken from the audio line input or built-in microphone pickup;
◎Easy to learn and use, with higher operating efficiency;
◎Save data during shutdown;
◎Built-in high-performance green switching power supply, with extremely low power supply harmonic distortion and extremely wide voltage application range, meeting the world's power supply requirements (90V-240V).
◎Size: 565×400×175mm;
◎Gross weight: 8kg.
Why Choose Our Professional Sunshine 512 Console
1、512 DMX Channels & Isolated Outputs
2 isolated anti-interference ports ensure stable signal transmission.
2、Rich Programming Functions
Supports 1600 chase steps and 48 scenes for diverse lighting effects.
3、16Bit High Precision Control
Delivers accurate X/Y positioning for moving lights.
4、Wide Voltage & Easy Operation
90-240V universal voltage, with music trigger and data save function.
FAQ - Sunshine 512 Console
What voltage does it support?
It works with 90V-240V wide voltage, suitable for global use.
How many moving lights can it control?
It can control up to 32 moving lights simultaneously.
Does it retain data after power off?
Yes, it can automatically save data when shutting down.
