Waterproof Moving Profile Light | CMY CTO 4-Blade Cutter | DMX512 | 5°-50° Zoom
group nameOutdoor Beam Moving Head Light
-
Min Order1 piece
brand nameDARKTONE Stage Lighting Equipment Manufacturer
payment methodT/T, PayPal, Westem Union, Cash
-
update timeFri, 28 Aug 2026 03:49:10 GMT
Paramtents
Protection Grade IP65 Waterproof
Color System CMY+CTO Mixing
Framing System 4 Cutting Shutters
Zoom Range 5°-50° Electronic Zoom
Gobo Dual Gobo Wheels
Scanning 16bit Pan & Tilt
Light Source 1500W LED Module
Control Protocol DMX512 & RDM
Packging & Delivery
Size51cm x33cm x75cm
Weight31kg / piece
Min Order1 piece
Briefing
1500W IP65 Outdoor Moving‑Head Framing Light: CMY+CTO, 5°‑50° zoom, 16‑bit pan/tilt, DMX512/RDM, smart cooling.
Detailed

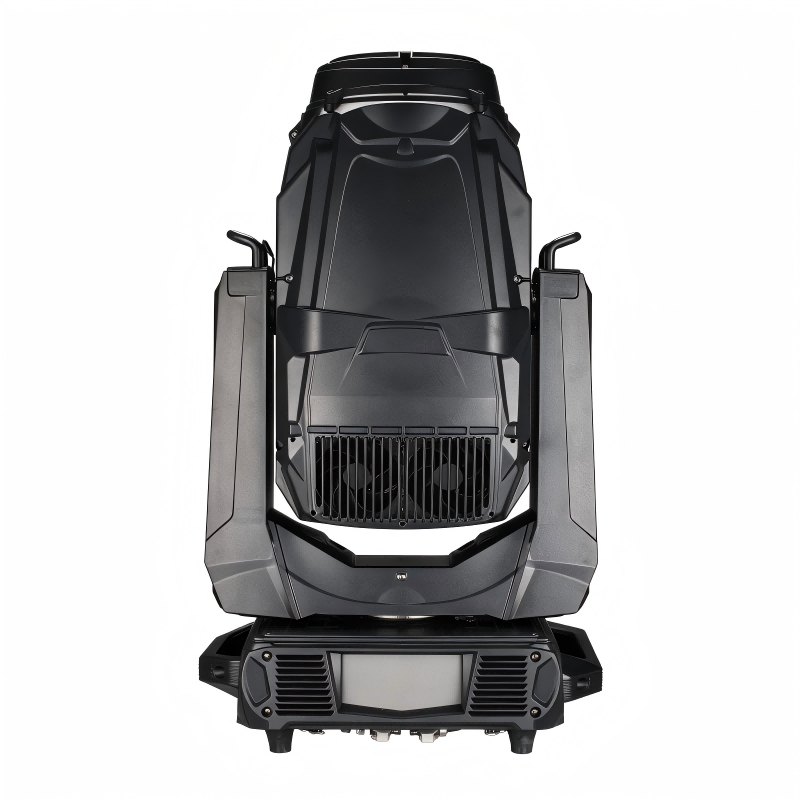

1500W Waterproof Moving Head Profile Light - Product Overview
Waterproof Moving Profile Light
1 Electrical Parameters
Input Voltage: AC100-240V, 50/60Hz
Total Power: 1650W
2 Light Source
Type: 1500W White LED Module
Average Lifespan: ＞20,000 hours
3 Color System
1 Color Wheel: 8 colors + open, bi-directional rainbow effect
CMY Linear Mixing + CTO Tuning (6000K-2800K)
4 Gobo System
Static Gobo Wheel: 6 metal gobos + dynamic texture + open, gobo shake
Rotating Gobo Wheel: 7 pluggable rotating gobos + open, shake & positioning
5 Effects
Zoom & Focus: 5°-50° electronic zoom, focus range 2m to infinity
Framing System: 4 independent shutters, 100° rotatable
Iris: 5%-100% linear adjustment
Prism: Bi-directional rotating 8-facet prism
Frost: Independent frost filter
Dimming & Strobe: 0-100% linear dimming, high-speed strobe
6 Display & Control
LCD Screen, Chinese/English switchable
DMX Channels: 39 standard / 34 simplified
Signal: USITT DMX512, 3-pin XLR I/O, RDM supported
Firmware upgrade via DMX; Intelligent temperature-controlled cooling
7 Movement
Pan: 540° (16-bit) | Tilt: 245° (16-bit)
Electromagnetic auto reset
Mount: Integrated folding clamp
8 Dimension, Weight & Rating
Size: 412×330×754mm
Net Weight: 31kg
IP Rating: IP65
Why Choose Our Professional 1500W Waterproof Moving Head Profile Light
1. IP65 Outdoor Waterproof Design
Full IP65 dustproof and waterproof structure, stable operation for outdoor concerts, scenic spots and open-air events.
2. Rich Professional Light Effects
CMY+CTO color mixing, 4 independent framing shutters, dual gobo wheels and multi-effect filters for diverse creative lighting output.
3. Stable Precise Movement System
540° pan & 245° tilt with 16-bit high resolution, auto electromagnetic reset and intelligent temperature control for long-hour reliable work.
FAQ - 1500W Waterproof Moving Head Profile Light
Is this light suitable for outdoor use?
Yes, it features IP65 waterproof and dustproof rating, which can work stably in open-air concerts, scenic lighting and outdoor events.
Does it support DMX control and firmware upgrade?
Absolutely. It complies with USITT DMX512 & RDM protocol, and you can upgrade the fixture’s firmware via the DMX port.
What’s the zoom range and beam shaping function?
It supports 5°-50° 10x electronic linear zoom, equipped with 4 independent rotatable framing shutters to freely cut and shape light beams.
