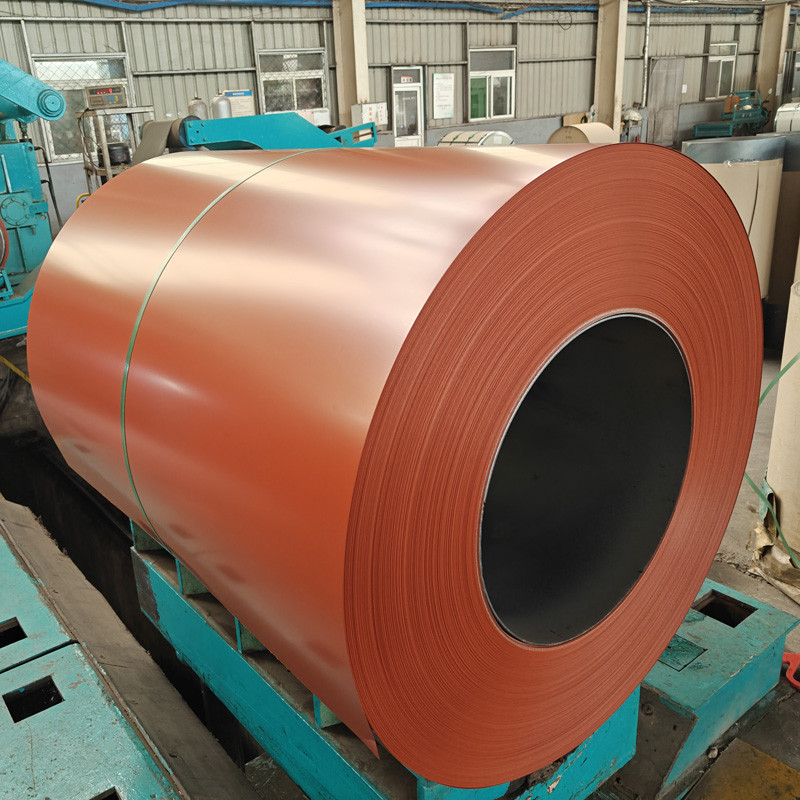

Prepainted steel coil PPGL/PPGI
group nameSteel Coils
-
Min Order50 metric ton
brand nameFanda Steel Coil & Guardrail Manufacturer
modelCGCC/ASTM A755
payment methodL/C, T/T
-
update timeThu, 16 Jul 2026 23:13:27 GMT
Paramtents
Product name Prepainted steel coil
Surface paint coating PE or PVDF paint
Color RAL code
Top paint coating 15-25micro
Bottom paint coating 5-15micro
Coil ID 508 or 610mm
Coil weight 3-6 tons
Hardness Soft or full hard
Thickness 0.12mm-1.5mm
Width 600mm-1250mm
Certificate ISO9001, SGS etc
Packging & Delivery
Min Order50 metric ton
Briefing
Product name: Prepainted steel coils
Steel Grade: ASTM A755/CGCC
Thickness: 0.12-1.5mm
Width: 600mm-1250mm
Steel Grade: ASTM A755/CGCC
Thickness: 0.12-1.5mm
Width: 600mm-1250mm
Detailed
Introduction of Prepainted steel coil
Prepainted steel coil (PPGI/PPGL) is produced from hot-dipped galvanized or Galvalume steel coil, followed by chemical pretreatment, primer and topcoat application, and thermal curing. Fanda offers both PE (polyester) and PVDF (fluorocarbon) coating systems, with optional protective film lamination. Colors are available per RAL chart. Our products feature excellent weather resistance, formability, and aesthetics — widely used in building facades, roofing, home appliances, transportation equipment, and more.
The parameter of Prepainted steel coils
| Item | Parameter | ||
| Base Material | Hot-dipped GI / GL coil (DX51D, S250GD, etc.) | ||
| Thickness | 0.12-1.5mm | ||
| Width | 600mm – 1250mm (customizable) | ||
Coating Thickness | Topcoat: 15–25μm (PE) / 20–30μm (PVDF) | ||
Coating Type | PE (Polyester) / PVDF (Fluorocarbon) | ||
Back Coating | 5–15μm epoxy or polyester | ||
Protective Film | Optional (PE film, thickness 30–80μm) | ||
Color | RAL color series (customized) | ||
Coil ID | 508mm / 610mm | ||
Standard | ASTM A755, JIS G3312, EN 10169 | ||
Prepainted steel coils production workshop
| Key Features & Advantages | Applications | ||
| 1. PE Coating- Cost-effective, rich colors. Suitable for general outdoor environment. Service life: 5–10 years | Roofing & Wall Cladding: Metal roof panels, wall panels, sandwich panel facings, corrugated sheets | ||
| 2. PVDF Coating- Superior weather resistance, UV resistance, chemical resistance. Service life: 20–30 years. Ideal for coastal or heavy industrial areas | Steel Structure Buildings: Envelope systems for factories, warehouses, exhibition halls, stadiums | ||
| 3. Protective Film- Optional PE lamination prevents scratches during transport and processing. Removable after fabrication | Home Appliances: Refrigerator side panels, washing machine housings, microwave panels, AC covers | ||
4. Excellent Formability- Suitable for stamping, bending, roll-forming, deep drawing without coating peeling | Auto interior trim, truck panels, bus shelters, billboards | ||
5. Rich Colors and Eco-friendly: Full RAL color range, also available per customer sample; RoHS compliant. Heat-reflective options available | Interior Decoration: Ceiling panels, partition boards, security door panels |
Why Choose Fanda Prepainted Steel Coil?
| Why Choose us? | |||
| 1. 15+ years of steel industry experience | |||
| 2. Strict supplier sourcing – no downgraded materials | |||
| 3. Flexible MOQ – suitable for small and large projects | |||
4. Global export experience (Southeast Asia, Africa, Middle East, South America) | |||
5. Full technical support and after-sales service | |||
6. Welcome to visit our factory and we also visit some of our clients each year. |
Wood pattern or Matt color steel coil
