MG-H40-11 Hollow-Shaft Motor
group nameElbow Joint Motor
-
Min Order1 piece
brand nameSolismotor Custom Robot Joint Drives
-
update timeSat, 29 Aug 2026 00:26:52 GMT
Paramtents
Model MG-H40-11
Rated Torque 0.08N·m
Peak Torque 0.22N·m
Rated Power 16.8 W
Encoder 16-Bit, Dual Support
Communication CAN Bus / RS485
Protection IP54
Weight ~81.8g
Repeatability ±0.006°
Packging & Delivery
Min Order1 piece
Briefing
Detailed

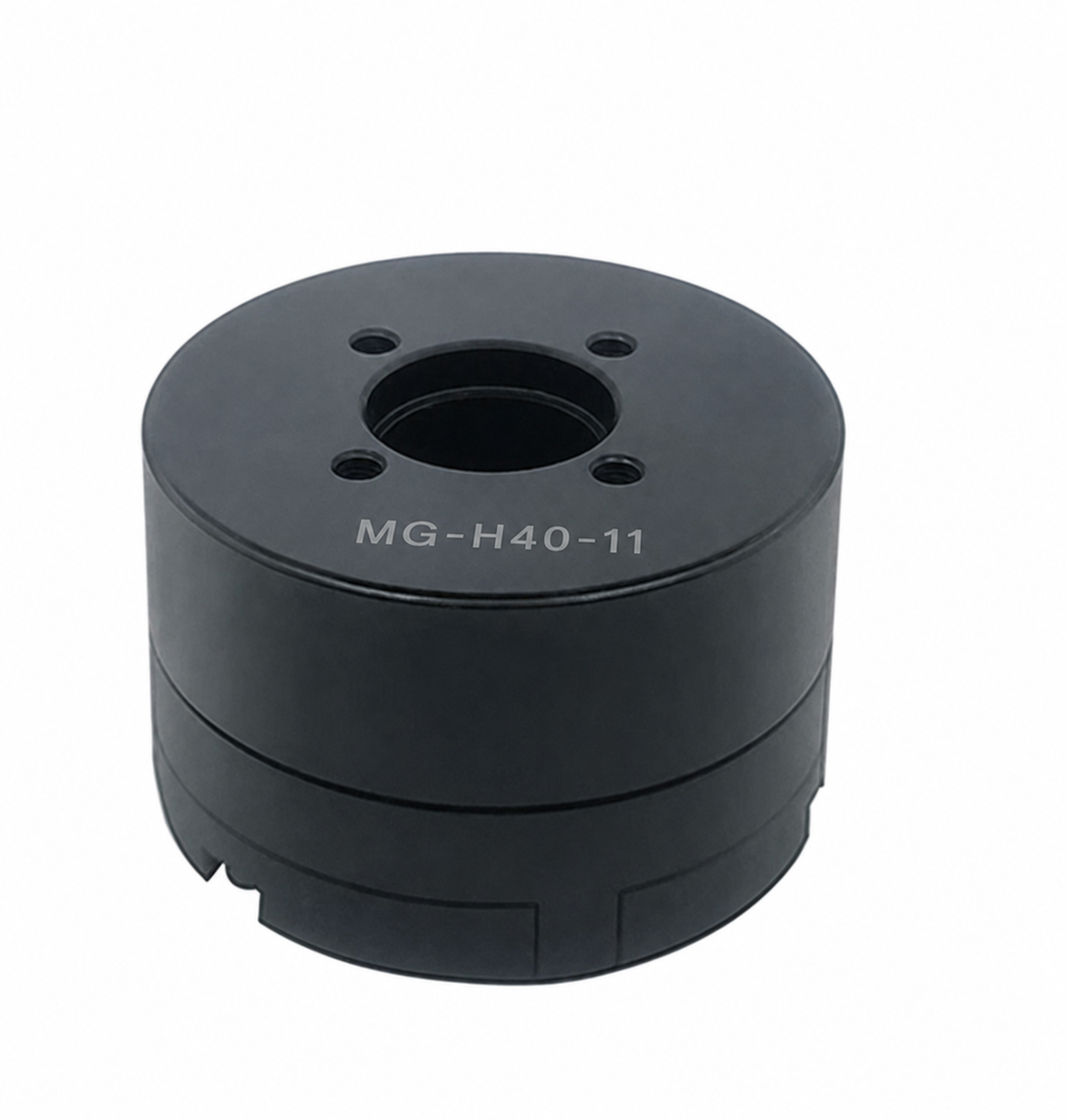

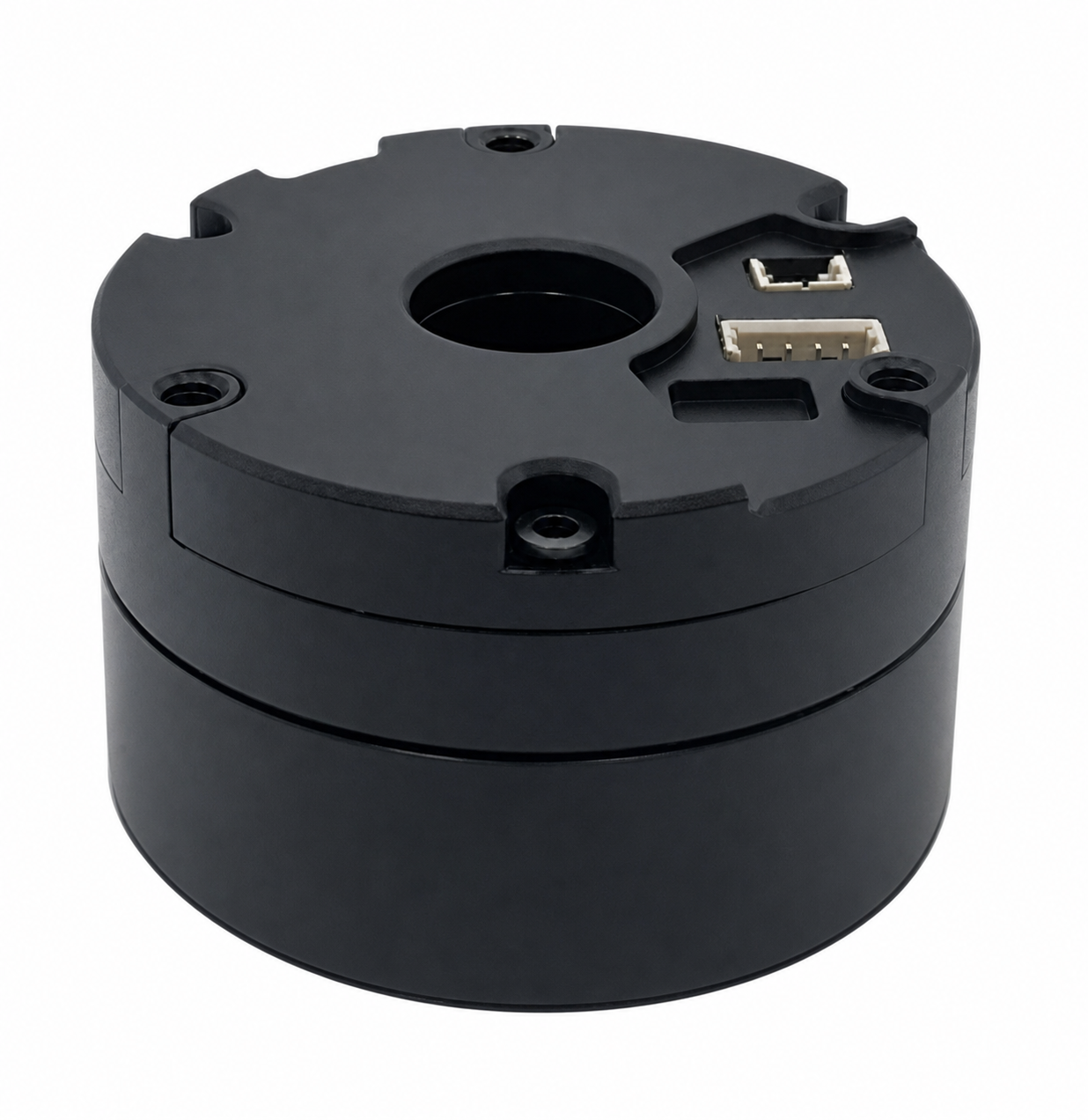

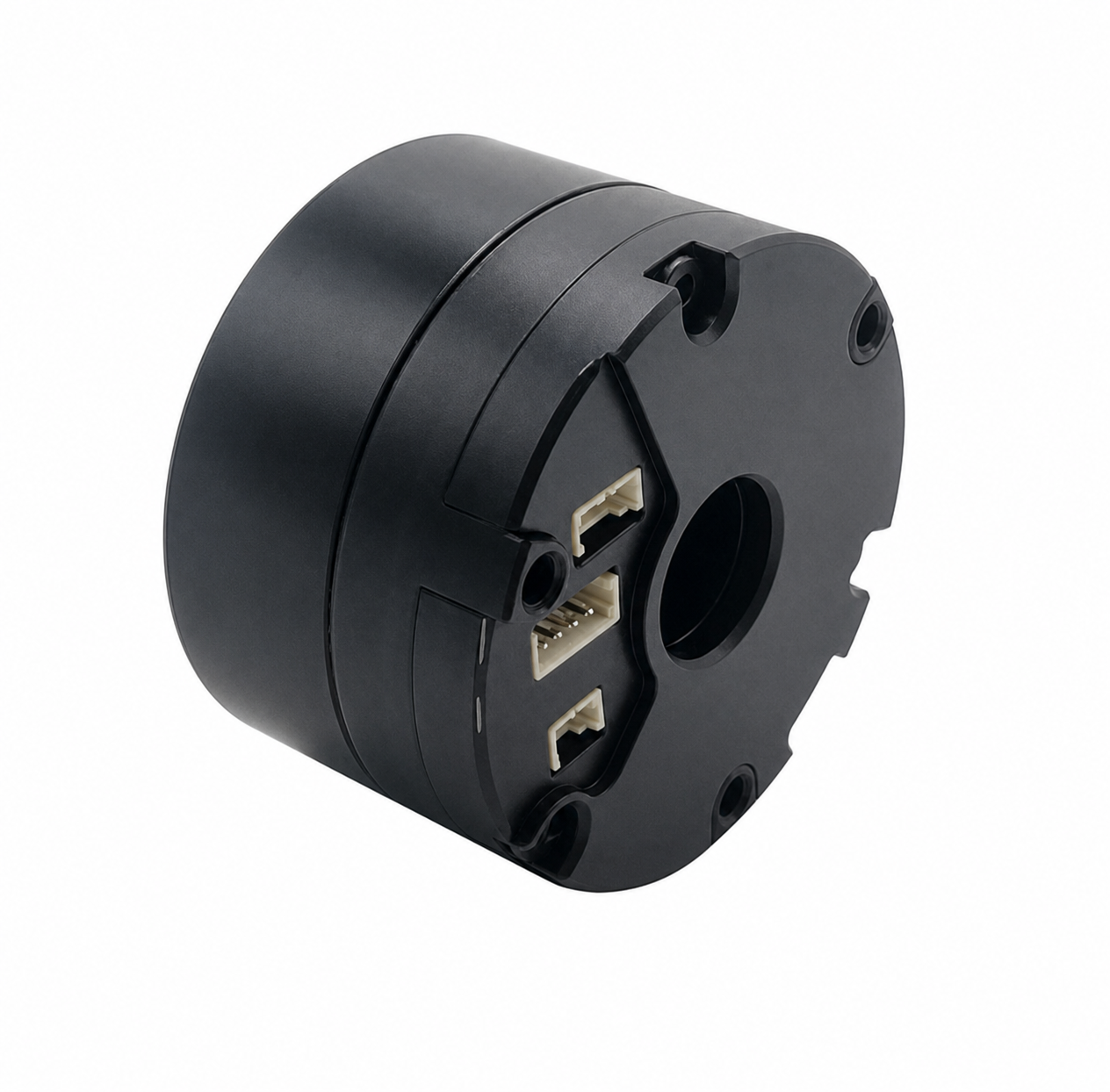

The MG-H40-11 is a compact hollow-shaft brushless servo motor designed for robotic applications. Within its compact Ø40 × 24 mm housing, it integrates a brushless servo motor, drive controller, and single-turn absolute encoder. Weighing only approximately 81.8 g, it enables closed-loop position, speed, and torque control in space-constrained installations. The motor features a hollow-shaft design with a minimum through-bore diameter of Ø11 mm. Cables, optical fibers, pneumatic tubes, and other components can be routed through the central bore, reducing interference and cable entanglement in rotating mechanisms. It is ideal for motion systems with demanding requirements for size, weight, cable management, and control accuracy. With an outer diameter of only 40 mm, an axial thickness of 24 mm, and a weight of approximately 81.8 g, the MG-H40-11 can be easily integrated into compact gimbals, rotary platforms, robotic joints, and precision instruments. Its lightweight construction helps reduce overall equipment weight and rotational inertia. The motor drive and absolute encoder are integrated into a single compact unit, reducing the need for external drivers, encoder boards, and connecting cables. This simplifies the electrical architecture, wiring, and assembly process. CAN and CAN FD control interfaces enable integration into multi-axis motion-control networks. A TTL configuration interface is also available for commissioning, parameter configuration, and system integration. With a rated operating noise level below 50 dB, the MG-H40-11 is suitable for gimbals, inspection equipment, laboratory instruments, service robots, and other noise-sensitive applications. Joint actuation for bipedal and full-body humanoid platforms Safe, precise motion for cobot arms and grippers Power assist and rehabilitation exoskeleton systems Robotics labs, university projects, and prototyping Surgical robots and rehabilitation equipment Automated guided vehicles and smart manufacturingMG-H40-11 Hollow-Shaft Motor
Product Advantages
Compact and Lightweight
Ø11 mm Hollow Bore
The motor provides a minimum Ø11 mm through-bore for routing power cables, signal wires, optical paths, or pneumatic lines through the rotation axis. This enables a more compact system layout and reduces the risk of cable entanglement during rotation.
Integrated Drive and Encoder
16-Bit Single-Turn Absolute Encoder
The integrated 16-bit single-turn absolute encoder provides immediate position feedback without requiring a conventional homing procedure after startup. Both repeatability and absolute positioning accuracy are rated at ±0.0125°, making it suitable for motion-control systems requiring precise angular feedback.CAN and CAN FD Communication
Low-Noise Operation
Technical Specifications
Key Applications
Humanoid Robots
Collaborative Robots
Exoskeletons
Education & Research
Medical Assistants
Smart Automation
