Shadow-Gap Stainless Steel Cladding System

group nameFlat Minimal Facade
Min Order1 piece
brand nameMetalMagus Decorative Stainless Steel Manufacturer
modelMM-304-BR-FC-S
payment methodT/T, L/C, D/P D/A
update timeFri, 23 Oct 2026 00:01:31 GMT

contact supplier

Paramtents

Material 304 stainless steel
Joint Defined shadow gap
Surface Brushed
Application Exterior and interior cladding

Packging & Delivery

Min Order1 piece

Briefing

Stainless cladding with a defined shadow gap, turning the joint itself into the detail instead of hiding it.

Detailed

A stainless cladding system where the joint is deliberately open. Instead of a sealed butt joint, a defined gap casts a shadow line, which reads as a drawn grid across the elevation and makes the panel module legible.

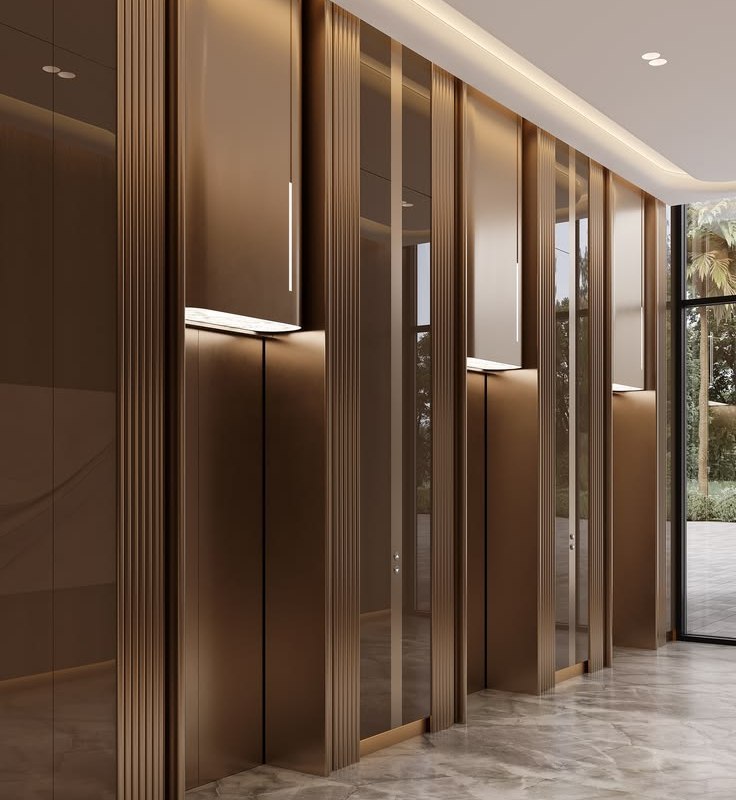

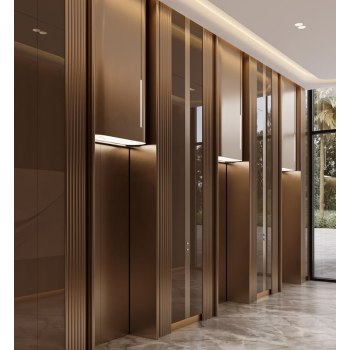

Stainless steel wall panels with a regular joint rhythm along a corridor — The gap draws the grid

Brushed stainless steel cladding with controlled reflection — Brushed surfaces suit open joints

Large curved stainless cladding forming a continuous plane — The gap follows the geometry

Why an open joint

An open joint absorbs tolerance instead of accumulating it. Small movements in the structure, and small variations in panel size, are taken up by the gap rather than pushing the module out of alignment. It also gives the elevation a scale that a sealed surface lacks.

Gap width

Gap width is chosen with the module: too narrow and it reads as a defect, too wide and the backing becomes visible. On a large field the gap is usually the smallest dimension that still reads at the intended viewing distance.

Detailing

Behind the gap sits a controlled return or backing so the shadow is consistent and no substrate shows through. The return is part of the panel scope rather than an on-site addition.

Sampling and quotation

An A4-size project sample is available within 3 days so the material can be judged under real light before it is specified. Initial quotation response is provided for qualified project inquiries, and MOQ with lead time is confirmed against the confirmed project scope rather than assumed from the product type.

See the wall and partition systems page or discuss a shadow-gap detail.
