Fine line width high resolution
Minimum seam width 0.01 - 0.03 mm, high line number graphics one-time molding, neat edges.

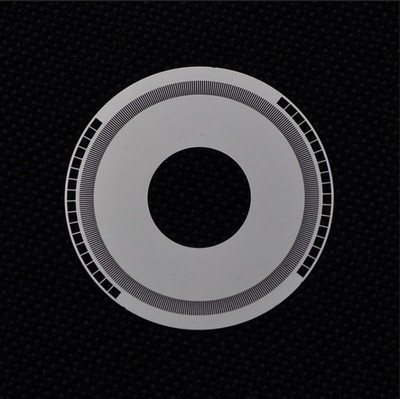

Etched Encoder Disc / Optical Scale — Custom / Optical Scale
group nameEncoders
-
Min Order1 piece
brand nameMicroEtch
payment methodT/T, L/C, PayPal, Westem Union
-
update timeTue, 20 Oct 2026 06:39:17 GMT
Paramtents
Material Stainless steel SUS304, brass, nickel
Specifications Machinable thickness 0.05-0.3mm; minimum width 0.05mm, angle accuracy within ±2′
Function Precision reticle shading/light transmission, accurate angular position feedback
Application Photoelectric encoder, resolver code plate
Industries Industrial automation, robots, precision instruments
Business Model Sensor factory supporting, small batch development to batch
Business Type OEM / ODM Manufacturer
Packging & Delivery
Min Order1 piece
Briefing
Photoelectric code plate etching custom, stainless steel/copper/nickel 0.05-0.3mm, high precision, uniform light transmission mouth without burrs, suitable for encoders, sensor factory matching custom.
Detailed

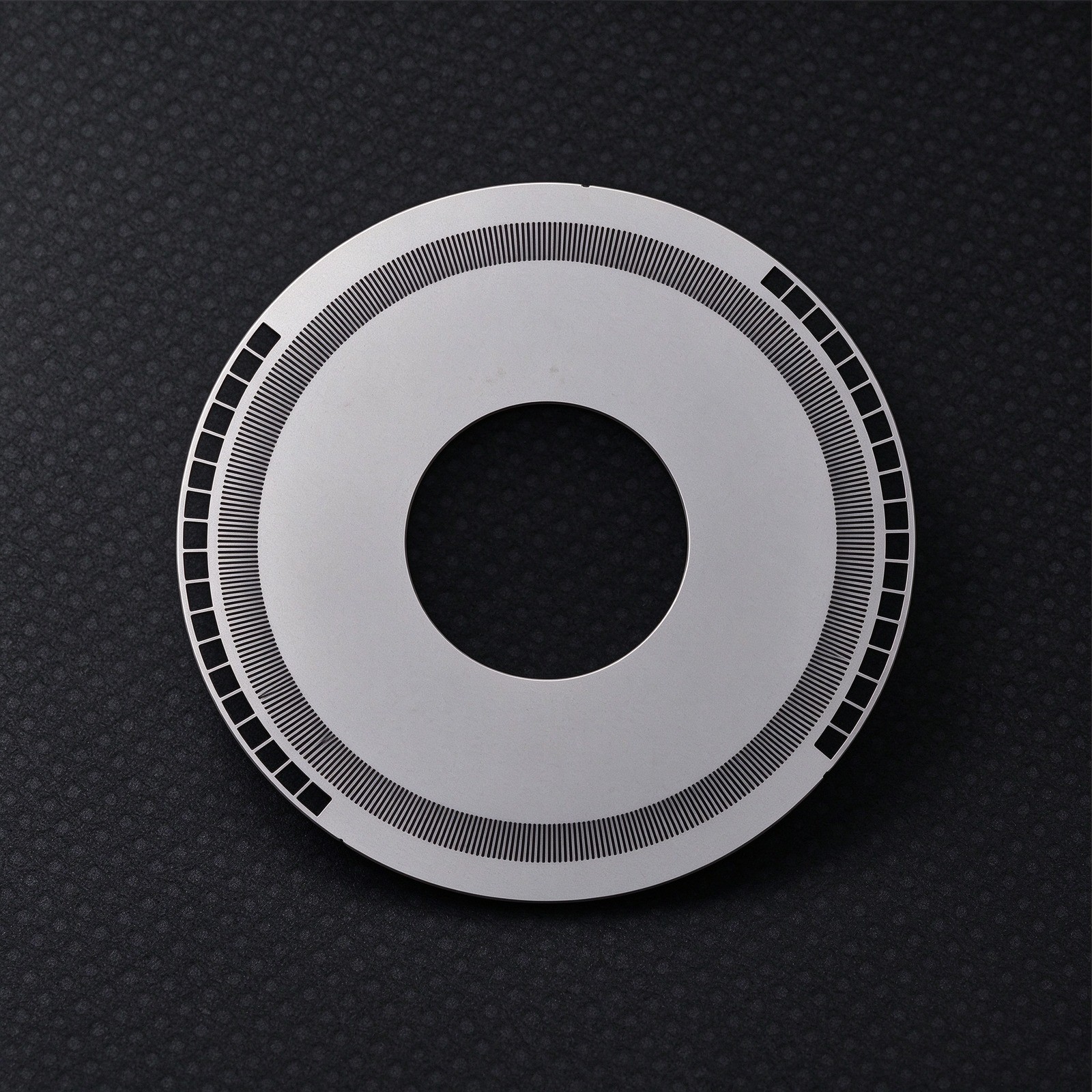

Etched Encoder Disc / Optical Scale for OEM / ODM Programs
Etched Encoder Disc / Optical Scale — Custom / Optical Scale
Etched Encoder Disc / Optical Scale is a precision metal part with micro-apertures, fine slots or custom geometry formed directly into SUS304 / SUS301 stainless steel, glass or ceramic — selected by resolution and thermal stability by photo-chemical etching — integrally formed and tooling-free. Its purpose is straightforward: high line counts etched in one pass with ≤0.02 mm concentricity for stable rotation signals.
What is it? High line counts etched in one pass with ≤0.02 mm concentricity for stable rotation signals Typical uses: Photoelectric encoder, resolver code plate
0 mould feeOptical film — revisions need no tooling
24 hoursSample turnaround
±0.01 mmStainless steel SUS304, brass, nickel
Why specify etched Encoder Disc / Optical Scale
Turn Your Encoder Disc / Optical Scale Requirement into a Manufacturable Part
Controllable concentricity and flatness
Concentricity ≤0.02 mm, flatness ≤0.05 mm, reduce rotation runout and phase error.
stress-free deformation
Non-contact chemical cold working, metal code plate sheet shape stability.
Product specification
Core Details for Sourcing Review
| Product type | Etched Encoder Disc / Optical Scale |
|---|---|
| Materials | Stainless steel SUS304, brass, nickel |
| Process | Photo-chemical etching, integrally formed |
| Specifications | Machinable thickness 0.05-0.3mm; minimum width 0.05mm, angle accuracy within ±2′ |
| Function | Precision reticle shading/light transmission, accurate angular position feedback |
| Applications | Photoelectric encoder, resolver code plate |
| Industries served | Industrial automation, robots, precision instruments |
| Business model | Sensor factory supporting, small batch development to batch |
| Tooling | Optical film based — no mould fee for design revisions |
| Sampling | Sample issued within 24 hours. 5–15 days for volume production |
Send us the encoder model and mounting method, disc diameter, bore and line count, resolution / phase accuracy and operating environment. We will recommend material, geometry and process, and issue a sample for validation.
Built around B2B buying paths
Support for OEM, Brand and Distribution Programs
Encoder and servo makers
line counts and pitch tailored to resolution, with 24-hour sampling.
Automation and metrology houses
metal discs tolerate vibration and temperature for industrial use.
Research and custom buyers
no MOQ, several line counts validated in parallel.
Send your drawing and requirement
Get Encoder Disc / Optical Scale Samples in 24 Hours
Send us the encoder model and mounting method, disc diameter, bore and line count, resolution / phase accuracy and operating environment. We will recommend material, geometry and process, and issue a sample for validation.
Start with the material grade, thickness and tolerance your application requires.
- Sample issued within 24 hours
- 5–15 days for volume production
- No MOQ — prototype and small batches accepted
Buyer FAQ
Questions Buyers Ask Before Enquiry
Can the line count be tailored to our resolution?
Yes — line count and pitch are calculated from the resolution; changes need only a new film.
Do metal discs distort?
Etching leaves no internal stress; with stress-relief flattening, flatness is ≤0.05 mm and run-out is controlled.
Can you process glass or ceramic?
Yes. Stainless, glass or ceramic can be selected by resolution, thermal stability and cost.
Are high line counts possible?
Line count follows minimum slit width and pitch: 0.03 mm typical, 0.01 mm at the limit.
