Etched EMI / RFI Shielding Component — Custom RFI Shielding Component

  • group nameEMI & RFI Shields

  • Min Order1 piece

  • brand nameMicroEtch

  • payment methodT/T, L/C, PayPal, Westem Union

  • update timeTue, 20 Oct 2026 09:36:01 GMT

Paramtents

  • Material nickel silver (C7701), SUS304 / SUS301 stainless steel…

  • Specifications 0 mould fee | 0.02 mm | 24 hours; etching tolerance ±0.01 mm…

  • Function Multi-cavity fine-slot shields etched in one pass with stable shielding effectiveness and a close…

  • Application RF and communication device makers / Consumer and automotive electronics / Semiconductor packagers

  • Industries Electronics / communication / automotive / semiconductor industry

  • Business Model OEM / ODM custom manufacturing from drawings; sample to volume production

  • Business Type OEM / ODM Manufacturer

Packging & Delivery

  • Min Order1 piece

Briefing

Multi-cavity fine-slot shields etched in one pass with stable shielding effectiveness and a close fit

Detailed

Etched EMI / RFI Shielding Component for OEM / ODM Programs

Etched EMI / RFI Shielding Component — Custom RFI Shielding Component

EMI / RFI Shielding Component is a precision metal part with micro-apertures, fine slots or custom geometry formed directly into nickel silver (C7701), SUS304 / SUS301 stainless steel, beryllium copper — selected by shielding and spring requirements by photo-chemical etching — integrally formed and tooling-free. Its purpose is straightforward: multi-cavity fine-slot shields etched in one pass with stable shielding effectiveness and a close fit.

What is it? Multi-cavity fine-slot shields etched in one pass with stable shielding effectiveness and a close fit Typical uses: RF and communication device makers / Consumer and automotive electronics / Semiconductor packagers

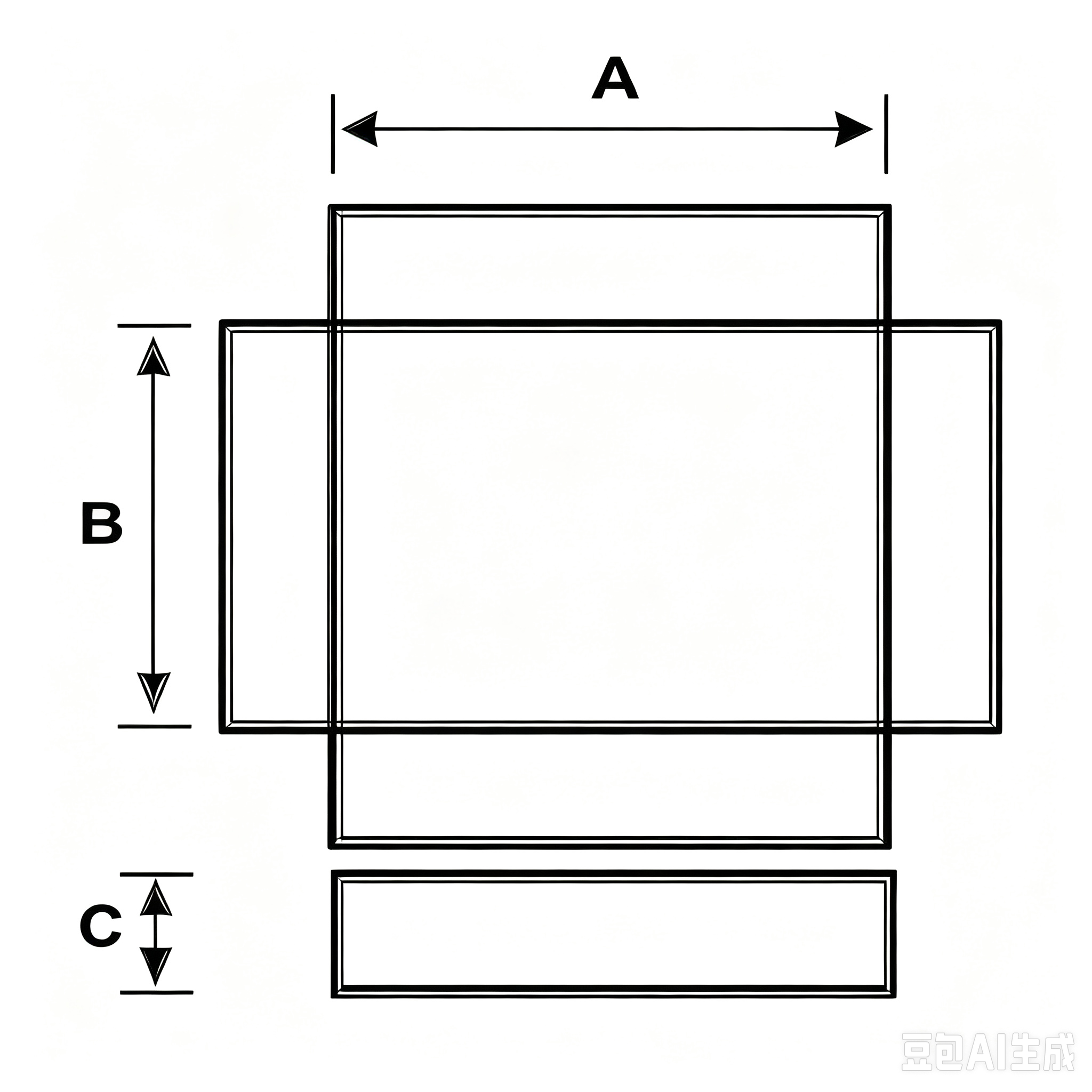

Etched EMI / RFI Shielding Component | precision photo-chemical etched by MicroEtch, ±0.01 mm tolerance, 24-hour sampling
Etched EMI / RFI Shielding Component — precision photo-chemical etched by MicroEtch, tolerance ±0.01 mm.
0 mould feeOptical film — revisions need no tooling
24 hoursSample turnaround
±0.01 mmnickel silver (C7701), SUS304 / SUS301 stainless steel…

Why specify etched EMI / RFI Shielding Component

Turn Your EMI / RFI Shielding Component Requirement into a Manufacturable Part

One-step forming of fine slits and micropores

Etching minimum line width/gap can be 0.02 - 0.05 mm, dense array and profile is not limited by the mold.

Side wall vertical without burrs

Non-contact chemical cold working, no stamping shear and collapse edge, avoid short circuit, scratch and poor contact.

Etching + stamping composite

Etching first, bending, pressing, half shearing, shielding cavity and buckle can be completed on the same part at one time.

Product specification

Core Details for Sourcing Review

Etched EMI / RFI Shielding Component | close view of etched features, edges and surface finish
Product typeEtched EMI / RFI Shielding Component
Materialsnickel silver (C7701), SUS304 / SUS301 stainless steel…
ProcessPhoto-chemical etching, integrally formed
Specifications0 mould fee | 0.02 mm | 24 hours; etching tolerance ±0.01 mm…
FunctionMulti-cavity fine-slot shields etched in one pass with stable shielding effectiveness and a close…
ApplicationsRF and communication device makers / Consumer and automotive electronics / Semiconductor packagers
Industries servedElectronics / communication / automotive / semiconductor industry
Business modelOEM / ODM custom manufacturing from drawings; sample to volume production
ToolingOptical film based — no mould fee for design revisions
SamplingSample issued within 24 hours. 5–15 days for volume production

Send us the machine model and shielding position, outline, cavity height and assembly method, shielding effectiveness target, plating and soldering requirements. We will recommend material, geometry and process, and issue a sample for validation.

Built around B2B buying paths

Support for OEM, Brand and Distribution Programs

RF and communication device makers

fine slots, micro-holes and custom cavities etched in one pass, samples within 24 hours.

Consumer and automotive electronics

etching combined with pressing for bent, dimpled and clipped parts, no outsourcing.

Semiconductor packagers

Kovar, nickel silver and beryllium copper processed to hermeticity and plating requirements.

Etched EMI / RFI Shielding Component | ready for integration — Electronics / communication / automotive / semiconductor industry

Send your drawing and requirement

Get EMI / RFI Shielding Component Samples in 24 Hours

Send us the machine model and shielding position, outline, cavity height and assembly method, shielding effectiveness target, plating and soldering requirements. We will recommend material, geometry and process, and issue a sample for validation.

Start with the material grade, thickness and tolerance your application requires.

  • Sample issued within 24 hours
  • 5–15 days for volume production
  • No MOQ — prototype and small batches accepted

Buyer FAQ

Questions Buyers Ask Before Enquiry

How fine can slots and hole arrays be?

0.05 mm typical, down to 0.02 mm at the limit, depending on material thickness.

What about bends and clips?

Parts are etched first and then pressed, so bends, dimples, half-shears and clips are all produced in one flow.

Can you process Kovar or beryllium copper?

Yes. Kovar, beryllium copper, nickel silver and SUS301 are all in regular production; sample first to validate.

Which plating should we choose?

Tin or nickel for solderable areas; gold for contact and conduction surfaces — tailored to salt-spray and contact-resistance requirements.
