group nameHeated Desiccant Dryer
Min Order1 piece
brand nameKL
modelKXR
payment methodL/C, T/T
update timeFri, 29 Nov 2019 15:30:55 GMT
Item heated desiccant air dryer with heater
Inlet pressure 7bar
Dew point -40°C
Purge loss 6~8%
Switch time 2 hours (adjustable)
Vessel Standard China GB, CE PED, ASME
Voltage 380V/50Hz/3Ph
Desiccant Activated Alumina
Min Order1 piece

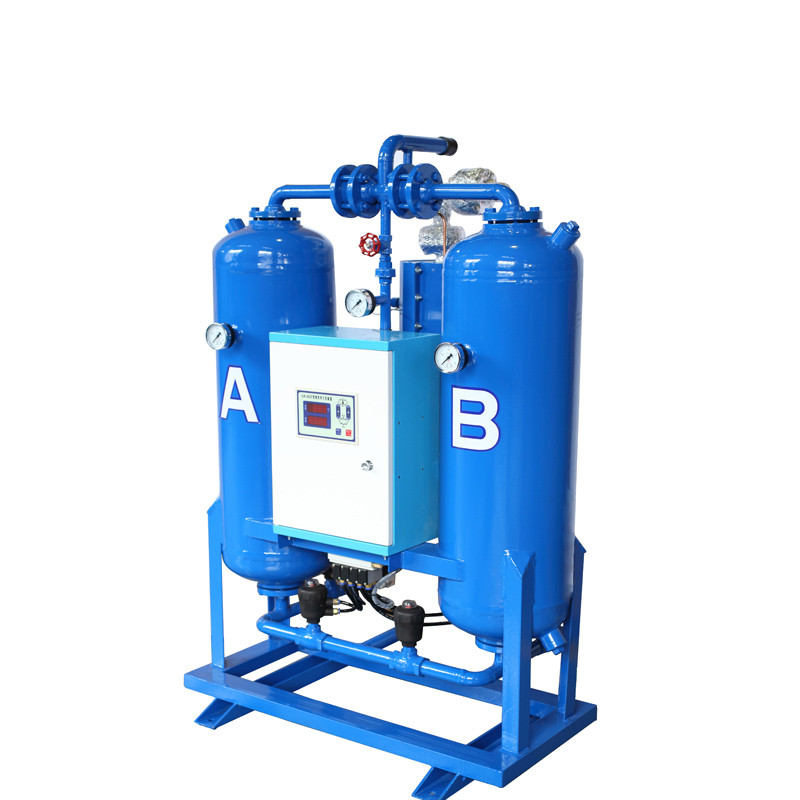

KXR- Series Heatled Desiccant air Dryer(0.7-510m3/min)
Descriptions
KXR Series heated adsorption air dryer includes an external electrical heater to heat dry purge air for desiccant regeneration. Heating allows the dryers to consume only 6% of the dried compressed air volume for this purpose – significantly less than is required for heatless air dryers. The flow capacity is available from 0.7 to 510m3/min,the outlet pressure dew point is - 40 deg c .
Features
High Performance pneumatic Valves
Oil-less pneumatic valves are designed specifically for high temperature applications and feature stainless steel internals and filled PTFE seats.
Pressure Gauges
Stainless steel gauges, located on each tower, provide visual indication of pressure during drying and regeneration processes.
Comprehensive presentation
Specifications
Model | Flow Capacity | Heater | Dimensions | Inlet/outlet Connection | Weight | |||
m3/min | CFM | kw | L(mm) | W(mm) | H(mm) | BSP | (kg) | |
KXR-5 | 0.7 | 25 | 0.9 | 690 | 500 | 915 | 1/2” | 120 |
KXR-10 | 1.6 | 56 | 0.9 | 690 | 500 | 1298 | 1” | 190 |
KXR-20 | 2.6 | 92 | 1.5 | 780 | 500 | 1324 | 1” | 280 |
KXR-30 | 3.8 | 134 | 1.5 | 860 | 540 | 1350 | 1” | 320 |
KXR-60 | 7 | 247 | 2.4 | 1010 | 700 | 1558 | 1 1/2” | 480 |
KXR-75 | 8.5 | 300 | 2.4 | 1010 | 700 | 1785 | 1 1/2” | 540 |
KXR-100 | 11.5 | 406 | 4.5 | 1240 | 800 | 2232 | 2” | 650 |
KXR-120 | 13 | 476 | 4.5 | 1240 | 800 | 2232 | 2” | 690 |
KXR-150 | 17 | 600 | 5.4 | 1280 | 860 | 2360 | DN65 | 780 |
KXR-200 | 23 | 812 | 7.5 | 1320 | 860 | 2477 | DN65 | 920 |
KXR-250 | 27 | 953 | 9 | 1700 | 930 | 2570 | DN65 | 1050 |
KXR-300 | 34 | 1200 | 10.8 | 1750 | 960 | 2626 | DN80 | 1200 |
KXR-400 | 45 | 1588 | 15 | 1850 | 1060 | 2646 | DN100 | 1530 |
KXR-500 | 55 | 1941 | 18 | 1850 | 1060 | 2646 | DN100 | 1750 |
KXR-600 | 65 | 2294 | 22.5 | 2160 | 1240 | 2784 | DN125 | 2230 |
KXR-800 | 87 | 3071 | 28.8 | 2416 | 1440 | 2827 | DN150 | 2710 |
KXR-1000 | 110 | 3883 | 37.5 | 2980 | 2120 | 2990 | DN150 | 4130 |
KXR-1200 | 130 | 4589 | 45 | 3080 | 2220 | 3030 | DN150 | 4700 |
KXR-1500 | 160 | 5648 | 56 | 3180 | 2320 | 3316 | DN200 | 5800 |
KXR-2000 | 210 | 7413 | 72 | 3380 | 2520 | 3360 | DN200 | 7370 |
KXR-2500 | 260 | 9178 | 90 | 3580 | 2720 | 3596 | DN250 | 9020 |
KXR-3000 | 320 | 10943 | 112.5 | 3580 | 2970 | 3606 | DN250 | 11900 |
KXR-3500 | 360 | 12708 | 124.8 | 3720 | 3220 | 3720 | DN300 | 13100 |
KXR-4000 | 410 | 14473 | 145.8 | 3910 | 3370 | 3910 | DN300 | 14800 |
KXR-5000 | 510 | 18003 | 170 | 4200 | 3600 | 4200 | DN350 | 16000 |
