group nameWire Connector
Min Order1 piece
brand nameCY
modelJA-5001
payment methodL/C, T/T, Western Union, MoneyGram
update timeTue, 07 Mar 2017 14:42:15 GMT
Description: Buttsplice type gel filled UY (K1) wire connector
Material: Polycarbonate
Maximum insulation O.D: 1.52mm (0.06 inches)
wire range: 22-26 AWG (0.4-0.7mm)
Color: Yellow
Crimping tool: JA-3050
Min Order1 piece

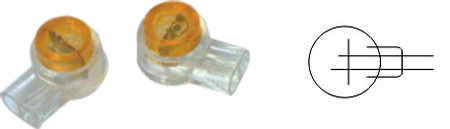

UY wire connector idc Tel-Splice Connector 22-26AWG Plastic gel filled
Description:
1. UY Butt Splice, 2 Wire Connector, Gel Filled,
2. Telecom Wire Splices, 22-26 AWG Telecom Cable Connector,
3. Can offer a quick and reliable way to connect insulated copper wires. The small size of the 2 port connector reduces the spicing bundle OD to a minimum.
Feature:
1. Used to connect two wires safely and rapidly with moistureproof.
2. Applied to the conductors with inner diameter of 0.4—0.7mm
3. Can connec the cable directly
4. You need’t to shuck off the covering layer when connecting,it can be compression in one time,junction with organic silicon grease oil sealed ,waterproof and antisepticize
5. There are UY,UY2,UR,UDW2 type etc
Item No | Maximum insulation | Wire Range | Item Name |
JA-5001 | 1.52mm | 0.4-0.7mm | UY |
JA-5002 | 2.08mm | 0.4-0.9mm | UY2 |
JA-5003 | 1.67mm | 0.4-0.9mm | UR |
JA-5009 | 2.08mm | 0.4-0.9mm | UR2 |
JA-5005 | 3.18mm | 0.9-1.3mm | U1B |
JA-5008 | 3.18mm | 0.5-0.9mm | U1R |
JA-5007 | 4.45mm | 0.9-1.3mm | UDW2 |
Module No | Package | Carton size(CM) | N.W(KG) | G.W(KG) |
JA-5001 | 2000pcs/box; 20000pcs/carton | 38X28X22 | 9.5 | 10 |
