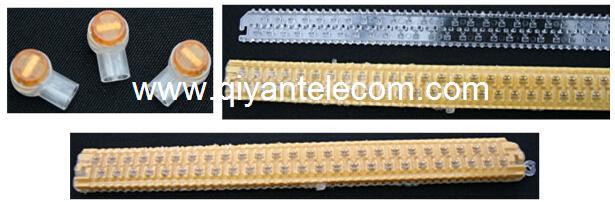

UY CONNECTOR FOR UTP cable splice K1 wire connector
group nameWire Connector
-
Min Order1 piece
brand nameCY
modelJA-5001
payment methodL/C, T/T, Western Union, MoneyGram
-
update timeThu, 02 Mar 2017 12:45:20 GMT
Paramtents
Description: K1 wire connector for general butt splicing
Material： Polycarbonate
applications: for a 2-wire
maximum insulation O.D of filled cable: 1.52mm (0.06inches)
solid copper conductor: 22-26 AWG ( 0.7-0.4mm )
Feature： Quick, easy one-step splicing
Packging & Delivery
Min Order1 piece
Briefing
UY CONNECTOR resist moisture to prevent corrosion for use on solid copper conductors. ,CONECTOR UY PARA EMPALME DE CABLE UTP
Detailed
UY CONNECTOR FOR UTP cable splice,CONECTOR UY PARA EMPALME DE CABLE UTP JA-5001
Description：
2. The connector’s two ports accept two solid copper conductors.
3. The connector is filled with a sealant to provide moisture resistance.
4. Quick, easy 1-step splicing - insert unstripped conductors and crimp
5. Economical - lower applied cost; IDC (installation displacement connectors), gas tight connections, no prestripping required, means minimal operator preparation.
6. Choose Crimping Tools JA-3050 to use with the UY connector.
Specifications:
2. Composition: Filled
3. Connector Type: Butt/2 Conductor
4. Flame Retardant: No
5. Insulation Outside Diameter: 0.06 Inch
6. Minimum Order: 10000 each
7. Operating Temperature Range : -40 to 140 Degree Fahrenheit
8. Product Type: Connector
9. Wire Gauge: 26 - 22 AWG
