High efficiency high safety oil boost pump
- US $5,000.00
1 - 40,000 set
- US $10.00
40,001 - 999,999 set
group nameGEAR/ROTOR OIL PUMP
-
Min Order1 set
brand nameRONDA
modelKCB,2CY,BP,WCB,S
payment methodT/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow
-
update timeMon, 17 Mar 2014 14:57:47 GMT
Paramtents
Theory Rotary Pump
Structure Gear Pump
Usage Oil
Power Electric
Standard or Nonstandard Standard
Fuel Electric
Pressure Middle
Application Oil booster pump
Working condition In or out door
Working performance Continuous
Packging & Delivery
Min Order1 set
Briefing
Detailed

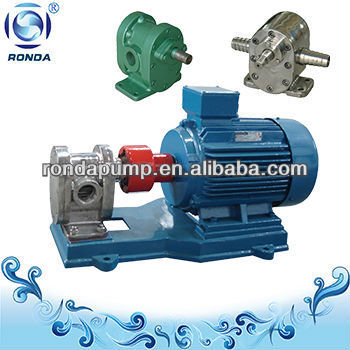

Oil boost pump
Oil booster pump is for oil or equivalent liquid without solids and fiber with normal temperature below 80°C, (high temperature model below 300°C). It is mainly used as oil delivering pump or boost pump in oil system or plants. Stainless and bronze models are able to pump speical oil like gasoline.
| Working Principle: | Double Gears |
| Main applications: | Oil |
| Driver: | Electric motor, diesel motor. |
| Power Specs: | 380/415 V 3phase; 220/240 V 1phase; 50hz/60hz,etc |
| Max. permissible fluid temperature: | 80 °C/300°C |
| Type of connection: | Flange, Thread, Quick Coupled. |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze |
| Shaft seal type: | Shaft seal ring; Mechanical seal; Packing Seal |
| Free passage: | 00 mm |
| Maximum viscosity: | 5X104CST |
| Maximum drive rating: | 250 kW 335hp |
| Maximum caliber: | 12 inch (300mm) |
| Maximum discharge-side pressure: | 1.45mpa (14.5bar) |
| Flow rate range: | 1.1-570 m³/h (18.3-9500l/m) |
Below specifications is based on 380v/50hz/3phase. Other power specs is available.
| Model | Caliber | Capacity | Pressure | Power |
| mm | L/min | mpa | kw | |
| KCB-18.3 | 3/4" | 18.3 | 1.45 | 1.5 |
| KCB-33.3 | 3/4" | 33.3 | 1.45 | 2.2 |
| KCB-55 | 1" | 55 | 0.33 | 1.5 |
| KCB-55 | 1" | 55 | 0.5 | 2.2 |
| KCB-83.3 | 1 1 /2" | 83.3 | 0.33 | 2.2 |
| KCB-83.3 | 1 1 /2" | 83.3 | 0.5 | 3 |
| KCB-200 | 2" | 83.3 | 0.33 | 3 |
| KCB-200 | 2" | 200 | 0.33 | 4 |
| KCB-200 | 2" | 200 | 0.33 | 4 |
| KCB-200 | 2" | 200 | 0.33 | 5.5 |
| KCB-200 | 2" | 200 | 0.33 | 5.5 |
| KCB-200 | 2 1 /2" | 200 | 0.33 | 7.5 |
| KCB-300 | 3" | 300 | 0.33 | 5.5 |
| KCB-300 | 3" | 300 | 0.33 | 7.5 |
| KCB-483.3 | 3" | 483.3 | 0.33 | 7.5 |
| KCB-483.3 | 3" | 483.3 | 0.33 | 11 |
| KCB-633 | 4" | 633 | 0.28 | 11 |
| KCB-633 | 4" | 633 | 0.28 | 22 |
| KCB-960 | 4" | 960 | 0.3 | 18.5 |
| KCB-960 | 4" | 960 | 0.3 | 30 |
| KCB-1667 | 6" | 1667 | 0.3 | 30 |
| KCB-1667 | 6" | 1667 | 0.6 | 55 |
| KCB-2000 | 6" | 2000 | 0.3 | 30 |
| KCB-2000 | 6" | 2000 | 0.6 | 55 |
| KCB-2500 | 6" | 2500 | 0.3 | 37 |
| KCB-2500 | 6" | 2500 | 0.7 | 75 |
