KCB Ronda Rotary Fuel Pump
- US $5,000.00
1 - 40,000 set
- US $200.00
40,001 - 999,999 set
group nameGEAR/ROTOR OIL PUMP
-
Min Order1 set
brand nameRONDA
modelKCB
payment methodT/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow
-
update timeMon, 17 Mar 2014 15:12:19 GMT
Paramtents
Theory Rotary Pump
Structure Gear Pump
Usage Oil
Power Electric
Standard or Nonstandard Standard
Pressure Low Pressure
Application oil transfer
Packging & Delivery
Min Order1 set
Briefing
2. Smart & impact, also easy to operate & maintain
3. Apply to pump various kinds of oil
Detailed

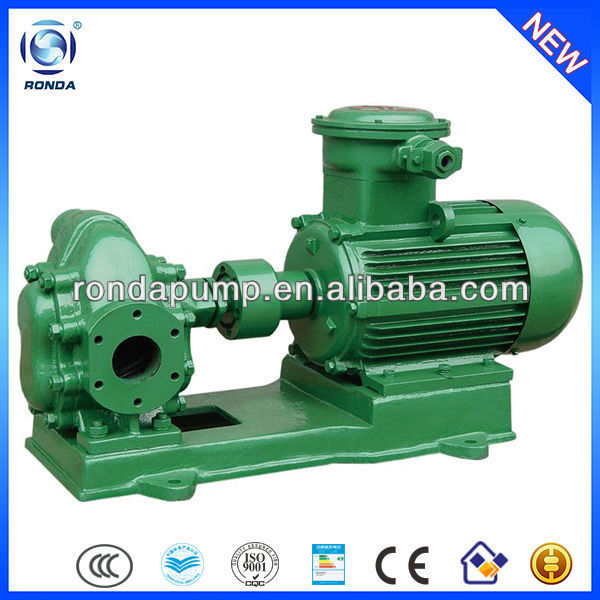

KCB Ronda Rotary Fuel oil Pump
1. Introduction:
1. KCB Ronda rotary fuel oil pump is capable of delivering non-corrosive oil that without solid particles & fiber. Such as lube, heavy oil, industry light oil, cooking oil, etc.
2. It can pump low flash point liquid when equipped with bronze gears.
3. It's horizontal reverse pump and is composed of casing, gear, bearing seat, relief valve, bearing and sealing device and so on.
4. The casing & bearing seat are made of cast iron.
2. Product details:
| Working Principle: | Double Gears |
| Main applications: | Oil |
| Driver: | Electric motor, diesel motor. |
| Power Specs: | 380/415 V 3phase; 220/240 V 1phase; 50hz/60hz,etc |
| Max. permissible fluid temperature: | 80°C(176°F)/300°C(572°F) |
| Type of connection: | Flange, Thread, Quick Coupled. |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze |
| Shaft seal type: | Shaft seal ring; Mechanical seal; Packing Seal |
| Free passage: | 00 mm |
| Maximum viscosity: | 1.5X103CST |
| Maximum drive rating: | 75KW(100HP) |
| Maximum caliber: | 150mm(6inch) |
| Maximum discharge-side pressure: | 1.45Mpa(14.5bar) |
| Flow rate range: | 18.3-2500L/min(4.8-660US.GPM) |
3. Performace data:
| Model | Caliber | Capacity | Pressure | Power |
| (Inch) | (L/min) | (MPa) | (KW) | |
| KCB-18.3 | 3/4" | 18.3 | 1.45 | 1.5 |
| KCB-33.3 | 3/4" | 33.3 | 1.45 | 2.2 |
| KCB-55 | 1" | 55 | 0.33 | 1.5 |
| KCB-55 | 1" | 55 | 0.5 | 2.2 |
| KCB-83.3 | 1 1/2" | 83.3 | 0.33 | 2.2 |
| KCB-83.3 | 1 1/2" | 83.3 | 0.5 | 3 |
| KCB-200 | 2" | 83.3 | 0.33 | 3 |
| KCB-200 | 2" | 200 | 0.33 | 4 |
| KCB-200 | 2" | 200 | 0.33 | 5.5 |
| KCB-200 | 2 1/2" | 200 | 0.33 | 7.5 |
| KCB-300 | 3" | 300 | 0.33 | 5.5 |
| KCB-300 | 3" | 300 | 0.33 | 7.5 |
| KCB-483.3 | 3" | 483.3 | 0.33 | 7.5 |
| KCB-483.3 | 3" | 483.3 | 0.33 | 11 |
| KCB-633 | 4" | 633 | 0.28 | 11 |
| KCB-633 | 4" | 633 | 0.28 | 22 |
| KCB-960 | 4" | 960 | 0.3 | 18.5 |
| KCB-960 | 4" | 960 | 0.3 | 30 |
| KCB-1667 | 6" | 1667 | 0.3 | 30 |
| KCB-1667 | 6" | 1667 | 0.6 | 55 |
| KCB-2000 | 6" | 2000 | 0.3 | 30 |
| KCB-2000 | 6" | 2000 | 0.6 | 55 |
| KCB-2500 | 6" | 2500 | 0.3 | 37 |
| KCB-2500 | 6" | 2500 | 0.7 | 75 |
4. FAQ:
6. Pitcures:
Excellent product made of carefully selected high-quality materials:
Meticulous details & fine apperance:
Safe packing with standard plywood case:
