Portable Gear oil pump WCB
FOB Price
- US $300.00
1 - 999,999 set
group nameGEAR/ROTOR OIL PUMP
-
Min Order1 set
brand nameRONDA
modelWCB30/50/75/100
payment methodL/C, D/A, D/P, T/T, Western Union, RMB is available
-
update timeThu, 13 Mar 2014 13:47:27 GMT
Paramtents
working principle gear displacement
voltage standrad 110v-220v-380v-415v-440v, 50/60hz, 1ph/3ph
merits portable
material c.i, ss, bronze
Packging & Delivery
Min Order1 set
Briefing
Gear oil pump WCB is small model oil pump which is portable. Private oil pumping operation is most easy with this pump.
Detailed

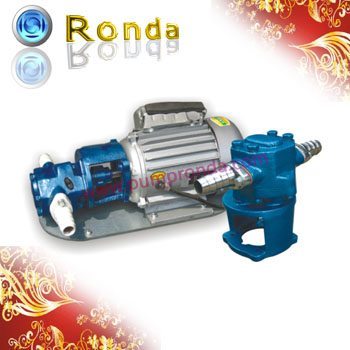

Gear Oil Pump WCB
WCB gear oil pump is small model oil pump which is portable. Pump can be made in stainless steel. Private oil pumping operation is most easy with this pump.
| Working Principle: | Double Gears |
| Main applications: | Oil |
| Driver: | Electric motor |
| Power Specs: | 380/415 V 3phase; 220/240 V 1phase; 50hz/60hz |
| Max. permissible fluid temperature: | |
| Type of connection: | Flange, Thread, Quick Coupled. |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze |
| Shaft seal type: | Shaft seal ring |
| Free passage: | |
| Maximum viscosity: | X103CST |
| Maximum drive rating: | 0.75 kW （10hp） |
| Maximum caliber: | 1 inch (25mm) |
| Maximum discharge-side pressure: | 0.3mpa (3bar) |
| Flow rate range: | 1.8- 7.5m3/h (30-75l/m) |
| Model | Capacity | Head | Weight | Power |
| L/min | (m) | (kg) | (w) | |
| WCB30 | 30 | 30 | 17 | 370 |
| WCB50 | 50 | 30 | 19 | 550 |
| WCB75 | 75 | 30 | 21 | 750 |
| WCB100 | 100 | 30 | 30 | 1100 |
| WCB30P | 30 | 30 | 18 | 370 |
| WCB50P | 50 | 30 | 21 | 550 |
| WCB75P | 75 | 30 | 23 | 750 |
| WCB100 | 100 | 30 | 33 | 1100 |
