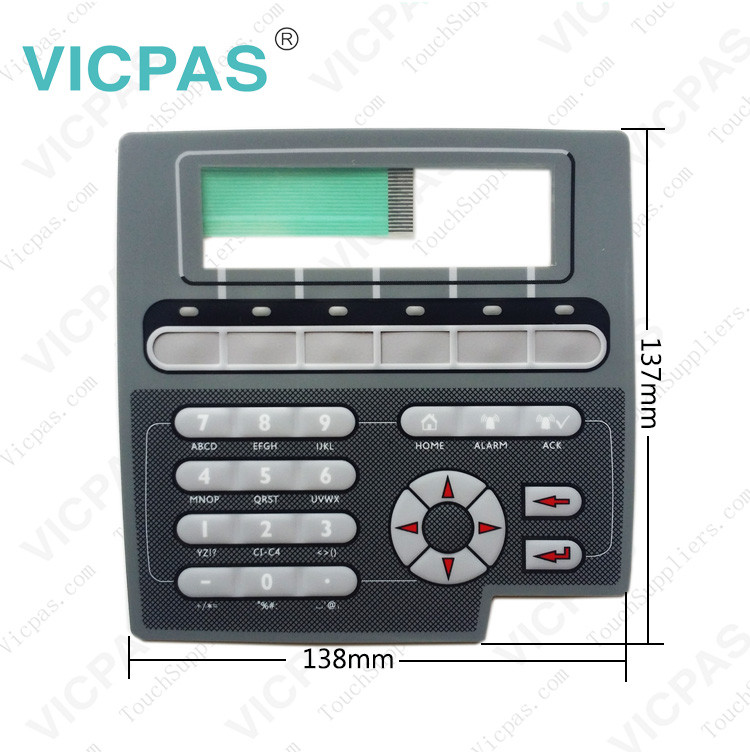

Membrane Keyboard for Beijer E1022 603111202 monochrome keypad
group nameE1000 operator panels
-
Min Order1 piece
brand nameVICPAS
modelBeijer E1022
payment methodWestern Union, MoneyGram, T/T, Paypal, PayPal, T/T ,Credit Card, Western Union
-
update timeFri, 10 May 2024 16:16:46 GMT
Paramtents
Brand Beijer
Warranty 180 days
Product Line E1000 Operator Panel
Size diagonal 240 x 64 pixels
Supply Beijer E1022 Membrane Switch
Part Number 603111202
Packging & Delivery
Min Order1 piece
Briefing
Detailed
E1022 603111202 Beijer E1000 Series Membrane Keyboard Repair Replacement
Beijer E1022 603111202 240 x 64 pixel monochrome keypad HMI Repair kit
The E1022 603111202 features:
•240 x 64 pixels
•FSTN display
•240 x 64 pixels
•Project storage 512KB
•Operating temperature 0 to +50 °C
•Serial, Enet w/Exp module
•6 keys / 6 LEDs
The E1000 operator panel is developed to satisfy the demands ofhuman-machine communication. Built-in functions such as displaying and controllingtext, dynamic indication, time channels, alarm and recipe handling are included.The operator panel work, for the most part, in an object-oriented way, making it easyto understand and use. The configuration operation of the panel is made in a personalcomputer, using the configuration tool E-Designer. The project is then transferredand stored in the operator panel.
VICPAS supply Beijer Exter E1022 membrane switch with 6 months warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the 603111202 Beijer E1022 HMI Parts.
| Brand: | Beijer |
| Numerical keypad: | YES |
| Input fuse: | Internal DC fuse |
| Warranty: | 6-Months Warranty |
| Product Line: | Beijer E1022 |
| Size diagonal: | 240 x 64 pixels |
| Part Number: | 603111202 |
| Housing material: | Powder-coated aluminium, grey |
| Input voltage: | 20 - 30 V DC |
| Display type: | Monochrome FSTN |
Beijer E1022 Operator Panel HMI Manuals PDF Download:
FAQ:
Question: How to install the Beijer E1022 Operator Panel?
Answer:1. Unpack and check the delivery. If damage is found, notify the supplier.
2.Place the panel cut out where the operator panel is to be situated, draw along theouter sides of the holes and cut according to the markings.
3.Secure the operator panel in position, using all the fastening holes and theprovided brackets and screws:
4.Connect the cables in the specified order.
5.Carefully remove the laminated film over the operator panel display, to avoidstatic electricity that could damage the panel.
Question: Why are Beijer 603111202 membrnae keypad with the chemical resisitace?
Answer:Beacuse Autotex F157 covers the membrane keyboard.
Question: What is E1022 603111202 Beijer E1000 Series Operator Panel mebrane keyboard HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
Common misspellings:
0311120163111201
60111201
60311201
60311201
