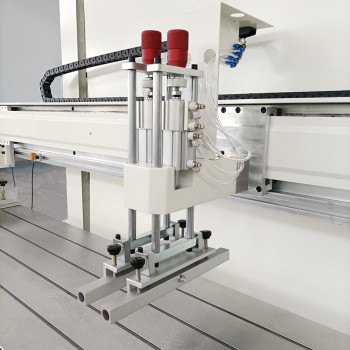

TX-40220ST Semi-Automatic Flat Screen Printing Machine for Long Strip Plastic Part
group nameSemi-Automatic Flat Screen Printing Machine
-
Min Order1 set
brand nameTAOXING Screen Printing Machines Manufacturer
modelTX-40220ST
payment methodT/T
-
update timeFri, 29 May 2026 06:42:14 GMT
Paramtents
Printing color Single color
Operating mode Semi-automatic
Printing speed 500 pcs/hr
Maximum mesh frame size 600*2400mm
Printing size 400*2200mm
Printing Thickness 50mm
Printing pressure 4.0~6.0 kfg/c㎡
Voltage/power 380V/50HZ / 4.5KW
Dimension 3000*800*1900m
Printing type Screen Printing Machine
Weight 1500 KG
Packging & Delivery
Size300cm x800cm x1900cm
Weight1500kg / set
Min Order1 set
Briefing
This 40220ST semi-automatic flatbed screen printing machine is suitable for flat printing on products such as long strips of glass, wood boards, metal sheets, and advertising signs . It is also suitable for flat printing on products with high registration accuracy requirements, such as gold and silver cardboard, thin metal sheets, and PVC as substrates.
Detailed
Introduction of TX-40220ST Semi-automatic Flat Screen Printing Machine
Application:
This TX-40220ST semi-automatic flatbed screen printing machine is suitable for flat printing on products such as long strips of glass, wood boards, metal sheets, and advertising signs . It is also suitable for flat printing on products with high registration accuracy requirements, such as gold and silver cardboard, thin metal sheets, and PVC as substrates.
Main performance
① Vertical structure, the vertical lifting of the screen is driven by a variable frequency electric motor, and the left and right movement of the printing head is driven by a variable frequency electric motor.
② The microcomputer control circuit uses independent motors to drive both printing and screen lifting .
③ The switching of the printing /return ink blade holder is driven by a Taiwanese brand cylinder , with the stroke controlled by a photoelectric eye and independently calibrated.
④ Three modes are set up: manual, semi-automatic, and fully automatic, with digital control of printing indirect time.
⑤ The independently designed head lifting device makes it convenient to load and unload the doctor blade/return blade, screen, and clean the screen.
⑥ The left and right mesh clamps are equipped with double guide posts and a plate spacing adjustment device for easy adjustment.
Specification
Model | TX-40220ST | |||||||
Table Size | 500*2300mm | |||||||
Substrate Thickness | 50 mm | |||||||
Max Printing Area | 400*2200mm | |||||||
Printing speed | 550 pcs/h | |||||||
Maximum screen frame size | 600*2400mm | |||||||
Stacking Height | 300mm | |||||||
Worktable Displacement | ±5mm | |||||||
Power Consumption | 380V/50HZ /3.0KW | |||||||
Printing pressure | 4.0~6.0 kfg/c㎡ | |||||||
Machine Dimension | 3000*700*1900mm | |||||||
Machine Weight | 1500KG | |||||||
Machine image
Printing samples
