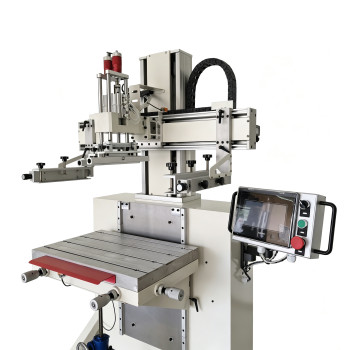

High Precision L -Type Dual Servo Flat Screen Printer Industrial Screen Printing Machine For Metal Box
group nameSemi-Automatic Flat Screen Printing Machine
-
Min Order1 set
brand nameTAOXING Screen Printing Machines Manufacturer
modelTX-4060SF-L
payment methodT/T
-
update timeThu, 16 Jul 2026 10:38:43 GMT
Paramtents
Printing color Single color
Operating mode Semi-automatic
Printing speed 800 pcs/hr
Maximum mesh frame size 700*900mm
Printing size 400*600mm
Printing Thickness ≤600mm
Printing pressure 4.0~6.0 kfg/c㎡
Voltage/power AC220V / 1.2 KW
Dimension L1400 *W900 * H1850 mm
Printing type Screen Printing Machine
Weight 200KG
Platform size 500*700mm
Printing accuracy ± 0.05mm
Packging & Delivery
Size140cm x90cm x185cm
Weight200kg / set
Min Order1 set
Briefing
Suitable for high-precision positioning printing of various plastic boxes, electrical boxes, sheet metal chassis, medicine boxes and other cuboid products .
Detailed
Introduction of TX-4060SF-L Dual Servo Flatbed Screen Printing Machine
Application
This Dual Servo Flatbed Screen Printing Machine is suitable for high-precision positioning printing of various plastic boxes, electrical boxes, sheet metal chassis, medicine boxes and other cuboid products .
Main performance
① PLC program control circuit, human-machine interface control, user-friendly operation.
②Vertical structure, the screen moves vertically up and down, and the printing head moves left and right.
③ The printing and screen lifting mechanisms use independent drive sources, ensuring coordinated movements and stable, adjustable speeds.
④ The printing press holder is driven by a servo system, and the stroke is controlled by a photoelectric eye, with independent adjustment.
⑤ The printing drive servo motor ensures smooth operation.
⑥ The printing platform is height-adjustable , and is equipped with precision micro-adjustment handles in both horizontal and vertical directions for accurate micro-adjustment and convenient color registration.
⑦ It has three printing modes: manual, semi-automatic, and fully automatic, with digital control of the automatic printing indirect time (1~9 seconds).
⑧ The independently designed head lifting device makes it convenient to load and unload the doctor blade/return blade, screen, and clean the screen.
⑨ The left and right mesh clamp arms are equipped with a screen spacing adjustment device for easy adjustment.
⑩ The angle and balance of the squeegee and ink return can be adjusted.
⑪ The printing table adopts a vacuum suction work surface, which makes it easy to fix the printing sheet .
Specification
Model | TX-4060SF-L | |||||||
Platform Size | 500*700mm | |||||||
Substrate Thickness | ≤60mm | |||||||
Max Printing Area | 400*600mm | |||||||
Printing speed | 500-800 pcs/h | |||||||
Maximum screen frame size | 700*900mm | |||||||
Printing product height | ≤600mm | |||||||
Worktable Displacement | ±5mm | |||||||
Power Consumption | 220V/50HZ /1.2KW | |||||||
Printing pressure | 0.5-0.7 MPa | |||||||
Machine Dimension | L1400 *W900 * H1850 mm | |||||||
Machine Weight | 200KG | |||||||
Machine image
Printing Samples
Configuration Instructions
① The machine is controlled by a microcomputer .
② The circuit uses Delixi AC contactors and Philicos photoelectric proximity switches.
③ The printing process uses a Taiwanese brand geared motor and a Taiwanese brand frequency converter to control the printing drive.
④ The printing doctor blade and ink return blade are controlled by pneumatic components from a Taiwanese brand .
⑤ The left and right horizontal scraping uses HIWIN precision linear guides made in Taiwan.
⑥ The printing plate is filled with an aluminum honeycomb structure, with a hard anodized surface and suction holes .
After-sales service
①support for all products shipped from our factory .
②After installation and commissioning, it comes with a one-year free warranty (for consumable parts and damage caused by human error), and lifetime maintenance.
③We conduct regular visits for maintenance, on-site operation, and technical training.
④After-sales service content:
▲In case of a malfunction, first try contacting the equipment by phone. If the problem cannot be resolved, our company will arrive on-site as soon as possible to resolve it.
▲After-sales service includes not only equipment repair and maintenance, but also dedicated support for process technology. Our technical staff can provide on-site technical training and offer screen printing process technology, information and equipment solutions.
▲Professional technicians will visit users periodically to monitor the usage of their equipment.
▲Repair and maintenance of screen printing equipment and auxiliary equipment.
▲Design and customize screen printing equipment and auxiliary equipment for special products.
