MT-500F unwinder for metal coil handling
group nameMT-F Heavy Duty Decoiler Machine
-
Min Order1 piece
brand nameHongEr
modelMT-500F
payment methodT/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
-
update timeWed, 03 Jul 2019 09:47:35 GMT
Paramtents
Function Automatic Decoiling Machine
Feature Heavy Decoiler
Name Hydraulic Uncoiler Machine
Compact Flattening Machine
Usage Big heavy duty Uncoiler (Decoiler) Machine
attribute Material coiler
Packging & Delivery
Min Order1 piece
Briefing
Decoiler machine works with straightener and servo feeder in coil handling. Unwinding sheet metal steel coil for metal stamping
Detailed
MT-500F unwinder for metal coil handling

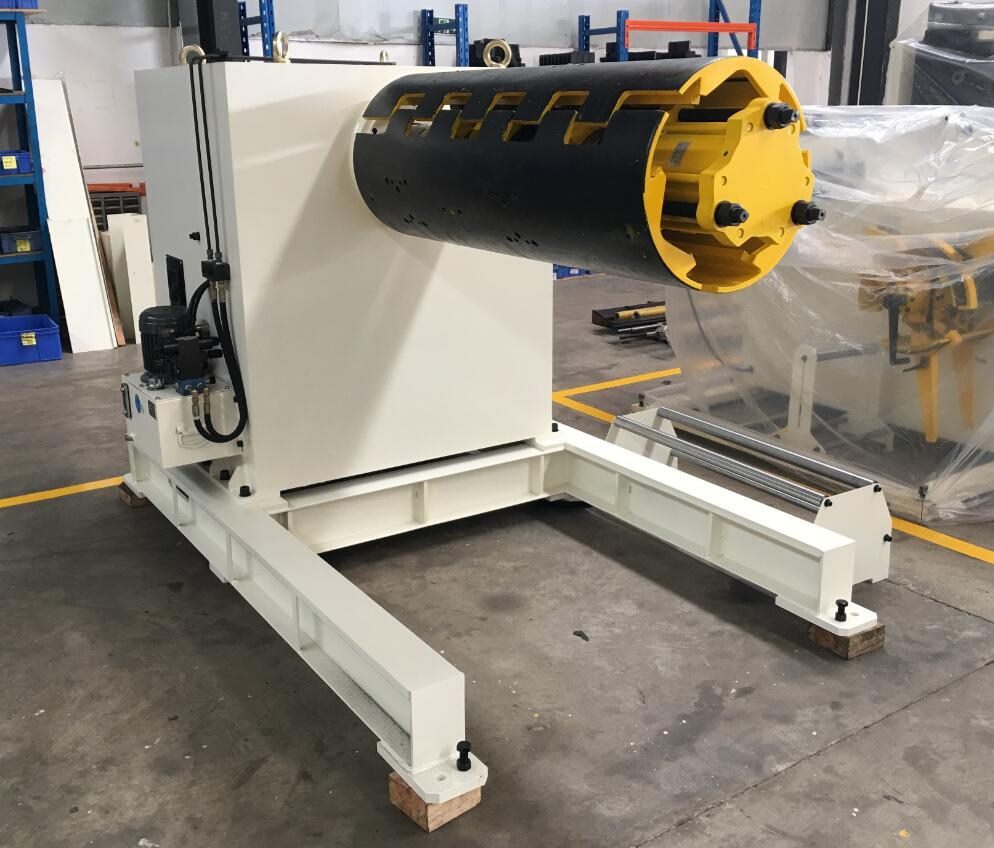

Photo Show
Description
MT-500F decoiler machine
Usage:
1, Suits for sheet metal coil in thickness from 0.2mm to 3.2mm;
2, Used in metal stamping line or cutting line;
3, Works for material like steel, stainless steel, carbon steel, aluminum, copper, GI steel;
Features:
1, The mandrel is blackening to prevent oxidation and can load heavy metal sheet coil;
2, The expansion way is hydraulic;
3, The pressing arm is pneumatic type;
4, Coir car is optional;
5, With Delta inverter to control speed;
6, The frame body is subject to sand blasting so as to remove the dust and weld spot and increase the adhesive of painting.
specification
Model |
MT-500F |
||||
Coil width(mm) | 500mm | ||||
Coil thickness(mm) |
0.1-3.2mm |
||||
Coil I.D.(mm) | 480-530mm | ||||
Coil O.D.(mm) |
1200mm |
||||
Meterial weight(kg) | 3000kg | ||||
Expansion | Hydraulic | ||||
Pressing arm | Pneumatic Type | ||||
Inverter | Delta, Taiwan | ||||
Application
Coil Uncoil Machine is used in metal coil handling line compacted with automatic feeder machine and press machine.
It works for all kinds of metal coil sheet as aluminum sheet, stainless steel, cold rolled steel sheet, steel coil sheet, copper, etc.
MT-F automatic decoiler machine with coil car
exported to Indonesia
Metal stamping solution suggestion:
Decoiler + Straightener + NC servo feeder + Press
MT-500F decoiler machine
MT-500F heavy uncoiler machine
exported to Slovenia
Metal stamping solution suggestion:
Decoiler + Straightener + NC servo feeder + Press
