MT-300F Uncoiler Machine For Heavy Metal Coil Capacity With Pneumatic Pressing Arm
group nameMT-F Heavy Duty Decoiler Machine
-
Min Order1 piece
brand nameHongEr
modelMT-300F
payment methodT/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
-
update timeWed, 03 Jul 2019 10:35:53 GMT
Paramtents
Function Automatic Decoiling Machine
Feature Heavy Decoiler
Name Hydraulic Uncoiler Machine
Compact Flattening Machine
Usage Big heavy duty Uncoiler (Decoiler) Machine
attribute Material coiler
Packging & Delivery
Min Order1 piece
Briefing
Decoiler machine works with straightener and servo feeder in coil handling. Unwinding sheet metal steel coil for metal stamping
Detailed

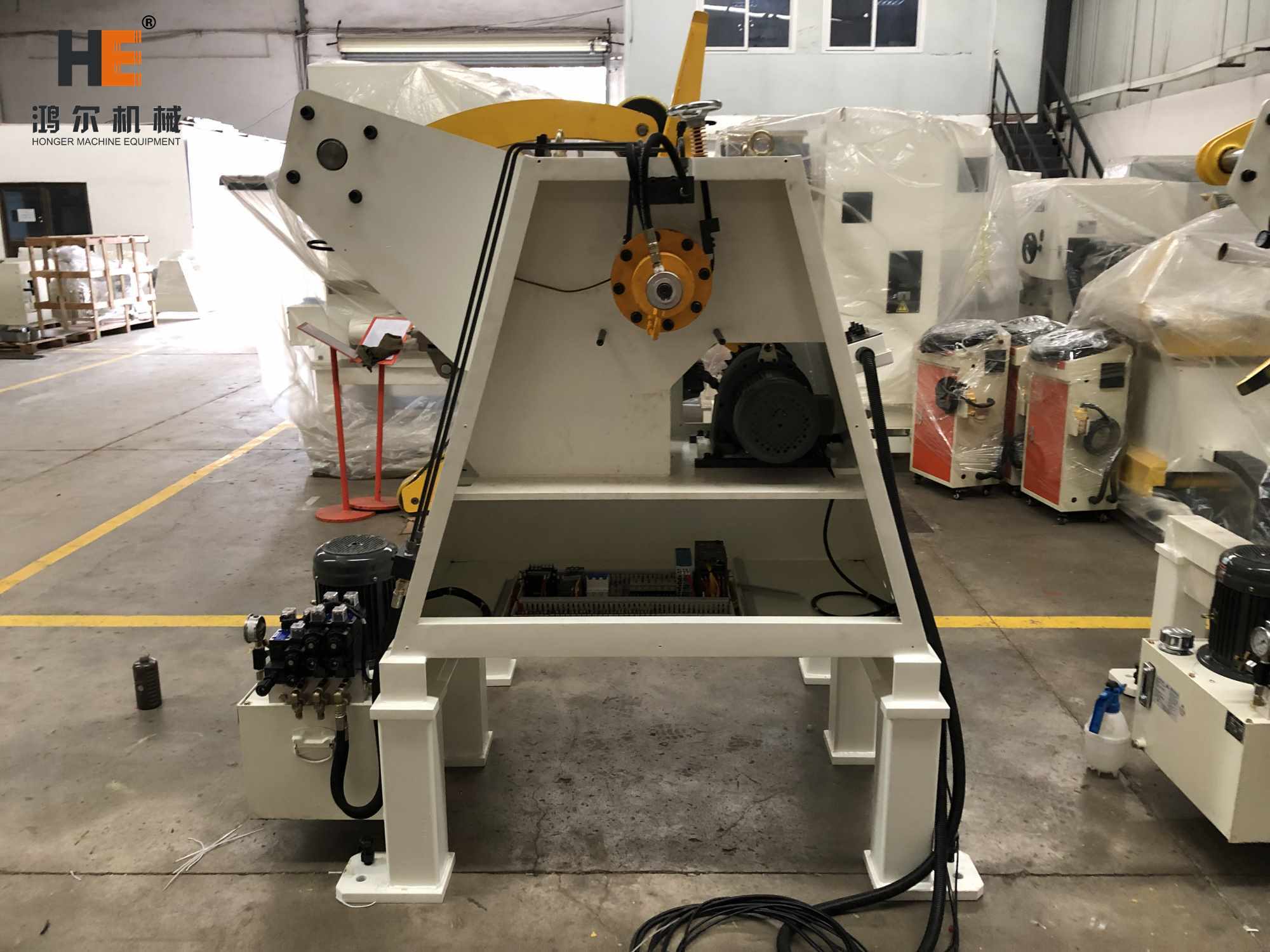

MT-300F Uncoiler Machine For Heavy Metal Coil Capacity With Pneumatic Pressing Arm
Photo Show
Description
MT-F decoiler machine
Usage:
1, Suits for sheet metal coil in thickness from 0.2mm to 3.2mm;
2, Used in metal stamping line or cutting line;
3, Works for material like steel, stainless steel, carbon steel, aluminum, copper, GI steel;
Features:
1, The mandrel is blackening to prevent oxidation and can load heavy metal sheet coil;
2, The expansion way is hydraulic;
3, The pressing arm is pneumatic type;
4, Coir car is optional;
5, With Delta inverter to control speed;
6, The frame body is subject to sand blasting so as to remove the dust and weld spot and increase the adhesive of painting.
specification
Model |
MT-500F |
||||
Coil width(mm) | 500mm | ||||
Coil thickness(mm) |
0.1-3.2mm |
||||
Coil I.D.(mm) | 480-530mm | ||||
Coil O.D.(mm) |
1200mm |
||||
Meterial weight(kg) | 3000kg | ||||
Expansion | Hydraulic | ||||
Pressing arm | Pneumatic Type | ||||
Inverter | Delta, Taiwan | ||||
Application
Decoiler machine for heavy metal coils handling is uncoiling automatically. It is suitable for thicker metal sheet and can compact straightener feeder machine in metal stamping line.
MT-F automatic decoiler machine with pressing arm
exported to Germany
Metal stamping solution suggestion:
Decoiler + Straightener + NC servo feeder + Press
