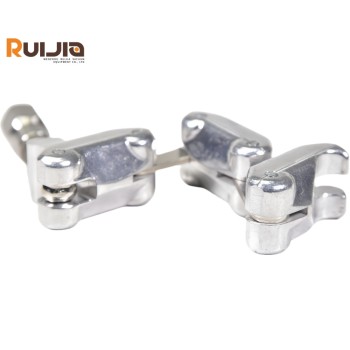

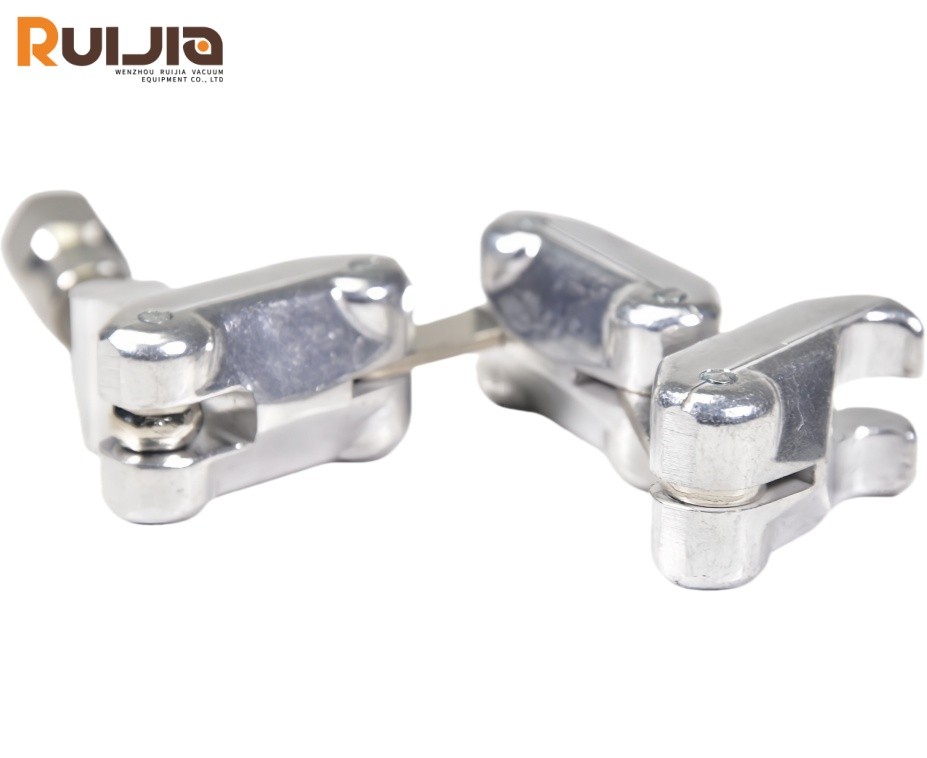

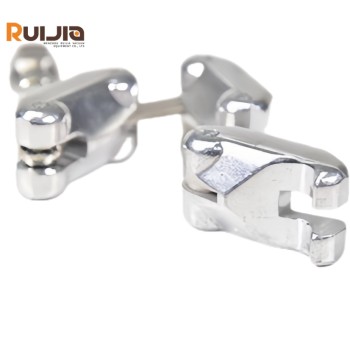

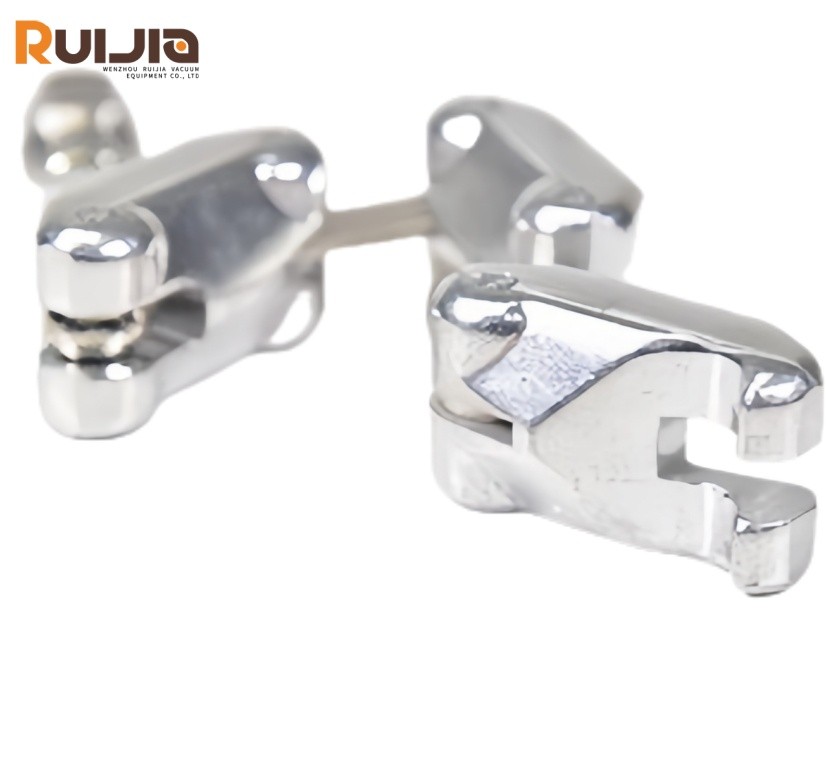

KF Vacuum flange chain clamp Aluminium KF16-KF63
group nameKF Vacuum Clamps
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeFri, 15 Aug 2025 11:03:43 GMT
Paramtents
Product Name KF Vacuum flange chain clamp Aluminium KF16-KF63
Size KF10,KF25,KF40,KF50,KF63
Seal material Viton,Silicone,Buna-N seal
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packging & Delivery
Min Order1 piece
Briefing
KF flanges fittings clamp, KF clamps fittings is made of SS304/SS316.size range:KF16-KF50.Working Pressure:Vacuum~atmosphere pressure.
Detailed
KF Vacuum flange chain clamp Aluminium KF16-KF63 feature
Advantage
●Fast opening and closing: The unique design allows the chain clamp to open and close quickly, facilitating quick installation and removal operations in vacuum systems.
●Strong sealing force: the design of the chain clamps provides high sealing force and ensures good vacuum sealing of the connection area by applying uniform pressure to the KF flange, preventing gas leakage.
●Safe and reliable: Equipped with safety screw clips to avoid accidental loosening or “tripping” of the chain clamps, ensuring safety and stability during vacuum system operation.
KF Vacuum Flange Chain Clamp Aluminium KF16-KF63 specifications
| Product Name | KF Vacuum chain clamp Aluminium KF16-KF63 |
| Brand | RUIJIA |
| Size | KF10,KF25,KF40,KF50,KF63 |
| Material | SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 |
| Seal material | Viton,Silicone,Buna-N seal |
| Standard | KF Standard |
| Temperature | -200~800℃ |
| Working Pressure | Vacuum~atmosphere pressure |
| Helium Leak Test | 1×10 -9 Pa・m³/sec or less |
| Packing | sealed plastic bag with a protective plastic cap. |
| KF Vacuum clamp types | KF bulkhead clamp,KF spring clamp with plastic nut,KF spring clamp with wing nut,KF toggle clamp with lock,KF chain clamp(KF16-63),KF chain clamp(KF80-200) |
KF Vacuum Flange Chain Clamp Aluminium KF16-KF63 parameters
KF Vacuum flange chain clamp Aluminium KF16-KF63 Unit:mm
KF Vacuum flange chain clamp Aluminium KF16-KF63 detail
| Model No. | Flange size | Material | A | B | T |
| CC-K-16 | KF10/16 | Block Aluminum | 22 | 56 | 20.3 |
| CC-K-25 | KF25 | Block Aluminum | 32 | 66 | 20.3 |
| CC-K-40 | KF40 | Block Aluminum | 46 | 80 | 20.3 |
| CC-K-50 | KF50 | Block Aluminum | 69 | 100 | 20.3 |
| CC-K-63 | KF63 | Block Aluminum | 78 | 112 | 20.3 |
