Tri-Ply Clad Disc - Stainless Steel + Aluminum + Stainless Steel Cookware Blank
group nameStainless Steel
-
Min Order1 bag
brand nameMESCO Steel Wholesaler
modelSS-Al-SS
payment methodT/T, L/C
-
update timeSat, 29 Aug 2026 00:27:03 GMT
Paramtents
Material 304 Stainless Steel + 1060 Aluminum + 304 Stainless Steel
Construction Tri-Ply (SS/Al/SS) Clad
Total Thickness 2.0 - 6.0 mm (customizable)
Stainless Steel Grade 304 / 304L / 316 / 316L / 430 / 443
Aluminum Grade 1060 / 1050 / 1100 / 3003 / 5052
Application Cookware (pots & pans)
Packging & Delivery
Min Order1 bag
Briefing
Detailed
MESCO tri-ply clad discs bond two outer layers of food-grade 304 stainless steel with a high-conductivity aluminum core, delivering even heat distribution, warp resistance, and lasting durability for premium cookware lines. Every layer — material grade and thickness — can be customized to your production requirements. Each clad disc is a metallurgically bonded sandwich of stainless steel and aluminum, giving cookware manufacturers the best of both metals: stainless steel for corrosion resistance and induction compatibility, aluminum for fast, even heat transfer. 304 Stainless Steel Aluminum (1060) 304 Stainless Steel The aluminum core spreads heat quickly across the whole surface, eliminating hot spots and preventing scorching. The magnetic 304 outer layer works on gas, electric, induction, ceramic, and halogen cooktops. Non-reactive 304 stainless steel is certified to FDA, LFGB, and EU 1935/2004 standards. Uniform grain structure and bond strength ensure clean forming on your production line. Balanced SS-Al-SS construction resists warping even under commercial-kitchen heat. You specify grade, thickness, and diameter — we clad it to your exact specification. Dial in heat performance versus cost by customizing every layer independently. 304, 304L, 316, 316L, 430, or 443 to match your market and performance target. 1050, 1060, 1100, 3003, or 5052 for the right conductivity and formability. From a 0.3/1.5/0.3 mm economy build to a 0.8/3.0/0.8 mm heavy-duty commercial build. Yes. You can independently specify the top stainless layer, the aluminum core, and the bottom stainless layer thickness. 304 is standard. We also clad with 316, 316L, 430, and 443 to match your target market. Yes. The magnetic stainless steel outer layer works on all induction cooktops. Yes. Paid samples ship within 7–10 days and are refunded against your bulk order. The standard MOQ is 500 pieces per specification, with trial orders available for new partners. Standard specifications ship in 15–25 working days after order confirmation. Tell us your target diameter, total thickness, layer breakdown, and material grades — our engineers will spec the right clad disc and quote within one business day.Tri-Ply Clad Disc — Stainless Steel + Aluminum + Stainless Steel Cookware Blank

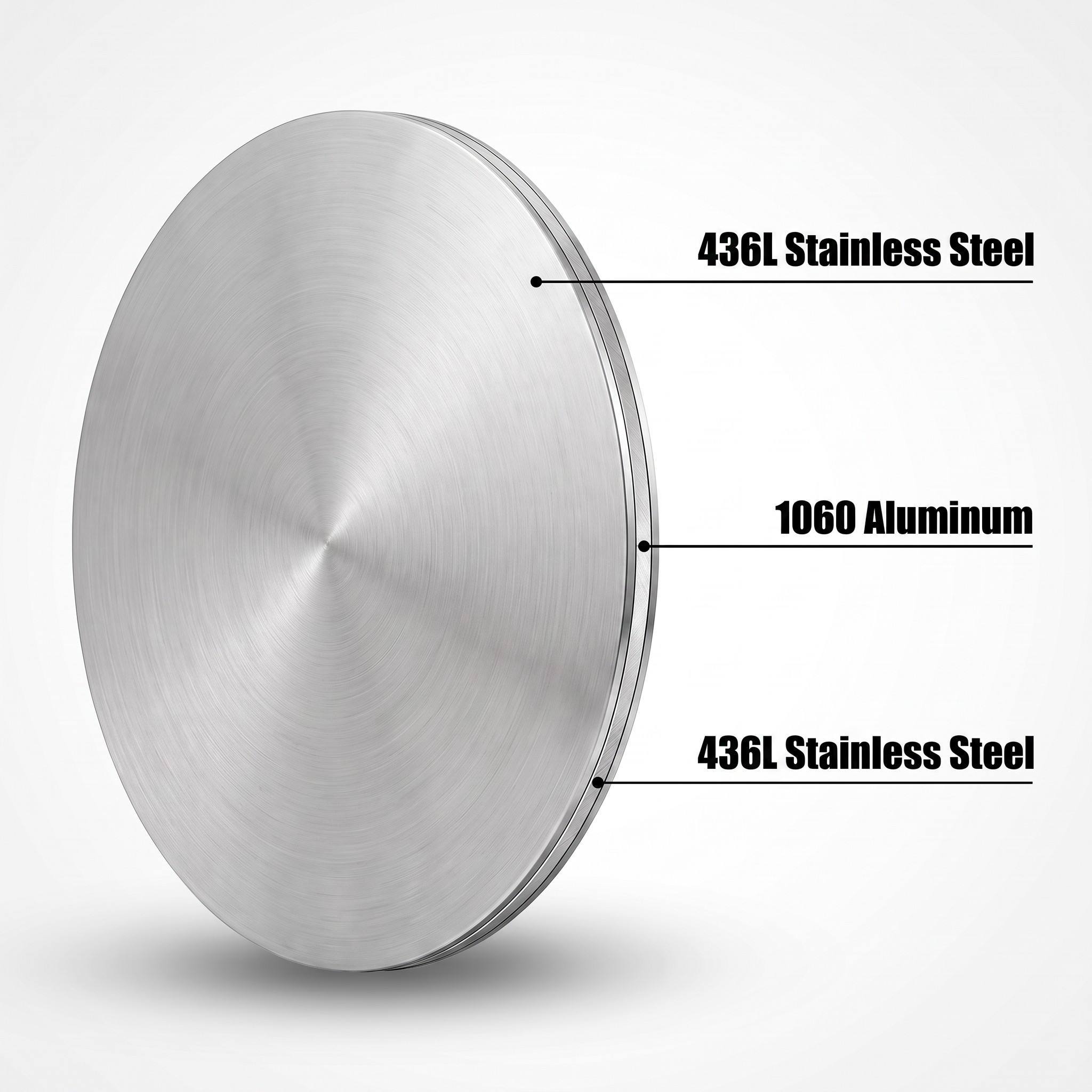

Three-Layer Clad Construction
Top Layer
Core
Bottom Layer
Why Choose MESCO Tri-Ply Clad Discs
Even Heat Distribution
All-Cooktop Ready
Food-Safe & Corrosion Resistant
Built for Deep Drawing
Warp-Free Performance
Full OEM / ODM Support
Technical Specifications
Construction 3-ply (Stainless Steel / Aluminum / Stainless Steel) Stainless Steel Grade 304 (standard); 304L / 316 / 316L / 430 / 443 optional Aluminum Grade 1060 (standard); 1050 / 1100 / 3003 / 5052 optional Total Thickness 2.0 mm – 6.0 mm (customizable) Disc Diameter 120 mm – 500 mm (customizable) Surface Finish 2B / BA / brushed / satin / mirror Bonding Method Cold rolling + vacuum diffusion welding Food Safety FDA, LFGB, EU 1935/2004, NSF (optional) MOQ 500 pcs per spec (trial orders negotiable) Full Customization Options
Stainless Steel Grade
Aluminum Alloy
Per-Layer Thickness
Cookware Applications
Fry Pan / Sauté Pan 200–320 mm diameter, 3.0–3.5 mm total thickness Saucepan 160–240 mm diameter, 2.5–3.0 mm total thickness Stockpot / Dutch Oven 240–400 mm diameter, 3.5–5.0 mm total thickness Wok 280–360 mm diameter, 3.0–4.0 mm total thickness Pressure Cooker Base 180–260 mm diameter, 3.5–4.0 mm total thickness Egg Pan / Mini Skillet 120–180 mm diameter, 2.5–3.0 mm total thickness Manufacturing Process
Frequently Asked Questions
Can I customize the thickness of each layer?
Which stainless steel grades are available?
Are the discs induction-compatible?
Do you provide samples before bulk orders?
What is the minimum order quantity?
What is the typical lead time?
Request a Custom Quote
