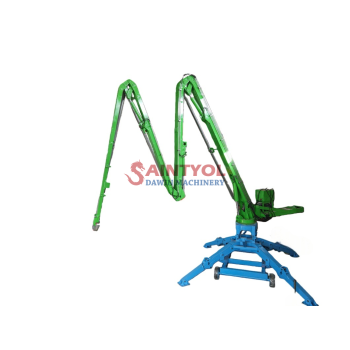

group nameConcrete Placing Boom
Min Order1 set
brand nameSaintyol DAWIN Construction Machinery Manufacturer
modelHGY23
payment methodL/C, T/T
update timeMon, 26 Feb 2024 16:05:57 GMT
Motor 22KW
Max. Placing height (m) 26.5m
Placing Radius 23m
Boom Sections 4 M
Certificates CE , SafeWork
Weight 8000kg
Weight8000.00kg / set
Min Order1 set
Pipeline diameter | φ125 |
Radius of placing boom(m) | 23m |
Max. Placing height (m) | 26.5m |
Drive mode | Fully hydraulic drive |
Slewing range | 360° |
Hose length | 3m |
Hydraulic System Power | 22kw |
System Pressure | 32Mpa |
Rotary speed | 0.32r/min |
Weight (including counterweight ) | 10200kg |
Weight (Without counterweight ) | 8000kg |
Boom Section Arm Length | 6839/5089/5069/5832 |
Corner(°) | 90/180/220/180 |
