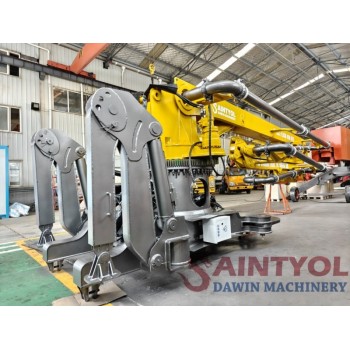

18m Compact Loader Attached Concrete Placing Boom 4 Sections "M" Folding
group nameConcrete Placing Boom
-
Min Order1 set
brand nameSaintyol DAWIN Machinery
modelHGY18/4M
payment methodL/C, T/T
-
update timeThu, 26 Mar 2026 21:40:33 GMT
Paramtents
Power 12V or 24V Customized
Placing Radius 18m
Boom Sections 4 M
Certificates CE , SafeWork
Weight 5600kg
Packging & Delivery
Weight10500kg / set
Min Order1 set
Briefing
HGY18/4M compact loader attached concrete placing boom use compact loader hydraulic system as the compact loader attachment for flexible jobs application.
Detailed
HGY18/4M Compact Loader Attached Concrete Placing Boom
Instruction:
Saintyol DAWIN Compact Loader Attached Mobile Concrete Placing Boom 18 meter 4 sections M Shape
This HGY18/4M 18m mobile concrete placing boom use compact loader hydraulic system as the compact loader attachment for flexible jobs application.
Saintyol DAWIN 4 sections "M" shape folding concrete placing boom arms is the special design for efficiency and flexible concrete pouring on job site, this mobile concrete placer with cordless remote control and proportional valve for joy fantastic operation experience.
Features:
A.Auto robot cordless remote control system.
B.Proportional valve, manual levers and control system in options to ensure the placing boom could work normally in any conditions when meet problems or not.
C.Crack detection in welding manufacturing process to keep each concrete placing boom would be in safe working on job sites before shipping.
D.Labors saving.The robot concrete placing boom mechanical arm with cordless remote control and 18m is 4 sections "M" folding, very effective in light weight and labor saving on job sites.One man to control it easily.
E.Less wearing parts.There is no extra wearing parts to the concrete placing booms except for 1 year life changing the hydraulic oil filter and the delivery pipes in 50000m3 and more.
F.Easier transportation and installation. This HGY18/4M 18m mobile concrete placing boom use compact loader hydraulic system as the compact loader attachment for flexible jobs application.
G.Concrete pump partner. the concrete placing boom is the right end solution of concrete pumping system, it could be moved and touch to the every place sites on the jobs platforms.
H.Saintyol DAWIN machinery could customize the different lengths concrete placing booms to match different client requirement for exact jobs applications to make your tools special and effective.
Specifications:
型号 Model HGY18/4M
布料臂长 Horizontal reach（m） 18m
回转角度 Rotation（°） 360°
俯仰角度 Elevation angle(°) 0～84°
回转制动 Slewing brake 常闭 Normally closed
工作环境温度 Working environment temperature -5℃～40℃
自重 Weight 6000 t
底盘跨距chassis Span 2500mm adjustable
支腿跨距 Outrigger Span 4230×4230
控制系统Control System 电源 Power 24V/12V
防护等级 Protection grade IP54
绝缘等级 Insulation class F
系统压力 System Pressure (MPa) 32
控制方式 Control mode Cable/Radio Remote
臂架Boom 输送管清洗方式 Duct cleaning method 水洗/干洗Wash/Dry cleaning
臂架打开方式 Boom open way 四节M型 FOUR M
输送管径Inner diameter of delivery pipe（mm） Φ125
末端软管End rubber hose （m） 3
长度Length（mm） 6500/3600/3600/4300
转角Corner（°） 84/180/180/180
Working Range:
HGY18/4M Design Drawing:
HGY18/4M Live Photos :
Saintyol DAWIN Special 4 sections Flexible "M" Shape Concrete Placing Boom Design:
Testing Video:
