TR-603HZ 30 square computerized wire stripping machine (Wire diameter range:0.75-30mm²)
group nameComputer Wire Stripping Machine
-
Min Order1 piece
brand nameTuring
modelTR-603HZ
payment methodWestern Union, MoneyGram, T/T
-
update timeTue, 14 Jul 2026 14:13:52 GMT
Paramtents
Power AC220/110V/60HZ/50HZ
Name wire cutting machine
Cutting length 1mm-999999.99mm
Scope of processing 0.75-30mm²
Contact CoCo +86 18666170785
Packging & Delivery
Min Order1 piece
Briefing

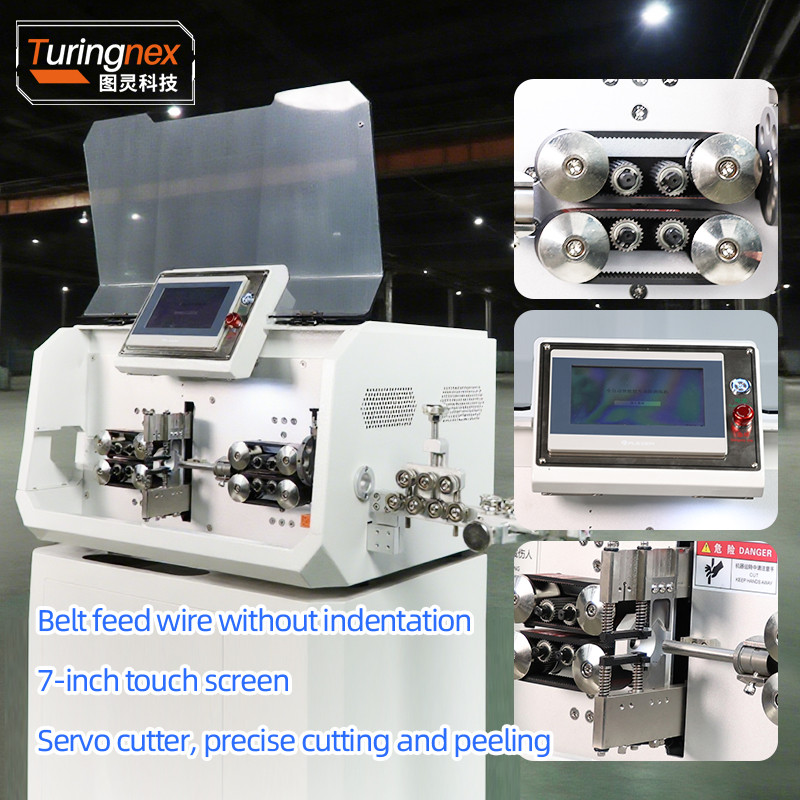

TR-603HZ 30 square computerized wire stripping machine
CoCo +86 18666170785
CoCo +86 18666170785
Detailed
TR-603HZ 30 square computerized wire stripping machine
Size and weight: 680x605x520mm, 100kg
Display: 7-inch human-machine interface
Functions: ① single-core wire, multi-core cable line, shielded cable, automatic fixed-length cutting, stripping;
② multi-core sheath line, outer skin stripping, inner core line stripping, cutting off a complete.
③ with the middle of the cut open peeling function, both ends of the cut open peeling function
Type of conductor: single-core wire, multi-core cable, shielded cable, wire, PVC, etc.
Processing range: 0.75-30mm ²
Cutting length: 1mm-999999.99mm
Cutting tolerance: within 0.002 * L (L = cutting length)
Stripping length: before peeling: the outer sheath is fully stripped 10-200mm, the inner core 1-50mm after peeling: the outer sheath is fully stripped 10-200mm, the inner core 1-50mm. -50mm
Rear Stripping: outer sheath 10-80mm, inner core 1-50mm
Stripping Speed: 3500 PCS/hour, sheath 900pcs/H (depending on the wire)
Feeding Method: Belt Feeding, no embossing and scratching on the cable. (with stripping and pressurizing function)
Driving mode: 16 wheels drive (feeding stepping motor, knife frame \ rotary knife servo motor); optional full servo
Lifting and lowering operation: digital adjustment of the height of the pressure wheel
Allowed to pass through the maximum diameter: ¢ 18
Air source: 0.5Mpa clean air source
Remarks: Limit cut-off capacity of 50 sq. ft.
