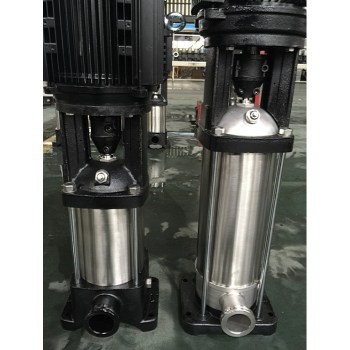

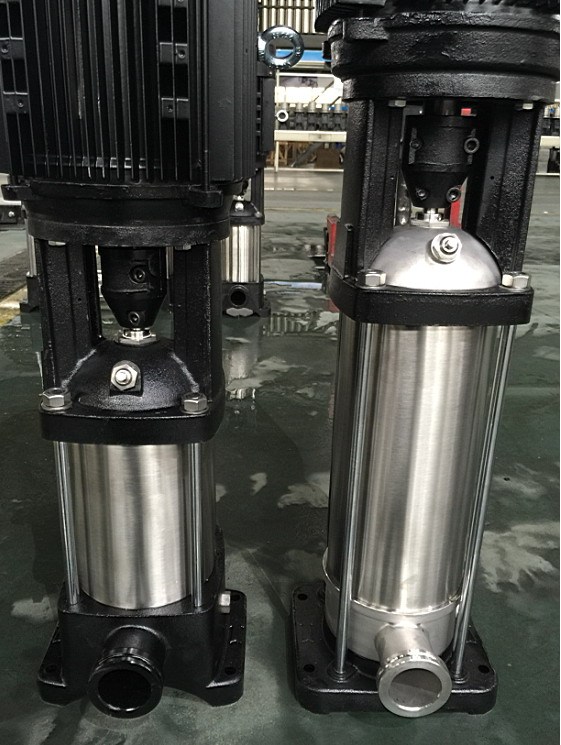

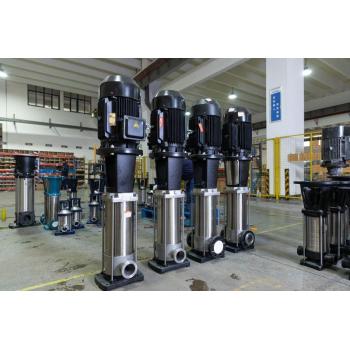

Stainless Steel Vertical Multistage Centrifugal Pump
group nameStainless Steel Vertical Multistage Pumps
-
Min Order1 piece
brand nameRondos Water Pump Manufacturer
modelSDL,SDLT
payment methodPayPal, Westem Union, Cash, Escrow
-
update timeMon, 30 Mar 2026 03:46:10 GMT
Paramtents
Liquid temperature -15ºC ~ +105ºC
Flow range 0.4m³/h~240m³/h
Head range 3.5~305m
Ambient temperature up to +40ºC
Material SS304, SS316L, CI
Frequency 50/60Hz
Packging & Delivery
Min Order1 piece
Briefing
It is a versatile product that can handle various media ranging from tap water to industrial fluids, and is suitable for different temperature, flow rate, and pressure ranges.
Detailed
Working condition:
1. The liquid shall be low-viscosity, clean, non-flammable and non-explosive, with no solid particles or fibers contained.
2. The liquid temperature: for normal type -15ºC to +70ºC; for hot water type -15ºC to +105ºC.
3. Flow range 0.4m³/h~240m³/h
4. Head range 3.5m~305m.
5. The ambient temperature: up to +40ºC.
6. The minimum entrance pressure curve: NPSH +0.5m.
7. Head of safety margin of 0.5m.
8. Altitude: up to 1000m
Motor:
1. The motor is totally enclosed, air-cooled secondary stardard motor, and made of pure copper
2. Protection Class: IP55
3. Insulation Class: F
4. Standard Frequency: 50Hz
1 × 220-230/240V
3 × 200-220/346-380V
3 × 220-240/380-415V
3 × 220-255/380-440V
5. Other voltage specifications are available upon request
6. Single-phase available power range: 0.37 to 2.2 Kw
Product features:
1. Compact structure, light weight, small size with outstanding performance and beautiful appearance.
2. Adopt advanced manufacturing technology of stamping and welding , ensuring stable quality, high efficiency and energy saving.
3. Made of stainless steel material, anti-rust and anti-corrosive, long service life.
4. Integrated design of engine and pump, low vibration and noise.
5. Seriation design, high interchangeability of parts, reduce the inventory of spare parts for user maintenance.
6. Easy to install and adjustable with diverse methods for the import and export connection.
Data sheet:
Model |
SDL1 |
SDL2 |
SDL3 |
SDL4 |
SDL5 |
SDL8 |
rated flow. m³/h |
1 |
2 |
3 |
4 |
5 |
8 |
Max.head. m |
214 |
232 |
218 |
211 |
232 |
208 |
Model |
SDL10 |
SDL12 |
SDL15 |
SDL16 |
SDL20 |
SDL32 |
rated flow. m³/h |
10 |
12 |
15 |
16 |
20 |
32 |
Max.head. m |
222 |
217 |
227 |
222 |
234 |
292 |
Model |
SDL45 |
SDL64 |
SDL90 |
SDL120 |
SDL150 |
SDL200 |
rated flow. m3/h |
45 |
64 |
90 |
120 |
150 |
200 |
Max.head. m |
305 |
215 |
168 |
162.5 |
157 |
157.5 |
Model Selection:
● The pipeline structure of SDL(T) can ensure that the pump can be directly installed in the pipeline system which pipe diameters are the same and the outlet and inlet at the same level. This design of structure makes the connection from Pump to pipe more compact.
● SDL(T) is a kind of multi-functional pump, can transfer not only clean water but also various industrial liquid medium, suitable for different temperature, flow rate and pressure range.
● SDLT suitable for non-corrosive liquids, SDL is suitable for mild corrosive liquid.
Typical Application:
● Domestic water supply: water filtering and conveying, water partition, net pressure boosting for high-rise buildings, hotels.
● Industrial boosting: process water system, cleaning system, high-pressure washing system, fire-fighting system, car cleaning.
● Industrial liquid transportation: cooling and air conditioning system, boiler feed water system and temperature system, machine matching.
● Delivery: oil and alcohol, acid and alkali, ethylene glycol and coolant.
● Water treatment: UF (Ultrafiltration) and RO (Reverse Osmosis) systems, distillation systems, separator, the swimming pool.
● Agricultural irrigation: Region irrigation, sprinkler irrigation, drip irrigation.
