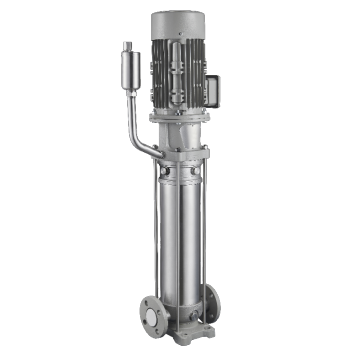

ASF High Temperature Stainless Steel Vertical Multistage Centrifugal Pump
group nameStainless Steel Vertical Multistage Pumps
-
Min Order1 piece
brand nameRondos Water Pump Manufacturer
modelASF
payment methodPayPal, Westem Union, Cash, Escrow
-
update timeFri, 05 Dec 2025 20:46:35 GMT
Paramtents
The liquid temperature -15ºC to +180ºC
Flow range 0.4m³/h~100m³/h
Head range Max.380m
The environment temperature +40ºC
Material CI, SS304, SS316L
Packging & Delivery
Min Order1 piece
Briefing
high temperature pump up to 180ºC, vertical multistage non-self priming centrifugal pump, with compact structure, axial inlet and radial outlet 50Hz
Detailed
Product features:
1. Hot and cold clean, non flammable and explosive, containing no solid particles or fibers of the liquid, .
2. The liquid temperature: -15ºC to +180ºC.
3. Flow range 0.4m³/h~498m³/h, head range 7m~380m.
4. Model range ASF1,2,3,4,5,8,10,12,15,16,20
5. Material CI, SS304, SS316L all available.
6. The environment temperature: Max. 40ºC.
7. The minimum entrance pressure curve: NPSH +0.5m.
8. Head of safety margin of 0.5m.
9. IP55, F class.
10.Single phase up to 2.2kw.
11.Standard color is black.Electrophoretic paint.
12.Cartridge mechanical seal, standard type is graphite/carbide tungsten, viton.
Data sheet: 50Hz
Model |
ASF1 |
ASF2 |
ASF3 |
ASF4 |
ASF5 |
ASF8 |
rated flow. m³/h |
1 |
2 |
3 |
4 |
5 |
8 |
Max.head. m |
231 |
221 |
221 |
220 |
208 |
220 |
Model |
ASF10 |
ASF12 |
ASF15 |
ASF16 |
ASF20 |
|
rated flow. m³/h |
10 |
12 |
15 |
16 |
20 |
|
Max.head. m |
216 |
225 |
224 |
221 |
223 |
Applications:
