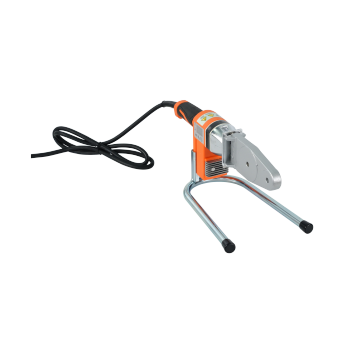

Socket Fusion Welder Set for PPR or PE Pipes 20mm to 32mm
group nameFX Series
-
Min Order1 piece
brand nameFusion Equipment and Plumbing Tool｜WELPING
modelFX32D
payment methodL/C, Western Union, T/T, Paypal
-
update timeSat, 06 Dec 2025 03:34:27 GMT
Paramtents
Lead Time 7-15 days once order confirmed
Certificate CE
Color Green
Packging & Delivery
Min Order1 piece
Briefing
20mm to 32mm Socket Fusion Kit For welding/fabricating PP, HDPE, PVDF & PPR Pipes & Moulded fittings.
Detailed
INTRODUCTION
DETAILS
※ Working range: for 20-32mm PE,PP,PB,PVDF pipe
※ Industrial class welding shoes and heating plate with thicker materials guaranteed stable welding temperature.
※ Double insulation panels efficiently prevent heat dissipation.
※ Engineering rubber handle, galvanized stand and clamping bracket make it easier in rough situations.
※ Quality aluminum heat sink allows the machine to work for a long time.
STANDARD ACCESSORIES |
|
|
Main Frame
|
1 Set
|
|
Welding Dies(20-25-32mm)
|
1 Set
|
|
Support Bracket
|
1 Set
|
|
Wrench
|
1 Set
|
Fixing bolts | 1 Set |
1. Setting Temperature
Select proper pipe and fitting,
Set the correct temperature before
pipe fusion operation
2. Cutting the Pipe
Cut the required pipe length
with a plastic pipe cutter
3. Cleaning the Pipe
Clean the fusion surface of
the pipe with alcohol
4. Measuring fusion depth
Mark the fusion depth on the pipe
according to the socket depth of
the fitting (or use the positioning
holes on the heating sleeve)
5. Heating the Pipe
Insert pipe and fitting horizontally
into the sockets, refer to the table
below for heating time
6. Connecting and Cooling
Connect the heated pipe and
fitting accurately and finish
adjustment within 5s
Recommended Welding Time and Insertion Depth at Ambient Temperature of 20 ° C
| External
Diameter
(mm) | Melting Depth
(mm) | Heating Time
(s) | Processing Time
(s) | Cooling Time
(min) | |
| A (fitting side) | B ( pipe side) | ||||
| 16 | 14.5 | 16.0 | 4 | 4 | 2 |
| 20 | 14.5 | 15.5 | 5 | 4 | 2 |
25 | 15.0 | 16.5 | 7 | 4 | 2 |
PARAMETER
|
Mode
|
FX32D
|
|
Suitable materials
|
PE,PP,PB,PVDF
|
|
Range
|
20-25-32mm
|
|
Power supply
|
110V/220V
|
Frequency | 50HZ/60HZ |
Power Supply | 600W |
Working Temperature | 220ºC-260ºC |
Temperature tolerance | ≤2ºC |
Warning temperature | set value + 20ºC |
Net weight | 5 KGS |
PCS/Carton | 4 PCS |
N.W/Carton | 17KGS/4PCS |
G.W/Carton | 18KGS/4PCS |
Carton size | 49*43.5*20CM |
PRODUCT DETAILS MAP
Industrial class welding shoes and heating plate with thicker materials guaranteed stable welding temperature.
Sturdy and Durable Aluminum Heating Plate
8 layers heat sink made of aluminum which helps heat dissipation on the motherboard. The socket fusion welder can continuously work for a long time.
Engineering rubber handle, galvanized stand and clamping bracket make it easier in rough situations.
