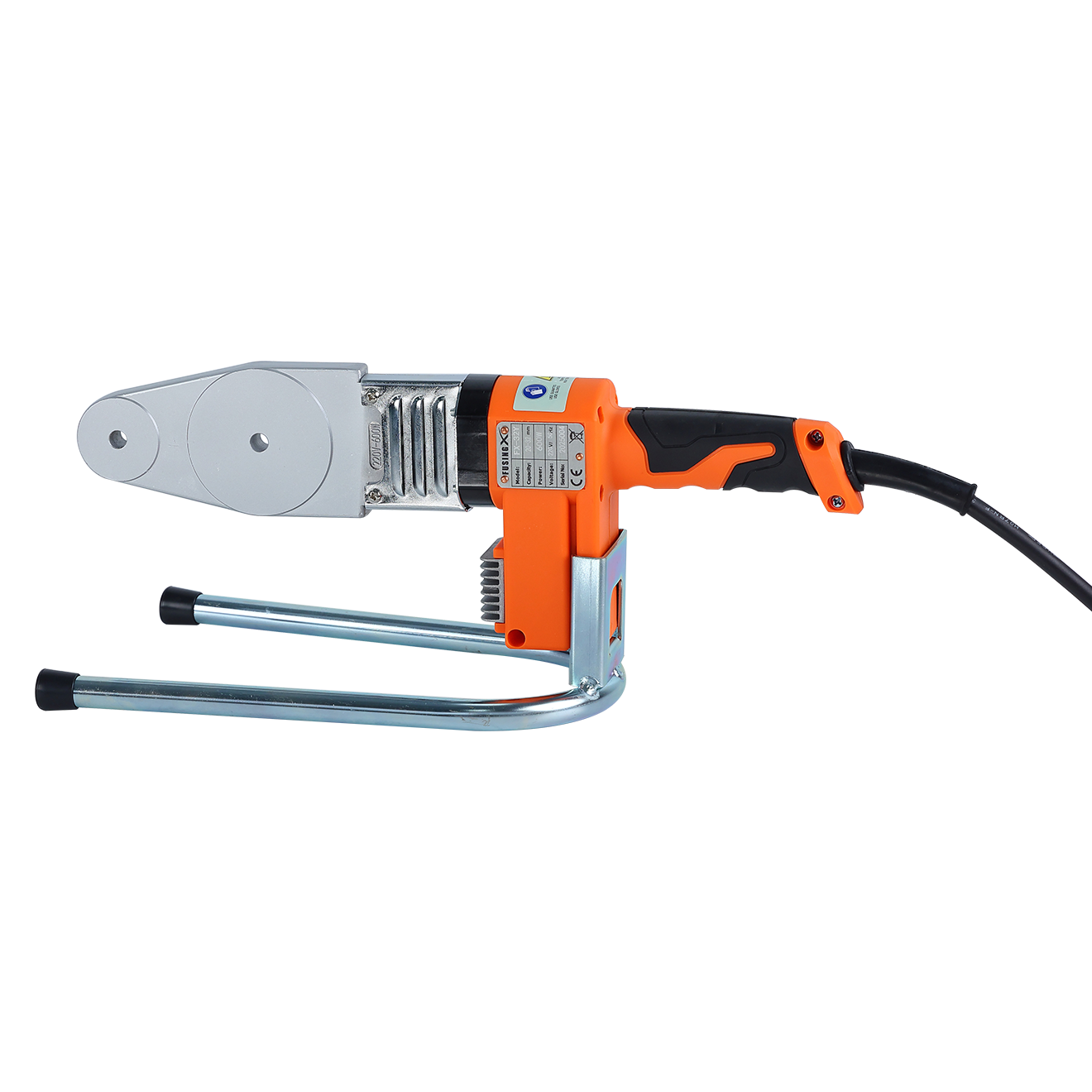

Socket Fusion Welder Set for PPR or PE Pipes 20mm to 32mm
group nameFX Series
-
Min Order1 piece
brand nameFusion Equipment and Plumbing Tool｜WELPING
modelFX32Y
payment methodL/C, Western Union, T/T, Paypal
-
update timeFri, 05 Dec 2025 15:17:15 GMT
Paramtents
Lead Time 7-15 days once order confirmed
Certificate CE
Color Green
Packging & Delivery
Min Order1 piece
Briefing
20mm to 32mm Socket Fusion Kit For welding/fabricating PP, HDPE, PVDF & PPR Pipes & Moulded fittings.
Detailed
INTRODUCTION
DETAILS
※ Working range: for 20-32mm PE,PP,PB,PVDF pipe
※ Industrial class welding shoes and heating plate with thicker materials guaranteed stable welding temperature.
※ Double insulation panels efficiently prevent heat dissipation.
※ Engineering rubber handle, galvanized stand and clamping bracket make it easier in rough situations.
※ Quality aluminum heat sink allows the machine to work for a long time.
STANDARD ACCESSORIES |
|
|
Main Frame
|
1 Set
|
|
Welding Dies(20-32mm)
|
1 Set
|
|
Support Bracket
|
1 Set
|
|
Wrench
|
1 Set
|
Fixing bolts | 1 Set |
1. Setting Temperature
Select proper pipe and fitting,
Set the correct temperature before
pipe fusion operation
2. Cutting the Pipe
Cut the required pipe length
with a plastic pipe cutter
3. Cleaning the Pipe
Clean the fusion surface of
the pipe with alcohol
4. Measuring fusion depth
Mark the fusion depth on the pipe
according to the socket depth of
the fitting (or use the positioning
holes on the heating sleeve)
5. Heating the Pipe
Insert pipe and fitting horizontally
into the sockets, refer to the table
below for heating time
6. Connecting and Cooling
Connect the heated pipe and
fitting accurately and finish
adjustment within 5s
Recommended Welding Time and Insertion Depth at Ambient Temperature of 20 ° C
| External
Diameter
(mm) | Melting Depth
(mm) | Heating Time
(s) | Processing Time
(s) | Cooling Time
(min) | |
| A (fitting side) | B ( pipe side) | ||||
20 | 14.5 | 15.5 | 5 | 4 | 2 |
25 | 15.0 | 16.5 | 7 | 4 | 2 |
| 32 | 16.5 | 18.5 | 8 | 6 | 4 |
PARAMETER
|
Mode
|
FX32Y
|
|
Suitable materials
|
PE,PP,PB,PVDF
|
|
Range
|
20-32mm
|
|
Power supply
|
220/110V
|
Frequency | 50HZ/60HZ |
Power Supply | 600W |
Working Temperature | 220ºC-260ºC |
Temperature tolerance | ≤2ºC |
Warning temperature | set value + 20ºC |
Net weight | 5 KGS |
PCS/Carton | 4 PCS |
N.W/Carton | 16KGS/4PCS |
G.W/Carton | 17KGS/4PCS |
Carton size | 49*43.5*20CM |
PRODUCT DETAILS MAP
Industrial class welding shoes and heating plate with thicker materials guaranteed stable welding temperature.
Sturdy and Durable Aluminum Heating Plate
8 layers heat sink made of aluminum which helps heat dissipation on the motherboard. The socket fusion welder can continuously work for a long time.
Engineering rubber handle, galvanized stand and clamping bracket make it easier in rough situations.
DOWNLOAD
WHAT WE CAN DO FOR YOU?
OUR SERVICES
WELPING develops, manufactures, and sells devices and systems for welding thermoplastics and, in this area, focuses consciously on pipeline systems as the main field of application. And We have been in this field for more than 17 years since 2005.
We aim to bring industrial level design, performance and quality together, to provide professional solutions for a variety of mining & industrial, marine, municipal, irrigation, energy and landfill to help you build reputation.
WELPING is committed to becoming a business for all thermoplastic pipe, which includes the fusion equipment and certified technical training to assist with the installation and fabrication of any plastic pipes related project. WELPING has continually broadened the scope of supply and usage for polyethylene pipe, valve, and fitting system design into new market segments. Also, We help our customers source pipe tools to support their projects. Our success is in the quality of our products and the knowledge and service of our people.
