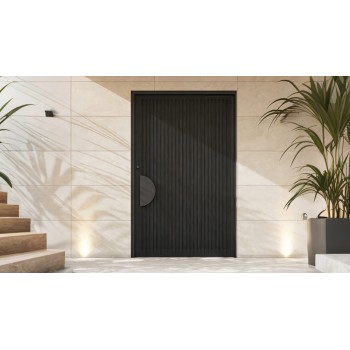

Sunken Engraving Cast Aluminum Door Panel for Villas & Commercial Projects

Door Type Flat Panel Engraved Entry Door
Application Villas, Hotels, Apartments & Commercial Projects
Material Cast Aluminum + Stainless Steel
Core Structure Aluminum Honeycomb + Full Steel Frame
Surface Finish Sunken Engraving / Relief Carving / Cut-Through Carving
Color Custom RAL / Project-Matched Finish
Size Custom Size
Opening Style Swing / Pivot / Project-Specified
Hardware German-Style Integrated Lock System
Seal System EPDM Acoustic Sealing Strip
Production Time 28-35 Days
Sample Available

Size215cm x100cm x10cm
Weight40kg / set
Min Order30 set

Sunken engraving cast aluminum entry door with shallow relief or cut-through carving, anti-corrosion edge protection, and custom pattern options for villa and commercial projects.

Sunken Engraving Aluminum Entry Door for Project Applications

This page focuses on sunken engraving craftsmanship for cast aluminum entry doors. The process includes both shallow relief carving, which removes only part of the visible metal surface, and cut-through carving, which penetrates the door panel. After engraving, every edge is finely polished and deburred, then protected with anti-corrosion coating to reduce oxidation risk at the cut line. The process supports highly detailed graphics, deep carving, decorative cut-outs, and small-batch custom patterns for villas, hotels, offices, apartments, and project entrances.

Process Types

Available as shallow relief engraving for surface depth, or cut-through engraving for open decorative voids and more dramatic visual contrast.

Key Advantages

High precision, sharp line definition, strong artistic flexibility, and no need for large molds, making it well suited to customized and smaller production runs.

Post-Treatment

Fine polishing, burr removal, and anti-corrosion spraying help protect exposed cuts while keeping the carved pattern clean, durable, and production-ready.

Armored Cast Aluminum Security Doors, Engineered for Lasting Protection

Aerospace-Grade Solid Cast Panel

Made from primary aluminum ingots through high-pressure precision casting, the solid door panel is weld-free and built for superior impact resistance. A thicker cast aluminum panel helps eliminate weak seams at the source and provides stronger protection than conventional steel doors.

Reinforced Composite Door Leaf

The door leaf combines a cast aluminum face panel, a high-strength steel skeleton box, and aerospace aluminum foil filling. Four-sided steel reinforcement helps prevent deformation and keeps the entire door structure stable over long-term project use.

Armored Edge Sealing System

Rigid aerospace aluminum edging protects the door perimeter, while imported weather-resistant seals create a tighter air barrier. This helps prevent edge cracking or delamination and improves sound insulation, thermal performance, and daily durability.

Integrated Anti-Pry Lock Reinforcement

The lock area is wrapped with a single high-strength metal plate and fastened directly into the steel core with precision screws. This reinforced structure reduces gaps, prevents looseness around the lock body, and helps resist forced-entry attacks.

Sunken Engraving Surface Craftsmanship

Sunken Engraving Craft

Sunken engraving can be executed as shallow relief carving or full cut-through carving. After cutting, every edge is polished, deburred, and protected with anti-corrosion coating so the engraved panel keeps sharp line quality, stable edge protection, and strong decorative impact across customized project applications.

Sunken Engraving Door References

Sunken engraving craftsmanship supports shallow relief carving and full cut-through carving on cast aluminum panels. After engraving, the cut lines are polished, deburred, and anti-corrosion coated to protect exposed metal edges. This process is well suited to complex ornamental patterns, deep carving, custom graphics, and smaller project batches that require sharp detail and strong visual identity.

Process Focus

Sunken Engraving Cast Aluminum Door Panel

Designed for intricate cut-outs, deep carving, and custom decorative patterns with sharp detail and flexible small-batch production.

Post-Engraving Finish Reference

Review common finish directions that can be paired with sunken engraving after polishing, deburring, and protective coating.

After sunken engraving is completed, the panel can be matched with wood-look, metallic, matte, or mineral-inspired finishes to confirm line visibility, depth contrast, and final project presentation.

Brushed Antique Brass

Brushed Antique Copper

Fine Line Titanium Grey

Cross Weave Titanium Grey

Classic Brown Gold

Brushed White

Starry Grey

Turkish Grey

BMW Grey

Crystal Black

Titanium Grey

Fine Sand Black

Purple Clay Red

Coffee Gold

Meteorite Grey

Custom RAL Color

Door Type & Opening Direction Compatibility

Confirm which entrance configuration will carry the engraved panel design without interrupting pattern balance, access flow, or hardware planning.

Sunken engraving can be adapted to single doors, double doors, pivot doors, and multiple swing directions, allowing the carved pattern to stay coordinated with project drawings and installation conditions.

Door Type

Single Door

Double Door

Pivot Door

Double Unequal Door

Opening Direction

Left Hand Inswing

Right Hand Inswing

Offset Pivot Swing

Left Hand Outswing

Panel Thickness & Engraving Effect Coordination

Match panel thickness, engraving depth, and surface effect so the carved pattern remains crisp, stable, and production-ready across different project requirements.

Panel thickness can be adjusted according to door size, structural targets, and carving depth, while the visible finish helps project teams review how engraved lines, cut edges, and surface character read in the final door elevation.
