130mm Embedded Full-Frame Structure & 3.0mm 6063-T5 Profile Walls
BC-S130 (TPS130) Heavy-Duty Aluminum Sliding Window
group nameAluminum Sliding & Lift Windows
-
Min Order30 set
brand nameBLOSSOM CHEER Door And Window Project Manufacturer
modelBC-S130 (TPS130)
payment methodL/C, D/A, D/P, Western Union
-
update timeWed, 23 Sep 2026 05:45:10 GMT
Paramtents
Model BC-110
Product Type Thermal Break Aluminum Casement Window
Frame Depth 110–115 mm
Project Service ODM / Custom Project Support
Sample Available
Production Time 15-25 Days
Packging & Delivery
Size215cm x100cm x10cm
Weight40kg / set
Min Order30 set
Briefing
BC-S130 (TPS130) is a heavy-duty aluminum sliding window with 3.0 mm profile walls, reinforced tandem rollers and support for large glass panels up to 8 m².
Detailed
Heavy-Duty Hurricane Sliding System: Engineered for coastal hurricane zones and penthouses, the BC-S130 integrates 3.0mm profile walls,
BC-S130 (TPS130)
3.0mm Wall & 8m² Sash Envelope
embedded frames, and tandem steel-ring rollers to support 8m² glass panels safely.
6-Tier Sealing, Oversized Weather-Lap & Stepped Concealed Drainage
Adjustable Anti-Sway Guides, 300kg+ Steel-Ring Rollers & Stainless Rails
BC-S130 (TPS130) Core Physical & Structural Specification Matrix
Engineering Metric
Performance Value
Reference Standards
Frame Depth
130mm embedded full-frame structural depth
GB/T 8478-2020 / AAMA 101
Wall Thickness
3.0mm 6063-T5 high-precision alloy profiles throughout
ASTM B221 / EN 755-2
Max Sash Area
Up to 8.0m² glass per sash for large-span balcony enclosures
International heavy-duty panoramic engineering standard
Surface Coating
AkzoNobel weather-resistant powder / fluorocarbon coating
AAMA 2604 / AAMA 2605
Standard Glazing
XINYI mirror-grade 5mm + 16Ar + 5mm IGU with Guibao 882 butyl sealant
Automotive mirror-grade safety IGU standard
Sealing Tier
6-tier sealing with automotive EPDM gaskets and premium siliconized weatherstrips
ISO 3934 / ASTM C864
Roller & Track
Proprietary six-track sill, high-capacity stainless-steel rails, and tandem composite rollers with steel rings
Rail-grade heavy-load sliding engineering standard
Anti-Sway System
Adjustable upper anti-sway guide wheels and oversized weather-lap overlap
Typhoon-resistant anti-derailment engineering standard
Drainage Design
Stepped concealed pressure-equalized drainage using gravity discharge to prevent backflow
Storm-grade water-tightness standard
Utility Option
Optional operable interior guardrail / multifunction drying rack at the lower fixed lite
High-rise safety and utility standard
Wind Load Resistance
\
GB/T 7106 / ASTM E330
Water Tightness
\
GB/T 7106 / ASTM E331
Air Permeability
\
GB/T 7106 / ASTM E283
Acoustic Sound Insulation
\
GB/T 8485 / ASTM E90
Tandem Steel Rollers, Anti-Sway Guides & Multi-Tier Sealing Mechanics
Integrating heavy-duty track hardware, the BC-S130 employs tandem rollers, anti-sway top guides, and 6-tier seals for smooth large-panel sliding longevity. Adjustable anti-sway guide wheels engage the upper track to stabilize sash balance and eliminate vibration during severe windstorms. Dual-row composite steel-ring rollers support 300kg+ sashes over stainless tracks, distributing heavy panel loads for a smooth glide without derailment. Extra-wide overlapping profiles combine with multi-point perimeter locks to boost wind-load resistance and prevent storm leakage. Automotive EPDM gaskets pair with dense siliconized weatherstrips across six sealing tiers for acoustic damping and protection from dust and moisture. Finished via automated vertical lines with AkzoNobel coatings to pass 1000-hour salt spray testing, guaranteeing 10-year weatherability under coastal UV exposure.
Providing modular engineering specifications tailored to hurricane penthouses and expansive balcony enclosures, assisting general contractors in precise selection.
Configure opening layout, laminated or insulated glazing, track and roller capacity, drainage, sealing, safety screening, and finishes around span, exposure, and daily-use requirements.
Submit project drawings for opening-layout coordination, oversized-sash deflection review, roller-load verification,
anti-derailment detailing, concealed-drainage review, and direct engineering budget confirmation.
Providing comprehensive engineering submittals, AutoCAD node details, and certified lab test reports tailored to global developers, EPC contractors, importers, and lead architects.
Top Adjustable Anti-Sway Guide Wheels
Tandem Rollers with Steel Rings & Stainless Rails
Oversized Weather-Lap Interlocking
6-Tier Sealing System & Weatherstrips
BC-S130 Architectural High-Weatherability Surface Finishes & Color Palette
In Stock
Fluorocarbon Grey
In Stock
Dark Basalt / Flash Silver Black
In Stock
Metallic Coffee / Dark Coffee
Interior Dual-Color Customization
Micro-Structure Driven Scenario Configuration & Engineering Matrix
BC-S130 (TPS130) Scenario Configurations

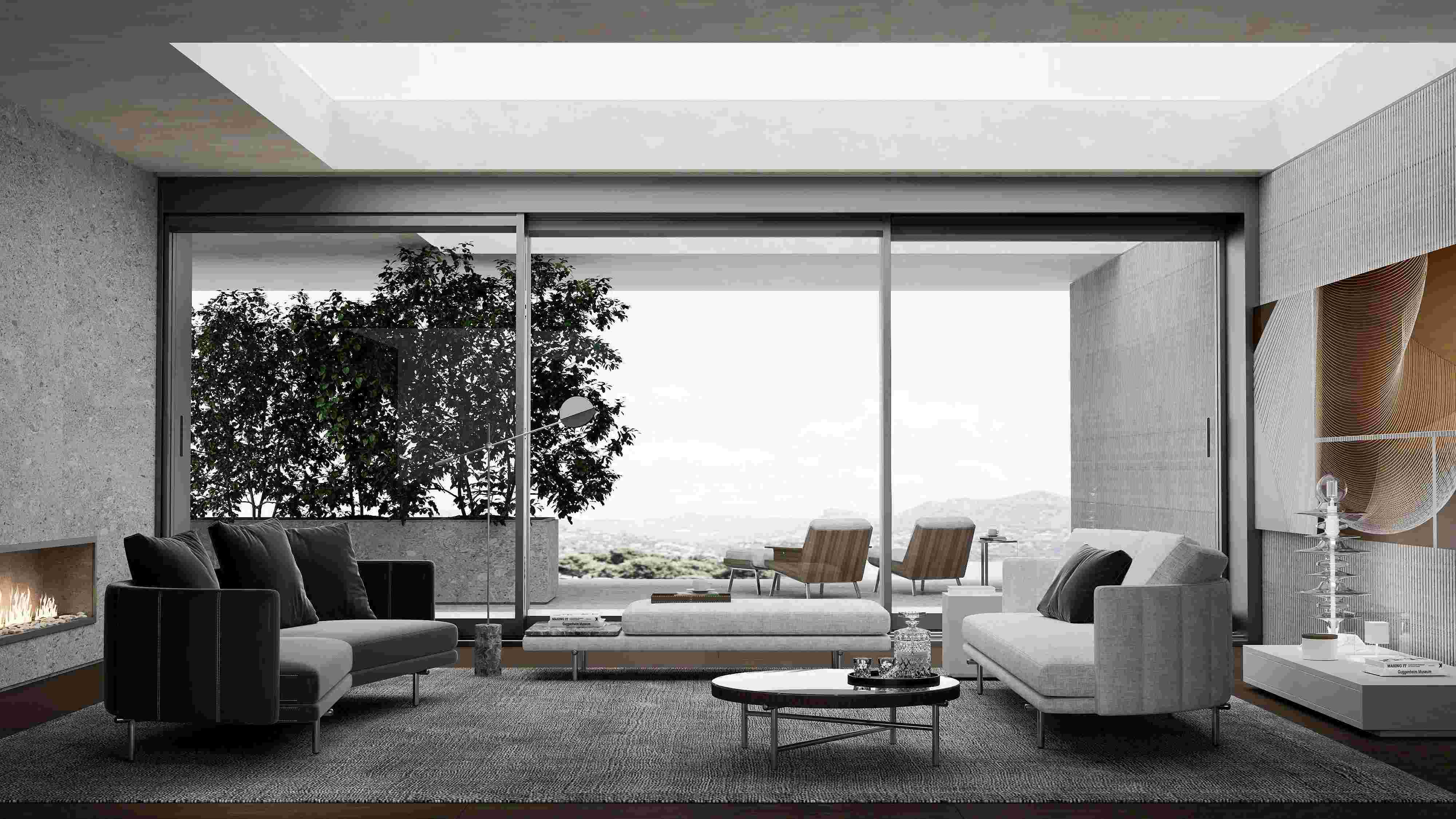

Coastal Penthouses, Large-Span Balconies & High-Rise Utility Configurations
Verified Project & Laboratory Evidence
B2B Engineering Submittal & Technical Specification Download Hub
Review Focus
Project Media Gallery
Click Detail to return to the material image; scroll when more media is available.
