Hydraulic Roll Grooving Machine for 8 Inch to 24 Inch Steel Pipes (RG-4X)
group nameHydraulic Roll Grooving
-
Min Order1 piece
brand nameGruvmaster & Welping
modelRG-4X
payment methodL/C, D/A, D/P, Western Union
-
update timeFri, 05 Dec 2025 20:21:26 GMT
Paramtents
Model RG-4X
Capacity 8"-24"
MaxWall thickness 13mm
Output Speed 20R.P.M
Color Black and Yellow
Power 2200V/3 PH
Packing size 110*75*99cm
Gross Weight 285 KG
Packging & Delivery
Size100cm x74cm x103cm
Weight285kg / piece
Min Order1 piece
Briefing
● Model RG-4X Electric Hydraulic Roll Grooving Machine is designed to roll grooves on steel pipes and stainless steel from 8"-24" (DN200~DN600) SCH10/SCH40.
● Appropriate for various daily tasks involving fire-fighting pipes,this roll groover is a comprehensive tool that includes a motor, hydraulic feeding pump, foot switch, and pipe stand.
● The motor's built-in high-performance gear reduction system enables a compact design and reduced noise levels.
● The unique combination of the hydraulic feeding pump and the groove depth lock knob guarantees premium grooves and optimal efficiency.
● Appropriate for various daily tasks involving fire-fighting pipes,this roll groover is a comprehensive tool that includes a motor, hydraulic feeding pump, foot switch, and pipe stand.
● The motor's built-in high-performance gear reduction system enables a compact design and reduced noise levels.
● The unique combination of the hydraulic feeding pump and the groove depth lock knob guarantees premium grooves and optimal efficiency.
Detailed
Steel Pipe Roll Grooving Machine Video

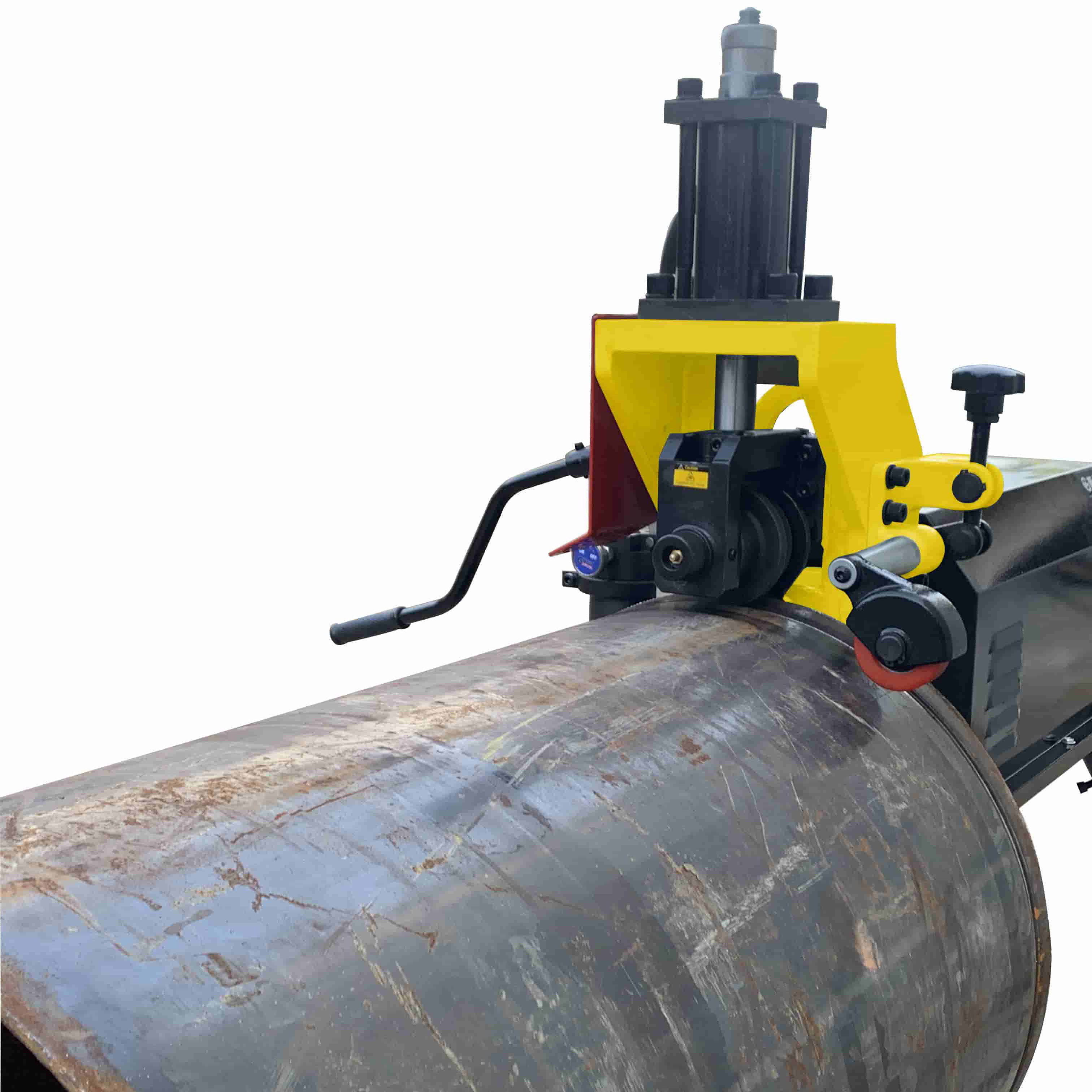

Steel Pipe Roll Grooving Machine
FEATURES OF ELECTRO-HYDRAULIC ROLLING GROOVER
● Model RG-4X Electric Hydraulic Roll Grooving Machine is designed to roll grooves on steel pipes and stainless steel from 8"-24" (DN200~DN600) SCH10/SCH40.
● Appropriate for various daily tasks involving fire-fighting pipes,this roll groover is a comprehensive tool that includes a motor, hydraulic feeding pump, foot switch, and pipe stand.
● The motor's built-in high-performance gear reduction system enables a compact design and reduced noise levels.
● The unique combination of the hydraulic feeding pump and the groove depth lock knob guarantees premium grooves and optimal efficiency.
Steel Pipe Roll Grooving Machine Parameters
|
Model:
|
RG-4X
|
|
Suitable materials:
|
Carbon steel;Stainess steel
|
|
Capacity:
|
"8"-"24" steel pipe
|
|
Power supply:
|
220V/110V
|
|
Frequency:
|
50HZ/60HZ
|
Motor power: | 2200W |
Max wall thickness: | 13mm |
Output speed: | 20RPM |
Gross weight | 285kg |
Packing Size | 110*75*99cm |
Standard Parts
|
Catalog No.
|
Description
|
N.W (kg)
|
|
911087
|
Drive roller 8"~12" (Φ219~Φ325）
|
3.5
|
|
911088
|
Drive roller 14"~16" （Φ355~Φ426）
|
3.5
|
|
911089
|
Groove roller 18"~24" （Φ457~Φ630）
|
3.5
|
912029 | Groove roller 8"-12" （Φ219~Φ325） | 2.0 |
912030 | Groove roller 14"-16" （Φ355~Φ426） | 2.0 |
912031 | Groove roller 18"-24" （Φ457~Φ630） | 2.0 |
998038 | Pipe stand for 8"~24" （Φ219~Φ630） | 33.0 |
998026 | Foot Switch | 1.50 |
Optional parts
| Catalog No. | Description | N.W(KG) | Ref No. |
| 911099 | AGS Groove roller 14"~24" (Φ355~Φ630)
| 3.5 | ⑨ |
| 912034
| AGS Drive roller 14"~24" (Φ355~Φ630) | 2 | ⑩ |
Scenes To Be Used
Resources
Steel Pipe Roll Grooving Machine Configuration
Hydraulic pump
High quality seal parts ensure long-term field usage without leaking
Fine-machined cylinder with accurate sizes
Proper-hardened piston rod of long-life
Built-in groove depth adjusting rod
Casting part
Reinforced cast iron housing for hydraulic pump, roller sets, pipe stabilizer
Support color customization
Balanced structure withstands tough jobs
Roll Sets
Available in size: 8"-16" (DN200~DN400,Φ219~Φ426);
SCH10/40 Steel Pipe
For steel Pipe: 18"-24" (DN450~DN600,Φ457~Φ630)
SCH10/20 Steel Pipe
Pipe Stand
Quick size adjustable rods, fine-machined slots with latch
Steel ball heads,for smooth rotation,forward-backward moving of pipe
Adjustable height to suit different size pipes:2"-8"
Steel Pipe Roll Grooving Machine Comparition Chart
