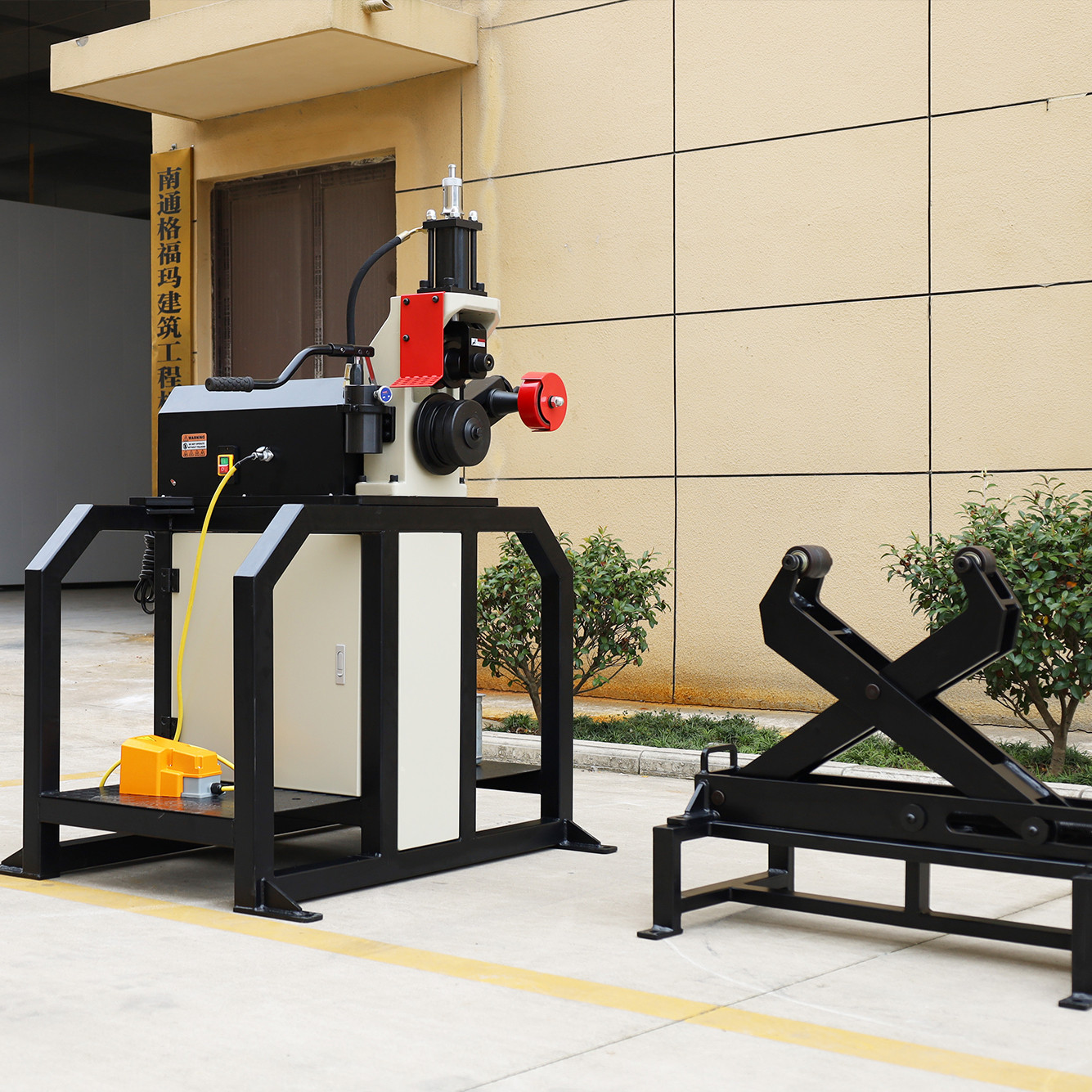

RG-K32 Heavy-Duty Roll Grooving Machine for 8"-32" Large Steel Pipes
group nameHydraulic Roll Grooving
-
Min Order1 piece
brand nameGruvmaster & Welping
modelRG-K32
payment methodL/C, D/A, D/P, Western Union
-
update timeFri, 28 Aug 2026 11:03:42 GMT
Paramtents
Working Range 8"-32" / DN200-DN800
Pipe Material Steel Pipe
Pipe Schedule SCH10-SCH40
Max. Wall Thickness 13 mm
Output Speed 20 RPM
Motor Power 2200 W
Voltage 380V / 440V, 3 Phase
Application Large-Diameter Pipe Grooving
AGS Optional
Packging & Delivery
Size125cm x115cm x165cm
Weight430kg / piece
Min Order1 piece
Briefing
RG-K32 is a heavy-duty roll grooving machine for 8"–32" (DN200–DN800) large steel pipes.
Detailed
BUILT FOR LARGE-DIAMETER PIPE GROOVING
RG-K32 Pro Design Features
Features of Electric Hydraulic Roll Groover Machine
●Model RG-K32 Roll Grooving Machine is designed to roll groove on steel pipes and Stainless Steel.from 8"-32" (DN200~DN800) SCH10 to SCH40. Ideal for use in both workshops and job sitesfor streamlined mass fabrication. Its exceptional strength and durability make it a reliable choice for heavy-duty applications.
● Uitable for a wide range of everyday tasks related to fire-fighting pipes, this roll groover is a versatile tool equipped with a motor, hydraulic feeding pump, foot switch, and pipe stand.
●The interlocking structure of groove roller and drive roller ensures precise control of the pipe sealing surface length.
● The built-in high-performance gear reduction system of the motor allows for a more compact design and lower levels of noise.
● The unique combination of the hydraulic feeding pump and the groove depth lock knob guarantees premium grooves and optimal efficiency.
● The roll grooving machine is equipped with a frame and swivel wheels for easy movement and transport.
Pipe Roll Grooving Machine Parameter
Model: | RG-K32 |
Suitable materials: | Carbon Steel,SS Pipe |
Fabrication Capacity: | 8"-16" Pipe SCH10/SCH4018"-32" Pipe SCH10/SCH20 |
Power supply: | 380V/440V |
Frequency: | 50HZ /60HZ |
Max wall thickness: | 13mm |
Motor power: | 2200W |
Output speed: | 20RPM |
Packing gross weight: | 430 KG |
Packing size: | 125*115*165cm
|
Standard Parts of RG-5X Roll Groover
Item Number | Description | Net weight | ||||
911087 | Drive roller 8"~12" (Φ219~Φ325) | 3.5 KG | ||||
911088 | Drive roller 14"~16" (Φ355~Φ426) | 3.5 KG | ||||
911089 | Drive roller 18"~24" (Φ457~Φ630) | 3.5 KG | ||||
911166 | Drive roller 26"~32" (Φ660~Φ810) | 3.5 KG | ||||
912029 | Groove roller 8"~12" ( Φ219~Φ325) | 2.0 KG | ||||
912030 | Groove roller 14"~16" ((Φ355~Φ426) ) | 2.0 KG | ||||
912031 | Groove roller 18"~24" (Φ457)~Φ630) | 2.0 KG | ||||
912065 | Groove roller 26"~32" (Φ660~Φ810) | 2.0 KG | ||||
998038 | Pipe stand for 8"~32" | 35.0 KG | ||||
998193 | Pipe stabilizer | 7.0 KG | ||||
Roll Grooving Machine Configuration
Hydraulic Feeding System
· Smooth and controlled hydraulic feeding
· Stable pressure for consistent groove forming
· Heavy-duty design for large pipe grooving
Groove Depth Adjustment
· Easy groove depth setting for different pipe sizes
· Clear scale for quick adjustment
· Helps maintain consistent groove dimensions
Heavy-Duty Machine Structure
· Reinforced frame for large-diameter pipe grooving
· Stable support during heavy-duty operation
· Designed for workshop and fabrication use
Pipe Stabilizer
· Helps keep large pipes stable during grooving
· Reduces pipe movement and improves groove consistency
· Adjustable for different pipe diameters
Foot Switch Control
· Hands-free machine operation
· Easy start and stop during the grooving process
· Allows the operator to focus on pipe positioning
Adjustable Pipe Stand
· Provides stable support for large and heavy pipes
· Height adjustable for proper pipe alignment
· Makes large-pipe grooving easier and more stable
