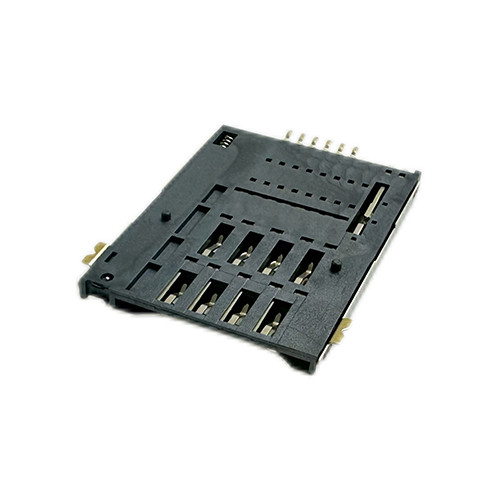

SIM Card Connector Push-Push Top Mount 6pin Height 1.85mm
group nameMini SIM Card Connector
-
Min Order1000 piece
brand nameMoarconn Card Connector Manufacturer
modelSIM Card Connector（SM185-T1131-32-W）
payment methodL/C, D/A, D/P, Western Union
-
update timeSat, 06 Dec 2025 10:44:32 GMT
Paramtents
Product Height 1.85mm
Usable Memory Card SIM card
Base Material LCP
Terminals Material Phosphorous Bronze
Packging & Delivery
Min Order1000 piece
Briefing
Detailed
Learn about Height 1.85mm Mini SIM Card Connector
Mini SIM(Subscriber Identity Module) Card Connector
1.27mm Pitch Mini SIM Card Connector,Top Mount SMT Type,Push-Push Structure, 1.85mm Height
Advantage：
1. Strict coplanarity control ensures better soldering performance.
2. The reliable push-push structural design allows users to easily insert and extract SIM cards.
3. Slope-shaped terminals, prevent terminals damage when the card is inserted and extracted.
4. Conform to Rohs and REACH standard to support global standard of market access.
Understand the Parameters of the Height 1.85mm Mini SIM Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5A
|
|
|
Rating Voltage:
|
500V AC
|
|
|
Contact Resistance:
|
100mΩ
|
|
|
Insulation Resistance:
|
500mΩ
|
|
Useful Life: | 5000 Cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
N/A
|
|
|
Number of pins:
|
8
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Superb card locking function
|
|
Used for: | Smart Home,Mobile Communication,locator | |
Detail Drawing of Height 1.85mm Mini SIM Card Connector
