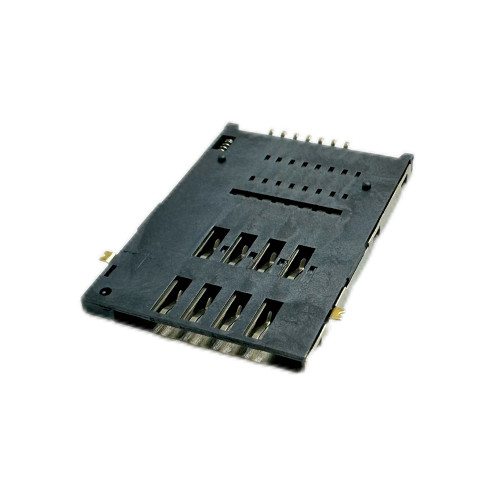

SIM Card Connector Push-Push 6pin With 1 Switch Pin Top Mount Height 1.85mm
group nameMini SIM Card Connector
-
Min Order1000 piece
brand nameMoarconn Card Connector Manufacturer
modelSIM Card Connector（SM185-T1131-50-W）
payment methodL/C, D/A, D/P, Western Union
-
update timeSat, 06 Dec 2025 02:35:01 GMT
Paramtents
Product Height 1.85mm
Usable Memory Card SIM card
Base Material LCP
Terminals Material Phosphorous Bronze
Packging & Delivery
Min Order1000 piece
Briefing
Detailed
Learn about Height 1.85mm Mini SIM Card Connector
Mini SIM(Subscriber Identity Module) Card Connector
1.27mm Pitch Mini SIM Card Connector,Top Mount SMT Type,Push-Push Structure, 1.85mm Height
Advantage：
1. Push-push structural design,easily insert or extract SIM cards for users.
2. Reliable detection switch pins, support hot-plug function.
3. The ingenious sliding design ensures a minimum lifespan of 5,000 cycles.
4. Slope-shaped terminals design,prevent terminals damage when the SIM card is inserted and extracted.
Understand the Parameters of the Height 1.85mm Mini SIM Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5A
|
|
|
Rating Voltage:
|
40V DC
|
|
|
Contact Resistance:
|
30mΩ
|
|
|
Insulation Resistance:
|
1000mΩ
|
|
Useful Life: | 5000 Cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
N/A
|
|
|
Number of pins:
|
8
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Superb card locking function
|
|
Used for: | Smart Home,Mobile Communication,Mobile Wifi | |
Detail Drawing of Height 1.85mm Mini SIM Card Connector
