1500V Main Cable For BESS PVC
group nameAustralia Standard
-
Min Order1 piece
brand nameSUNKEAN Solar Manufacturer
payment methodT/T, L/C
-
update timeSat, 28 Feb 2026 04:39:40 GMT
Paramtents
Conductor Copper
Insulation X-90 XLPE
Jacket 5V-90 PVC
Rated voltage 1500V DC
Rated temperature -40°C ~ +90°C
Packging & Delivery
Min Order1 piece
Briefing
Cables for use in BESS projects, manufactured complying with Australian and international standards.
Detailed
1500V Main cable Introduction
1500V Main Cable For BESS PVC
Cables for use in BESS projects, manufactured complying with Australian and international standards such as AS/NZS 5000.1 AS/NZS 1429.1 AS/NZS 1125 AS/NZS 3808 AS/NZS 3033.

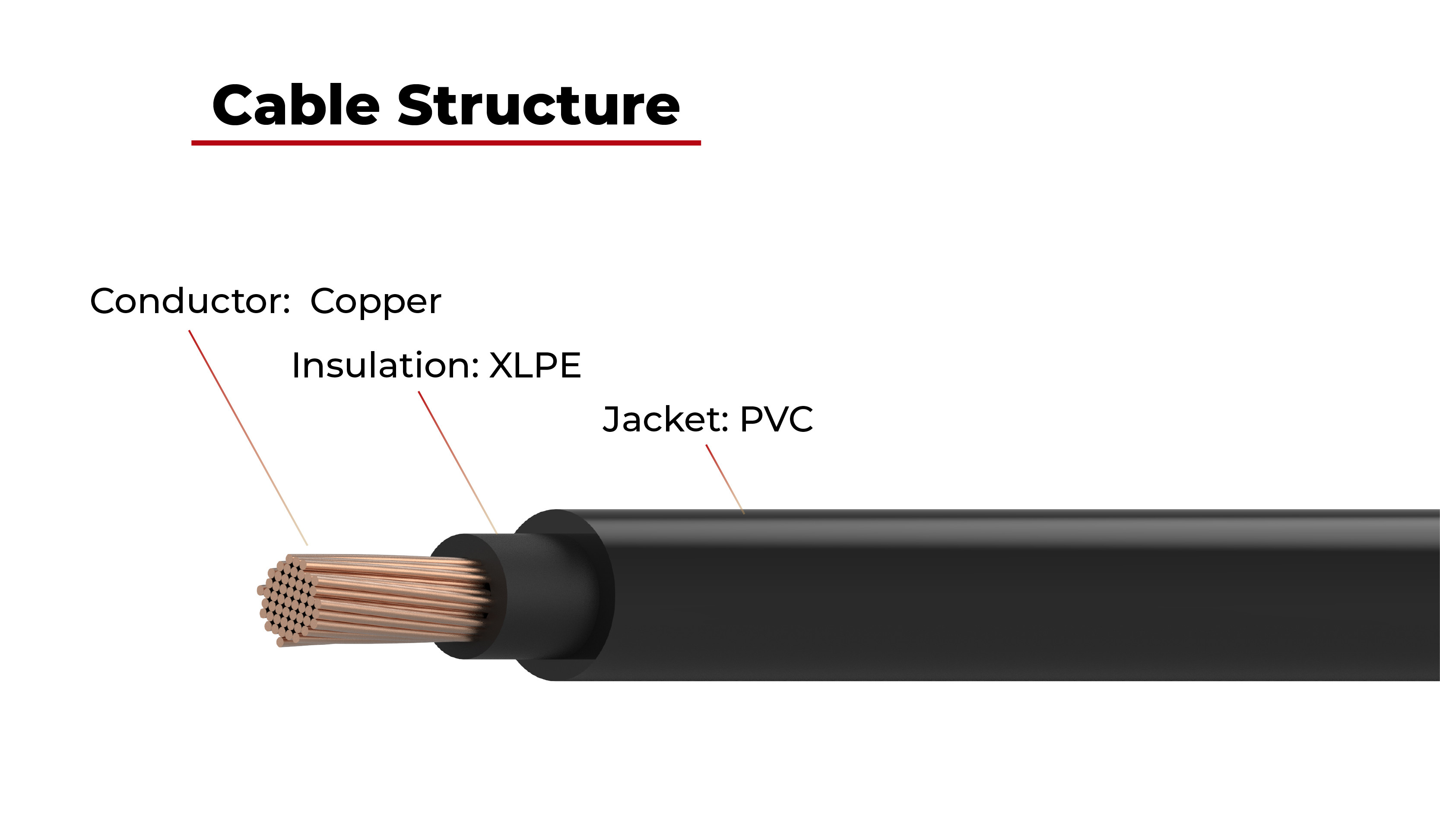

1500V Main Cable Technical Data
|
Conductor
|
Copper
|
|
|
Insulation
|
X-90 XLPE |
|
Jacket | 5V-90 PVC | |
|
Rated temperature
|
-40°C ~ +90°C
|
|
|
Rated voltage
|
U=1500V DC,
U0/U=1000V/1000V AC |
|
Test voltage | 6.5kV AC/5min | |
Maximum Short-Circuit Temperature | 250°C/5s | |
Max. DC Voltage | UM=1800V DC | |
According to | AS/NZS 5000.1 AS/NZS 1429.1 AS/NZS 1125 AS/NZS 3808 AS/NZS 3033 | |
1500V Main Cable Product description
Conductor Area | Insulation Thichness | Jacket Thickness | Cable OD | Approx. Mass of Cable (kg/km) | Conductor Resistance Max (Ώ/km,20°C) |
16 | 0.7 | 1.4 | 11.2 | 187 | 1.1500 |
25 | 0.9 | 1.4 | 12.8 | 281 | 0.7270 |
35 | 0.9 | 1.4 | 13.8 | 373 | 0.5240 |
50 | 1.0 | 1.4 | 15.1 | 494 | 0.3870 |
70 | 1.1 | 1.4 | 17.1 | 695 | 0.2680 |
95 | 1.1 | 1.5 | 18.9 | 941 | 0.1930 |
120 | 1.2 | 1.5 | 20.5 | 1174 | 0.1530 |
150 | 1.4 | 1.6 | 22.6 | 1449 | 0.1240 |
185 | 1.6 | 1.7 | 24.9 | 1801 | 0.0991 |
240 | 1.7 | 1.8 | 27.6 | 2345 | 0.0754 |
