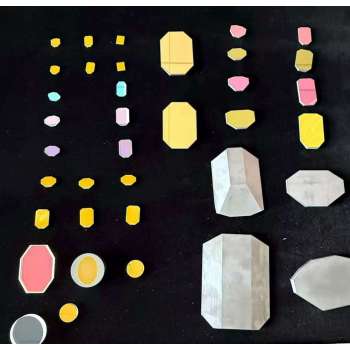

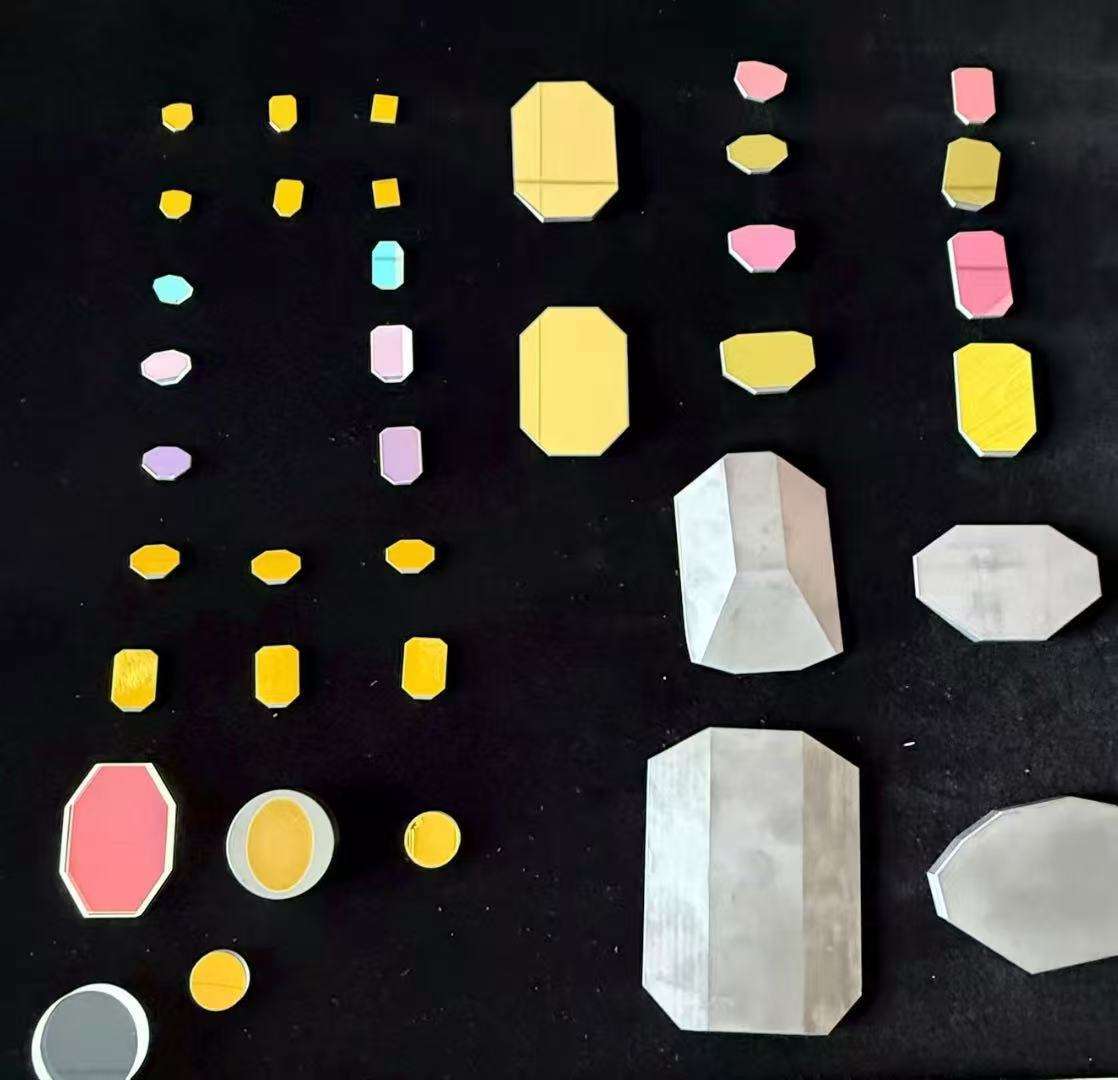

Custom high reflective laser mirror 99% High Reflectivity @532nm & 1064nm For Laser Cutting Scanner



Felix Glass silicon galvanometer mirror is a high-rigidity single-crystal silicon optical reflector dedicated to dual 532nm green laser and 1064nm infrared fiber laser scanning systems. Silicon substrate features ultra-low thermal expansion coefficient, excellent flatness stability under high laser power, avoiding thermal deformation that distorts laser beam during long-time laser cutting operation.



Dual-wavelength high-reflection dielectric coating is deposited on polished silicon surface, achieving over 99% reflectivity at both 532nm and 1064nm, effectively reducing laser energy loss and improving laser processing efficiency. Ultra-precision surface polishing guarantees consistent beam deflection accuracy for high-speed galvanometer scanners.





- Substrate: Single crystal silicon

- Working Wavelengths: 532nm green laser, 1064nm infrared fiber laser

- Reflectivity: R ≥ 99% @532nm & 1064nm

- Coating Type: Multi-layer dielectric HR coating

- Surface Flatness: ≤ λ/10 ..........8nm

- Surface Quality: 20-10 scratch-dig standard

- Shape: Custom square, rectangular outlines matching galvanometer models

- Thickness: Customizable according to galvanometer assembly structure

- Laser Damage Threshold: High resistance for continuous fiber laser cutting load





- Single crystal silicon substrate with ultra-low thermal expansion, no thermal bending under high-power long-duration laser irradiation

- Dual-band HR dielectric coating realizes 99% high reflectivity for both 532nm green and 1064nm infrared laser

- Ultra-flat polished surface ensures stable laser beam positioning precision for high-speed scanning galvanometers

- Low substrate absorption, minimal heat accumulation during laser cutting production

- Fully customizable outline, thickness and coating spectrum to fit different brand galvanometer scanner heads

- Hard dielectric coating with strong adhesion, anti-abrasion and long service life in industrial laser equipment





- Fiber laser cutting machine galvanometer scanning systems

- 1064nm fiber laser marking equipment

- 532nm green laser precision engraving scanners

- Dual-wavelength laser processing integrated equipment

- Industrial high-speed laser scanning optical assemblies





We provide full one-stop silicon optical processing including single crystal silicon blank cutting, ultra-precision surface polishing, dual-wavelength HR dielectric coating, edge deburring, strict reflectivity spectrum testing and surface flatness inspection.

Prototype sampling, small-batch trial production and mass manufacturing are supported. Every silicon galvo mirror is fully tested to meet customer-specified reflectivity, flatness and dimensional requirements before delivery.





Please provide your required mirror dimension, thickness and galvanometer model matching demand. Our optical engineering team supplies customized silicon HR galvo mirror solutions and factory direct quotation.





Silicon has extremely low thermal expansion coefficient, which effectively prevents surface deformation caused by laser heat accumulation and maintains stable scanning precision under continuous high-power laser cutting.

The multi-layer dielectric HR coating achieves reflectivity higher than 99% at both 532nm green laser and 1064nm infrared fiber laser, minimizing laser energy loss during reflection.

Yes, we support custom square and rectangular outlines, adjustable thickness, and special coating parameters for various brand laser scanning galvanometer heads.

It is widely used for 1064nm fiber laser cutting/marking machines, 532nm green laser precision engraving equipment and dual-wavelength integrated laser processing systems.

We offer prototype sampling, small trial batches and large-scale manufacturing, all silicon galvo mirrors pass complete spectral reflectivity and flatness inspection before shipment.
