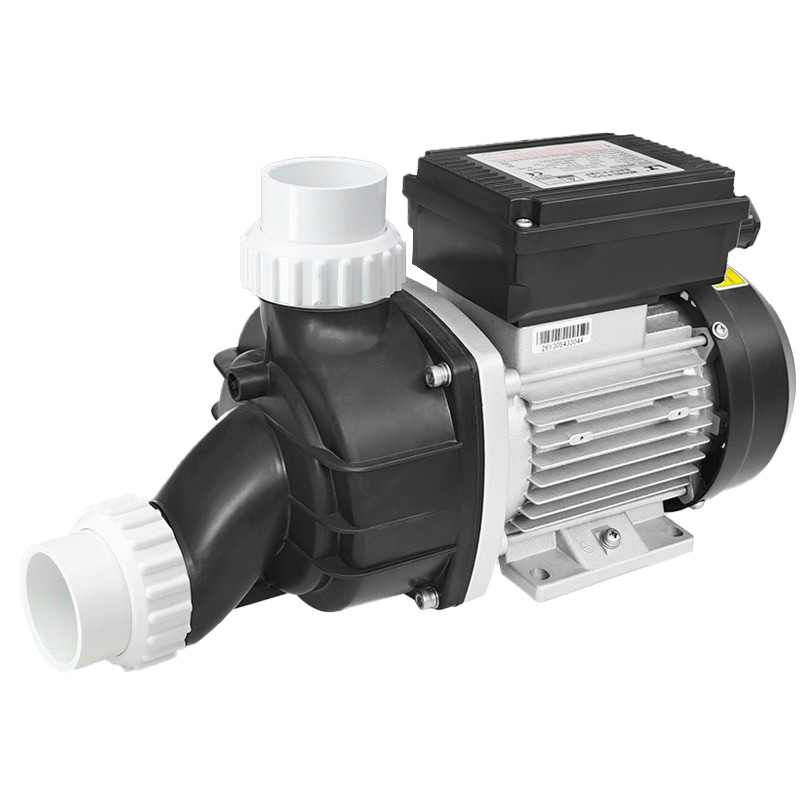

Bathtub Water Pump WPP Series | High-Performance Water Pump for Whirlpool Bathtubs | Specialized Manufacturing and Supply
group nameWater Pumps
-
Min Order50 piece
brand nameHydrorelax Bathroom industry manufacturer
modelWPP75, WP100, WP120, WPP150, WPPE75, WPPE100, WPPE120
payment methodT/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union
-
update timeSun, 07 Dec 2025 10:01:18 GMT
Paramtents
Thermal protector: with thermal protector (single phase motor)
Insulation rating: F
Protection class: IP55
Medium temperature: 5~50℃
Ambient temperature: ≤50℃
Maximum working pressure: ≤50℃
Electric heating tube power: 1000W, 1500W, 2000W, 2500W, 3000W
Certification: CE ; TUV
Packging & Delivery
Size410cm x225cm x255cm
Min Order50 piece
Briefing
0.55KW/0.75HP~1.1KW/1.5HP
315~430 QMAX(L/MIN)
315~430 QMAX(L/MIN)
Detailed
Bathtub Water Pump Parameter
Bathtub Water Pump Performance Curves
Bathtub Water Pump Dimension
Bathtub Water Pump Exploded View
NO. | NAME | |||
1 | Tie-in Nut | |||
2 | Tie | |||
3 | O-Ring | |||
4 | Hexagon Socket Head Cap Screw | |||
5 | Spring Washer | |||
6 | Washer | |||
7 | Pump Casing | |||
8 | O-Ring | |||
9 | Activities Rings | |||
10 | Impeller Assembly | |||
11 | Mechanical seal | |||
12 | Pump Cover | |||
13 | O-Ring | |||
14 | Retaining ring | |||
15 | Motor | |||
Bathtub Water Pump Applications
