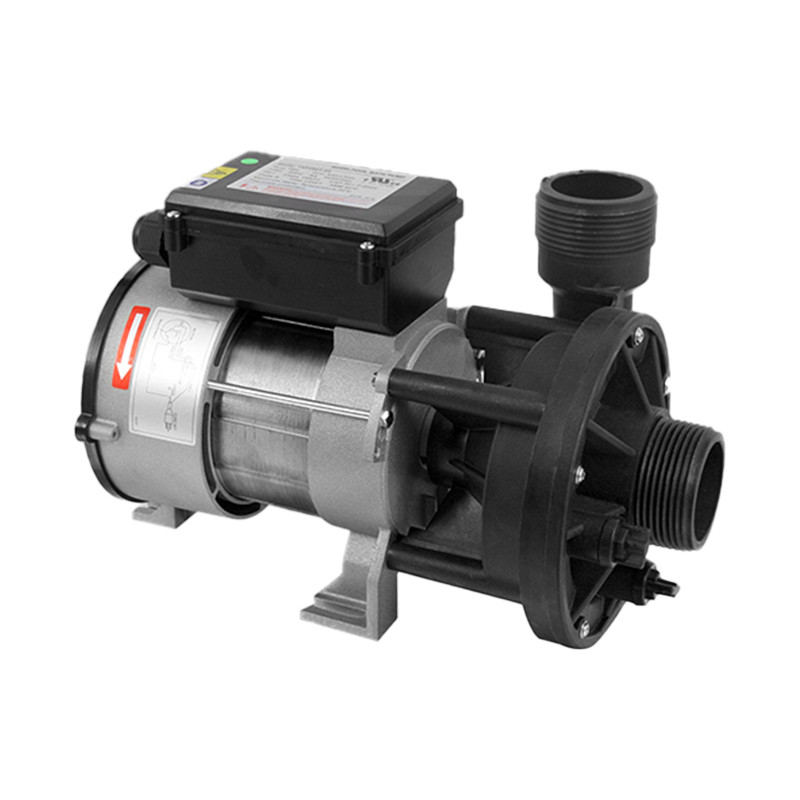

Bathtub Water Pump WBC Series | Wholesale | Certificated Spring Massage Tub Pump for Hydrotherapy
group nameWater Pumps
-
Min Order50 piece
brand nameHydrorelax Bathroom industry manufacturer
modelWBC150
payment methodT/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union
-
update timeSat, 06 Dec 2025 06:51:24 GMT
Paramtents
Thermal protector: with thermal protector( single phase motor)
Insulation rating: F
Medium temperature: 5~50℃
Ambient temperature: ≤40℃
Maximum working pressure: 0.3MPa
Certification: UL Recognised Parts
Packging & Delivery
Size350cm x190cm x270cm
Weight7.7kg / piece
Min Order50 piece
Briefing
1.1KW/1.5HP
420 QMAX(L/MIN)
420 QMAX(L/MIN)
Detailed
Bathtub Water Pump Parameter
|
Model
|
Qmax(l/min)
|
Hmax(m)
|
V/Hz
|
Power(P1) | (Amp) | G·W(kg) | Packing siaze (mm) | |
kW | HP | |||||||
|
WBC150
|
420
|
16.5
|
110-120/60
|
1.1 | 1.5 | 9.0 | 7.7 | 350*190*270 |
Bathtub Water Pump Performance Curve
Bathtub Water Pump Dimension
Bathtub Water Pump Exploded View
NO. | NAME | |||
1 | Tie-in Nut | |||
2 | Tie-in | |||
3 | O-Ring | |||
4 | Cross Recessed Pan Head Screw and Washer Assemblies | |||
5 | Plug | |||
6 | O-Ring | |||
7 | Pump Cover | |||
8 | O-Ring | |||
9 | Activity Ring | |||
10 | Impeller | |||
11 | Mechanical seal | |||
12 | Pump Casing | |||
13 | Motor | |||
Bathtub Water Pump Applications
