7-inch CVBS display
The current body identifies DP210 as a waterproof 7-inch CVBS monitor.

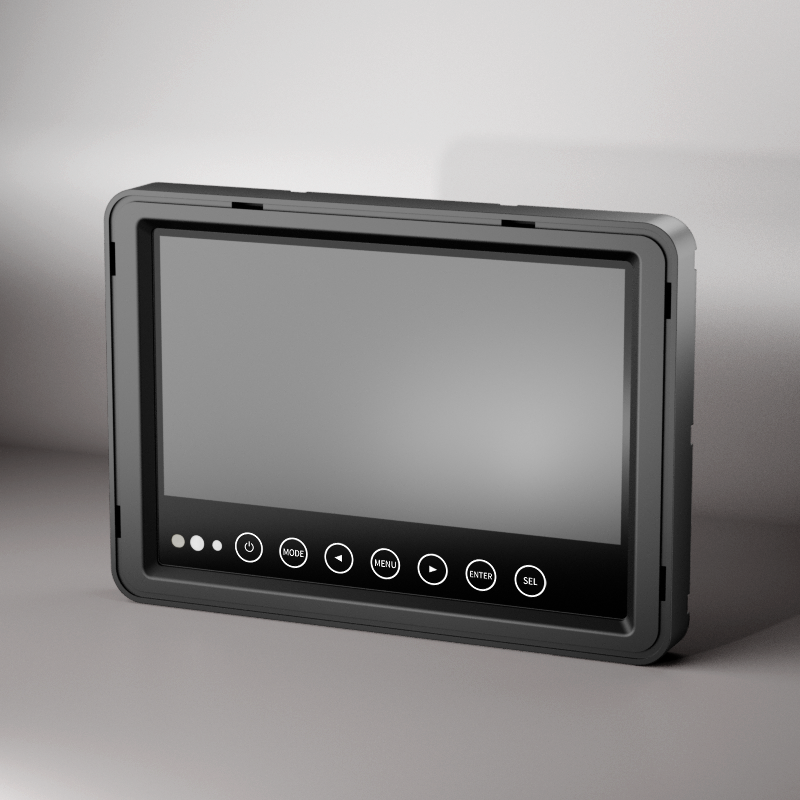

DP210 7-Inch Waterproof Vehicle Monitor
group nameVehicle Monitor
-
Min Order1 piece
brand nameAlwayCare Commercial Fleet Safety Manufacturer
modelDP210
payment methodT/T, PayPal, Westem Union, Cash
-
update timeMon, 17 Aug 2026 07:48:33 GMT
Paramtents
Voltage 12-36V
Definition 480P
Application Suitable for All Vehicles
Application Suitable for All Vehicles
Operating Temperature -20℃ ~ 70℃
Warranty 15 Months
Packging & Delivery
Min Order1 piece
Briefing
DP210 is a 7-inch 480p waterproof CVBS vehicle monitor with a metal housing and 12–36V input for fleet vehicles.
Detailed
DP210 · Vehicle monitor
What is DP210?
DP210 is a 7-inch waterproof CVBS vehicle monitor with 480p definition, a metal housing and 12–36V input for exposed fleet installations.
Buyer overview
Four points to evaluate first
480p definition
The structured record lists 480p rather than an unspecified HD claim.

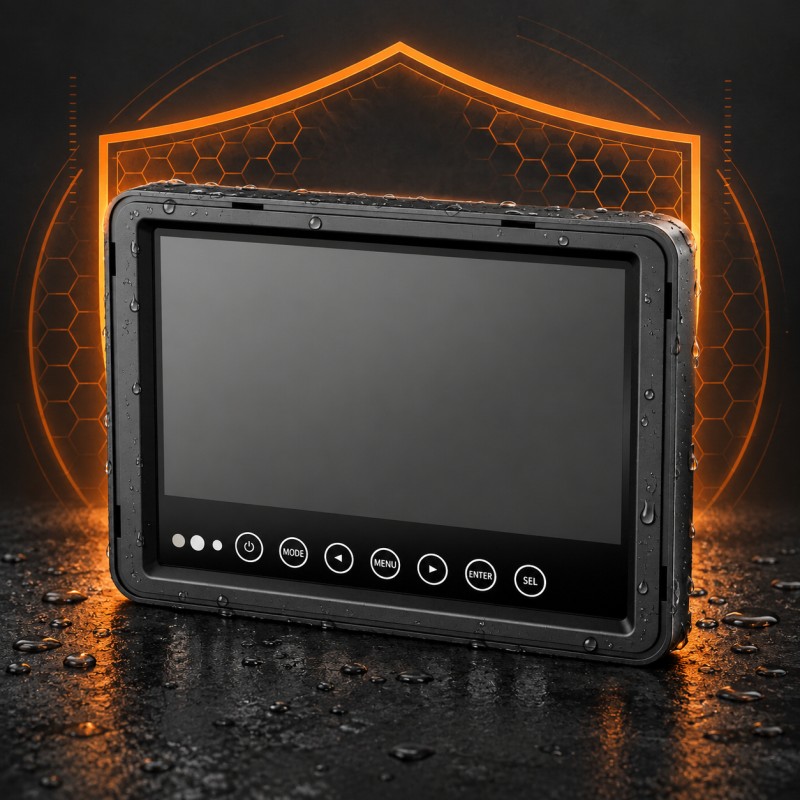

Waterproof construction
The current body describes full-glue waterproof construction and states IP69K.
12–36V metal housing
The structured record lists wide-voltage input and the body lists metal construction.
System fit
Match the display to cameras and recorder
A vehicle monitor must match the camera signal, definition, connector, channel layout, trigger behavior, power supply and mounting position. Confirm whether recording or AI functions are inside the monitor or supplied by another device.
Viewing decision
Define camera count, split-screen layout, screen size, viewing distance and automatic trigger views.
Integration decision
Confirm CVBS, AHD or HDMI compatibility, connector pinout, power range, storage and cable lengths.
Current structured record
Technical specifications
| Voltage | 12-36V |
|---|---|
| Definition | 480P |
| Application | Suitable for All Vehicles |
| Operating Temperature | -20℃ ~ 70℃ |
| Warranty | 15 Months |
Duplicate attribute rows are displayed once. Current structured data is the baseline; older-body conflicts are disclosed below.
Preserved from the original page
Existing Product and Application Views

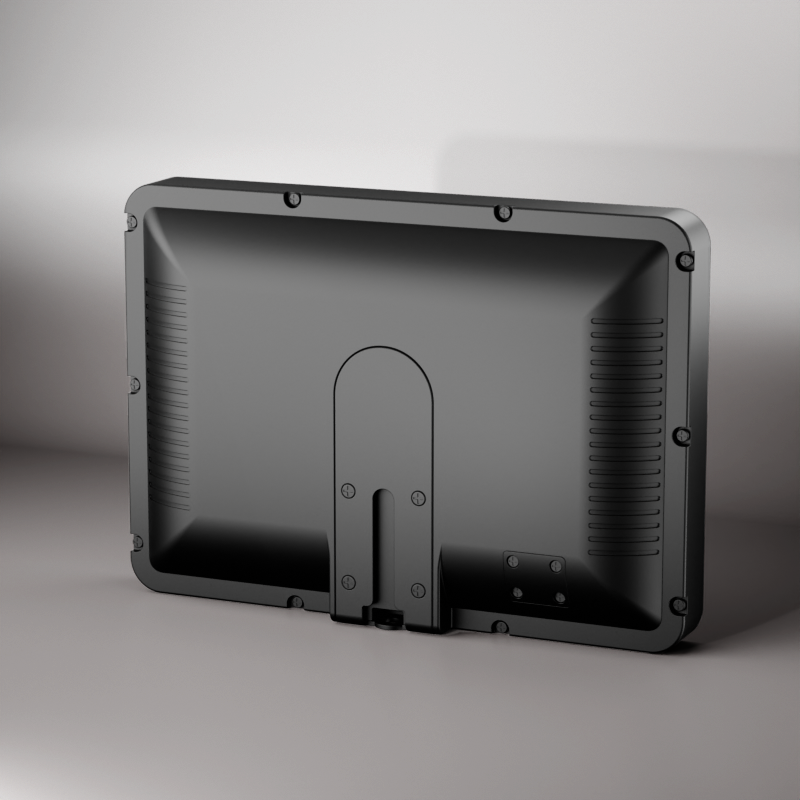

Installation planning
Plan the driver view before installation
Check line of sight, glare, cab vibration, bracket clearance, cable routing and whether the display obstructs mirrors, controls or the road view.
Example applications
Where DP210 may fit
Exterior or exposed cabs
Use after confirming the complete monitor, connector and mounting protection rating.
Trucks and utility vehicles
Display compatible CVBS camera views in demanding fleet environments.
Industrial vehicles
Add a rugged local monitor after vibration, water exposure and signal requirements are reviewed.
Specification and integration boundary
IP69K appears in the current body but not in the structured attributes, so the final enclosure rating requires confirmation. The phrase ‘2 channels Video Output’ is ambiguous and should not be treated as a confirmed two-input specification. Confirm channel direction, connectors, supported cameras, bracket, sealing and test standard.
Buyer questions
DP210 FAQ
What video definition is listed?
The structured attributes list 480p. The page does not present DP210 as an unspecified HD display.
Is DP210 IP69K rated?
The current body says IP69K and full-glue waterproof, while structured attributes do not list an IP rating. Confirm the approved test specification.
How many camera channels does it support?
The body says ‘2 channels Video Output,’ but that wording does not clearly identify inputs or outputs. Confirm the connector and channel diagram.
What input voltage is listed?
The structured record lists 12–36V for commercial-vehicle installations.
What temperature range is listed?
The structured attributes list -20℃ to 70℃. Installation exposure still requires review.
What information is needed before ordering?
Provide camera model and CVBS format, required channel count, vehicle voltage, mounting location, water exposure, connector type and cable length.
Confirm the complete viewing system
Share your cameras, recorder and vehicle requirements
AlwayCare can review signal compatibility, channel layout, display placement, power, storage and cabling.
