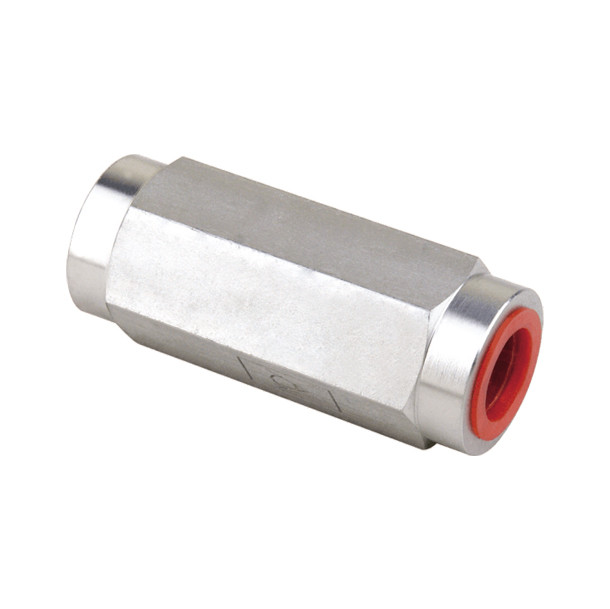

EHRV Series | VU In-Line Check Valve (Steel)

  • group nameFlow Control Valve

  • Min Order1 piece

  • brand nameEH

  • update timeSat, 06 Dec 2025 01:49:25 GMT

Paramtents

  • Interchange MHA RV SERIES

  • Interchange FASTER VU SERIES

  • Interchange STUCCHI VUZ SERIES

  • Interchange GROMELLE R4000 SERIES

  • Interchange GEMELS VU SERIES

  • Interchange HOLMBURY CV SERIES

Packging & Delivery

  • Min Order1 piece

Briefing

This EH series is interchangeable with MHA RV SERIES, FASTER VU SERIES, STUCCHI VUZ SERIES, GROMELLE R4000 SERIES, GEMELS VU SERIES, and HOLMBURY CV SERIES. Steel Product. One-way check valve for in-line use. Suitable for any type of hydraulic system using liquid that is not highly viscous. The standard type is in zinc-plated carbon steel, and it is suitable for non-corrosive mineral-based oils and liquids.

Detailed

EHRV Series

In-Line Check Valve (Steel)

This EH series is interchangeable with MHA RV SERIES, FASTER VU SERIES, STUCCHI VUZ SERIES, GROMELLE R4000 SERIES, GEMELS VU SERIES, and HOLMBURY CV SERIES. Steel Product. One-way check valve for in-line use. Suitable for any type of hydraulic system using liquid that is not highly viscous. The standard type is in zinc-plated carbon steel, and it is suitable for non-corrosive mineral-based oils and liquids.

Dimensions


Other Threads/Fitting Ends Are Available Upon Request
Art. No.
Body Size(Inch)
A(mm)
C(mm)
CH(mm)
T
EHRV14
1/4''
60
18.5
19
1/4"BSPP(NPT)
EHRV38
3/8''
70
23.5
24
3/8"BSPP(NPT)
EHRV12
1/2''
77
29.5
30
1/2"BSPP(NPT)
EHRV34
3/4''
90
35.5
36
3/4"BSPP(NPT)
EHRV10
1''
106
44.5
45
1"BSPP(NPT)
EHRV114
1-1/4''
125
54.5
55
1-1/4"BSPP(NPT)
EHRV112
1-1/2''
140
64.5
65
1-1/2"BSPP(NPT)
EHRV20
2''
160
74.5
75
2"BSPP(NPT)

Technical Specifications

Dash Size
Body Size (Inch)
Max. Work Pressure(bar)
Standard Crack Pressure
(bar)
Customized Crack Pressure(bar)
04
1/4''
700
0.35-0.5
Up to 6.5
06
3/8''
700
0.35-0.5
Up to 6.5
08
1/2''
500
0.35-0.5
Up to 6.5
12
3/4''
500
0.35-0.5
Up to 6.5
16
1''
500
0.35-0.5
Up to 6.5
20
1-1/4''
400
0.35-0.5
Up to 6.5
24
1-1/2''
320
0.35-0.5
Up to 6.5
32
2''
320
0.35-0.5
Up to 6.5
Material:
Steel
Seals:
NBR, Seals can be customized to meet your special work condition/media
Working Temperatures:
-25 °C to 125 °C, , Customizable
Surface Treatment:
MATE 500 (CRIII), Black Passivation, MATE 1000 (ZnNi)
Specifications:
Series Interchange:
MHA RV SERIES, FASTER VU SERIES, STUCCHI VUZ SERIES, GROMELLE R4000 SERIES, GEMELS VU SERIES
Valve Type:
/
Connection:
Thread
Disconnection:
Thread
Connection Under Pressure:
Not Allowed

Pressure Drop

Pressure Drop
