EHRVSS Series | RV In-Line Check Valve (Stainless Steel)
group nameFlow Control Valve
-
Min Order1 piece
brand nameEH
-
update timeSat, 06 Dec 2025 01:26:36 GMT
Paramtents
Interchange MHA RV SERIES
Interchange PARKER 339 SERIES
Interchange GROMELLE 654-Z SERIES
Packging & Delivery
Min Order1 piece
Briefing
This EH series is interchangeable with MHA RV SERIES, PARKER 339 SERIES, and GROMELLE 654-Z SERIES. Stainless Steel Product. One-way stainless steel 316 check valve for in-line use. Suitable for any type of hydraulic applications. This series check valve allows flow in one direction and blocks it in the opposite direction. The flow is only allowed once a pre-set cracking pressure is reached. Customized cracking pressure is available. This series is widely used in corrosive environments: marine, oil and gas, chemical, pharmaceutical, and nuclear.
Detailed

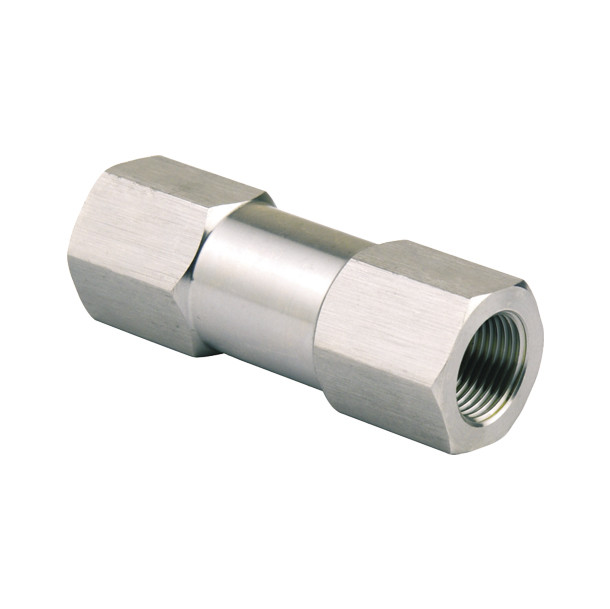

EHRVSS Series
In-Line Check Valve (Stainless Steel)
This EH series is interchangeable with MHA RV SERIES, PARKER 339 SERIES, and GROMELLE 654-Z SERIES. Stainless Steel Product. One-way stainless steel 316 check valve for in-line use. Suitable for any type of hydraulic applications. This series check valve allows flow in one direction and blocks it in the opposite direction. The flow is only allowed once a pre-set cracking pressure is reached. Customized cracking pressure is available. This series is widely used in corrosive environments: marine, oil and gas, chemical, pharmaceutical, and nuclear.
Dimensions
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size(Inch) | A(mm) | CH(mm) | T |
| EHRVSS14 | 1/4'' | 60 | 19 | 1/4"BSPP(NPT) |
| EHRVSS38 | 3/8'' | 70 | 24 | 3/8"BSPP(NPT) |
EHRVSS12 | 1/2'' | 87 | 30 | 1/2"BSPP(NPT) |
EHRVSS34 | 3/4'' | 95 | 36 | 3/4"BSPP(NPT) |
EHRVSS10 | 1'' | 125 | 41 | 1"BSPP(NPT) |
EHRVSS114 | 1-1/4'' | 125 | 55 | 1-1/4"BSPP(NPT) |
EHRVSS112 | 1-1/2'' | 140 | 65 | 1-1/2"BSPP(NPT) |
EHRVSS20 | 2'' | 160 | 75 | 2"BSPP(NPT) |
